6.4 CLEANING THE RADIATOR AND INTERCOOLER
Inhalation of dust can seriously
damage your health.
Take the necessary precautions,
such as wearing goggles or a
facemask.
Cleaning the protective screen
1. Remove the lower grille.
2. Unscrew the protective screen attachment
bolts.
3. Remove the protective screen.
4. Clean the protective screen with a hard
brush and blow-clean with compressed air.
Cleaning the radiator/intercooler element
Note:
With the aid of a simple tool, the radiator and the
intercooler can be blow-cleaned.
This tool can be made in your own workshop. It
cannot be obtained from DAF.

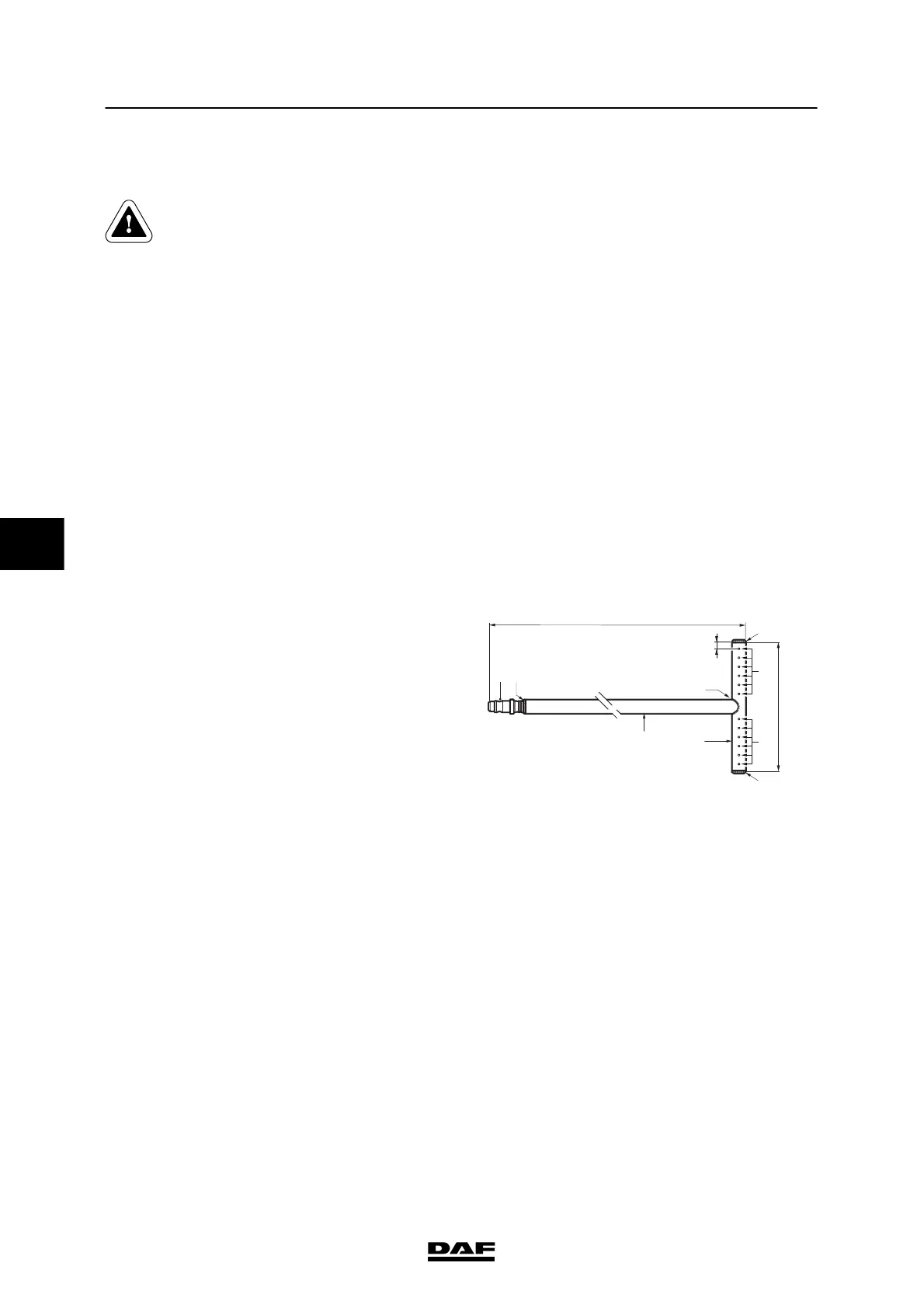

Key to drawing:
1. Solder up
2. Solder
3. Quick-release coupling for air hose
4. Steel pipe, Ø 10 mm
5. 6 x Ø 1.5 mm, with a centre-to-centre
distance between the holes of 7 mm, drilled
on one side.
100mm
5mm
2
1150mm
2
4
3
5
5
4
1
1
M2108
5
200424
