95XF series Draining and filling
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
5-15
5.8 FILLING THE GREASE SUPPLY OF THE AUTOMATIC LUBRICATION
SYSTEM

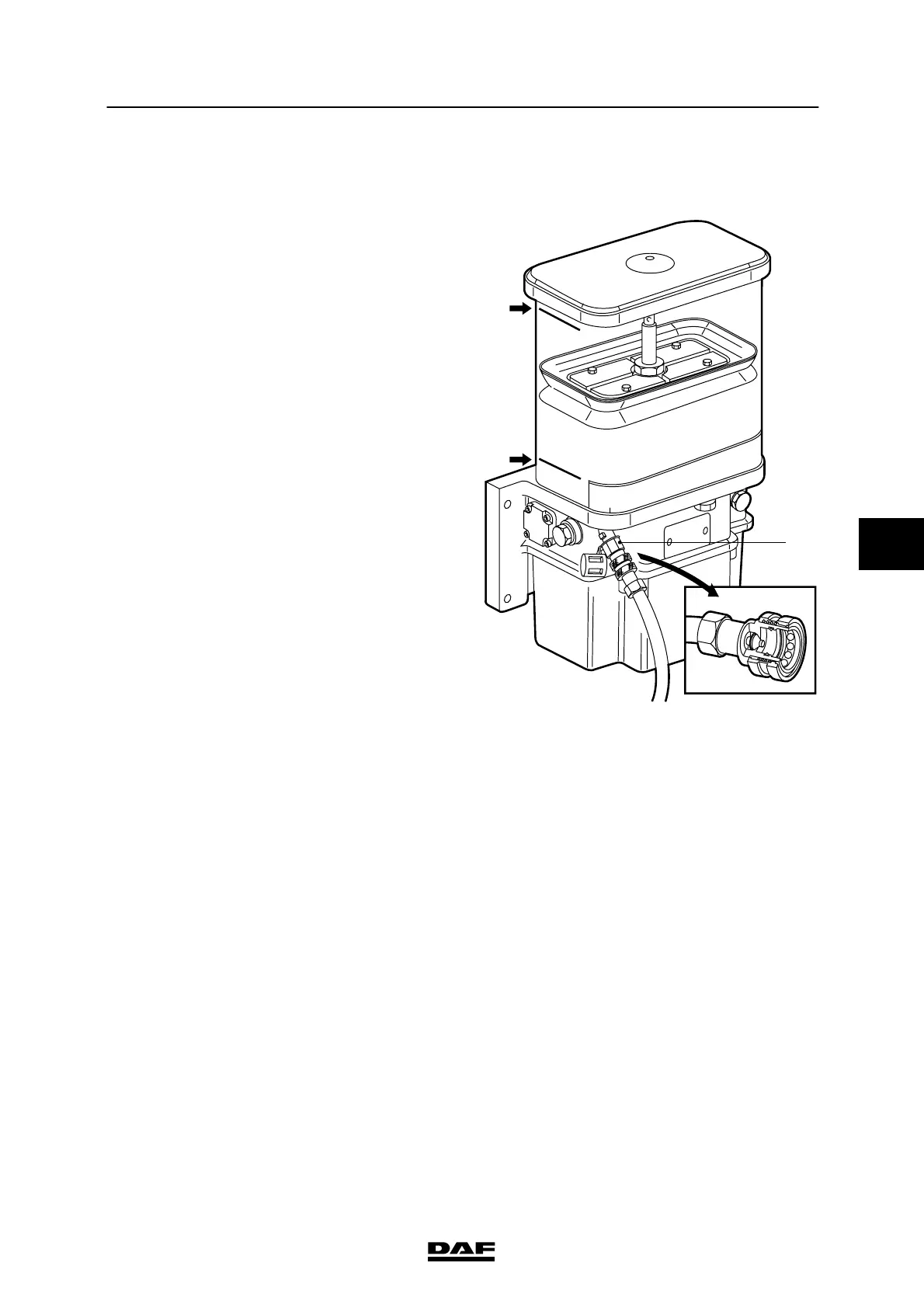

1. Remove the dust cover from the filler
coupling (1).
2. Connect the filler line to the filler coupling.
Ensure that the filler line is completely filled
with grease so that no air bubbles can get
into the system.
3. Fill the reservoir to the specified maximum
level.
Note:
When filling the reservoir, the air above the
follower piston will escape.
This air will flow downward through an
opening in the piston tube and escape from
the pump through the right--angled coupling.
A small amount of grease will usually
escape from this coupling during bleeding.
4. Connect the filler line to the filler coupling.
W 9 07 004
1
5
200424
