DAF 95XF - Inspection and Adjustment, C-Brake Play

95XF series Inspection and adjustment
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
3-13
3.10 INSPECTION AND ADJUSTMENT, C-BRAKE PLAY
VF engine
Note:
- The C-brake must be adjusted when the
engine is cold ( <60°C).
- Use a dial gauge for C-brake adjustments.
- Each cylinder has three rockers:
1. The rocker for the exhaust valves (1)
2. The rocker for the unit injector (2)
3. The rocker for the inlet valves (3).

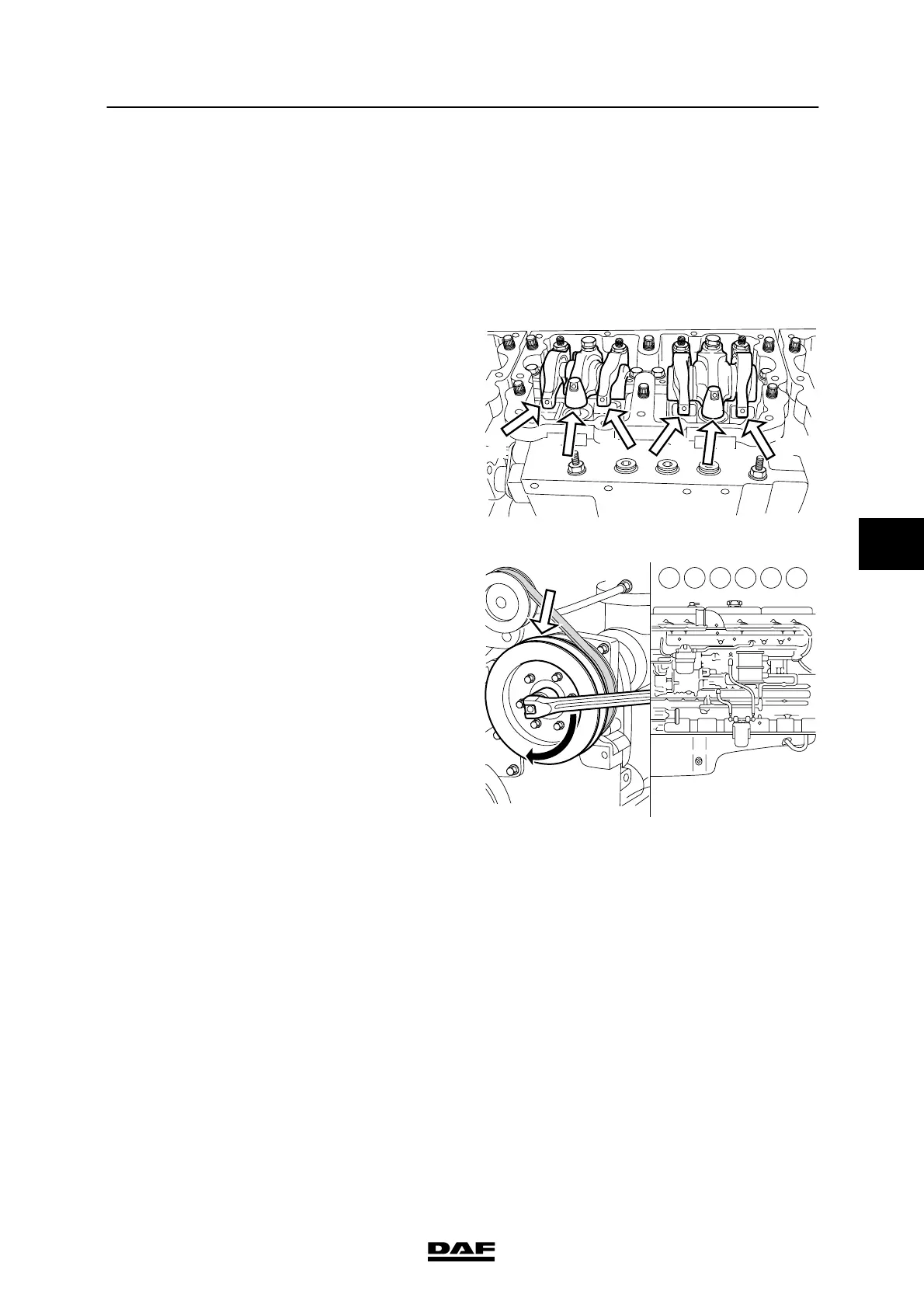

M2146
1
2 3 3 2 1
- For a correct setting of the C-brake, use the
set marks shown on the accessory drive
pulley (1) for the air-conditioning
compressor and the water pump.
- The direction of rotation of the crankshaft is
clockwise, as seen from the front of the
engine.
- Cylinder 1 is on the timing-gear end, and
cylinder 6 on the flywheel end.
- The injection sequence is 1-5-3-6-2-4.
M2147
1
1 2 3 4 5 6
5
