DAF 95XF - Draining and Filling, Gearbox

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Draining and filling 95XF series
5-12
5.6 DRAINING AND FILLING, GEARBOX
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
Gearbox ZF 16S-181/221
Draining the gearbox
1. Position the vehicle on a level surface.
2. Drain the gearbox at operating temperature.
3. Remove drain plugs B, C and D and the
level check/filler plug (A) and drain the oil.
Filling the gearbox
1. Clean drain plugs (B), (C) and (D) and
tighten them to the specified torque. See
”Technical data”.
2. Fill the oil through the level check/filling
opening (A) until the oil reaches the rim of
the f illing opening.
3. Fit the level check/filler plug (A), tightening it
to the specified torque. See ”Technical
data”.

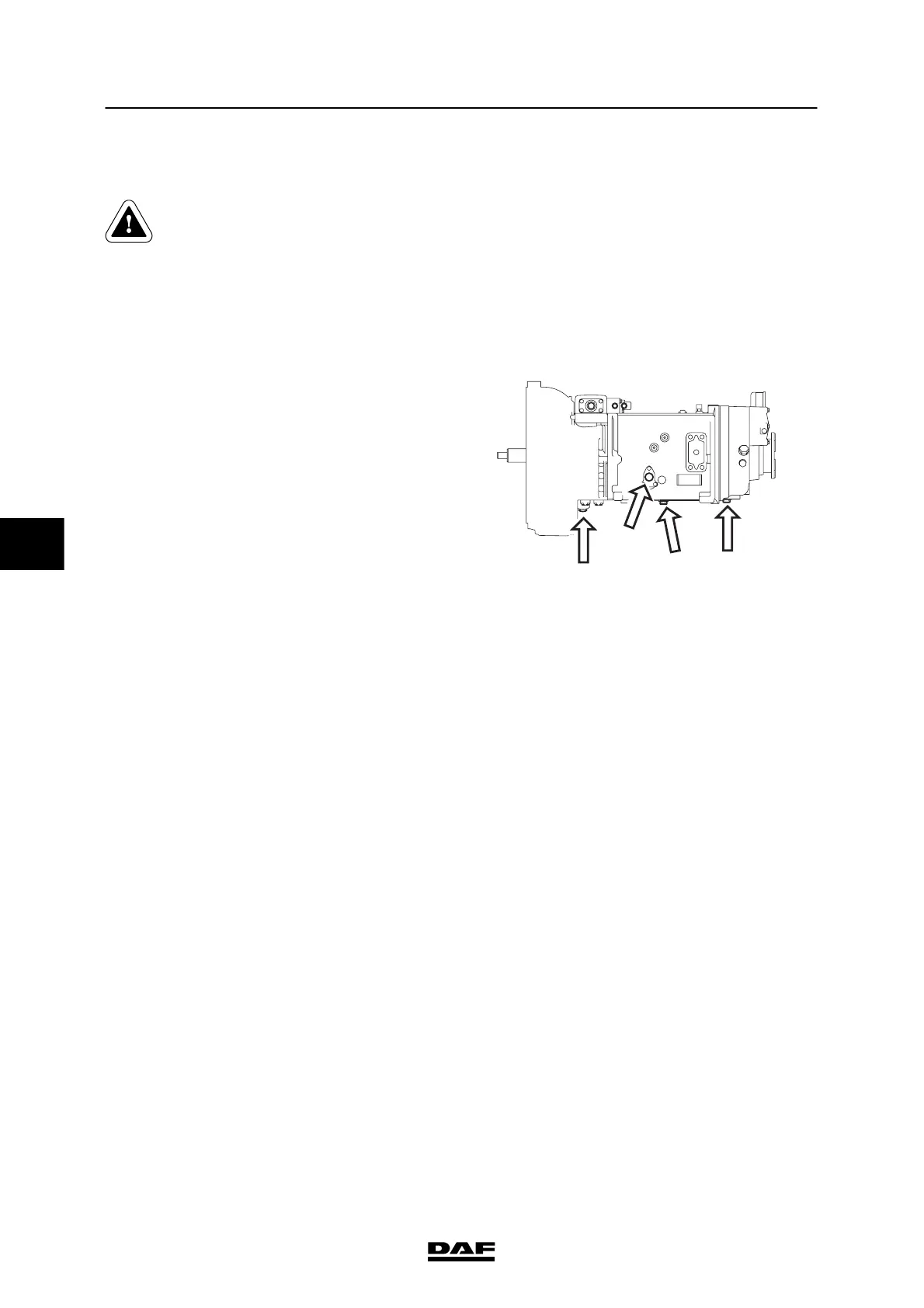

M3023
D
A
B
C
5
 200424
