95XF series Removal and installation
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
4-1
4. REMOVAL AND INSTALLATION

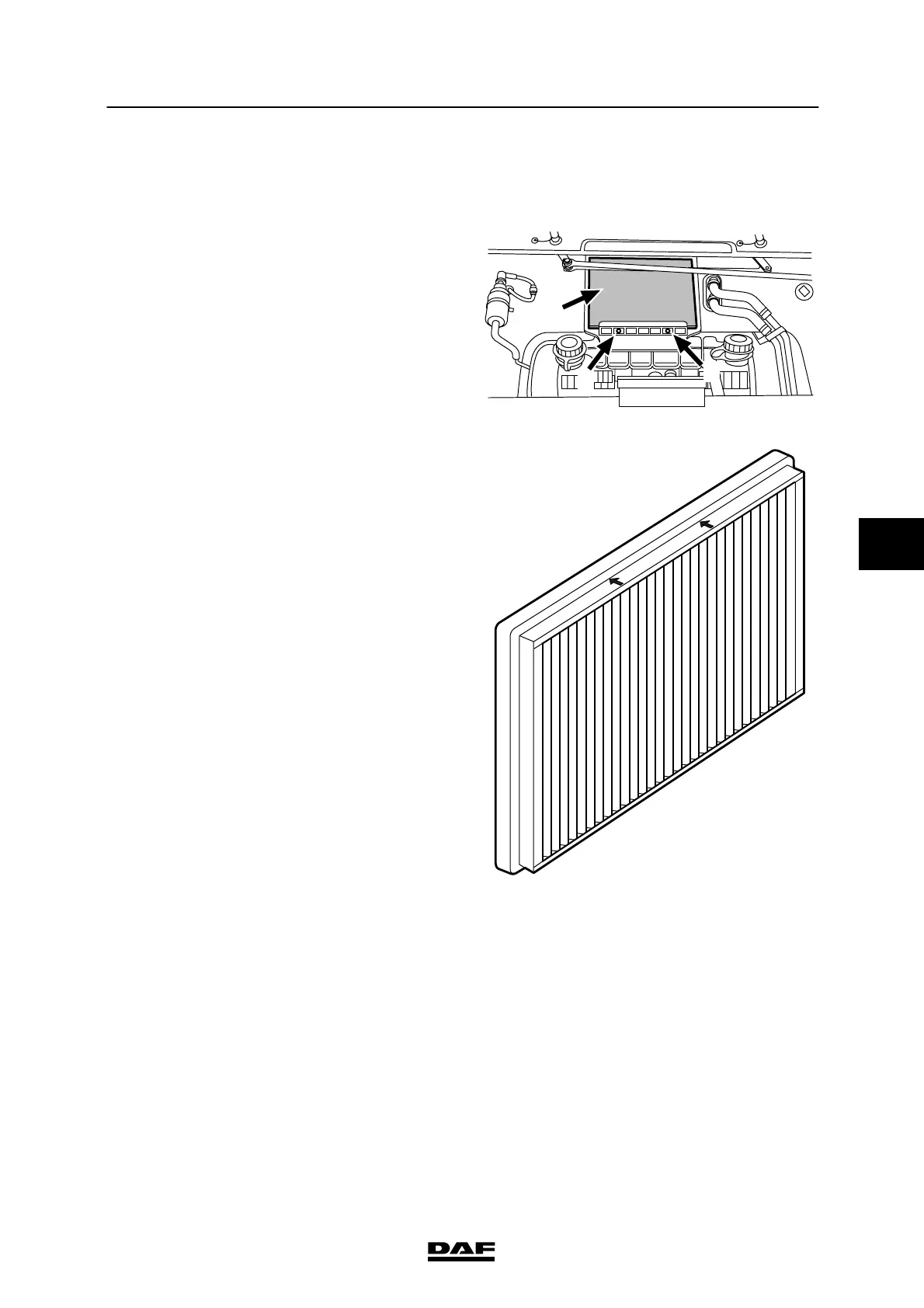

4.1 REMOVAL AND INSTALLATION, INTERIOR FILTER ELEMENT
Removing the interior filter element
1. Open the grille.
2. Remove the attachment bolts (1) at the
bottom of t he filter.
3. Remove the filter (2).
4. If required, clean the filter, see chapter
“Cleaning”.
In case of excessive fouling or damage, the
filter should be replaced.
Installing the interior filter element
1. Fit the f ilter (2) in the correct position.
The arrows on the filter indicate the air flow
direction.
2. Insert the attachment bolts (1).
2
1
1
K100355
K100386
5
200424
