Front Panel and Rear Panel 3
2 Front Panel and Rear Panel
NOTE
The following front panel and rear panel figures are for reference only. The actual product shall prevail.
2.1 Front Panel
2.1.1 NVR41/41-P/41-W/21-S2/21-P-S2/21-8P-S2/41-4KS2/41-P-4KS2/41-8P-4KS2/21-4
KS2/21-P-4KS2/21-8P-4KS2 Series

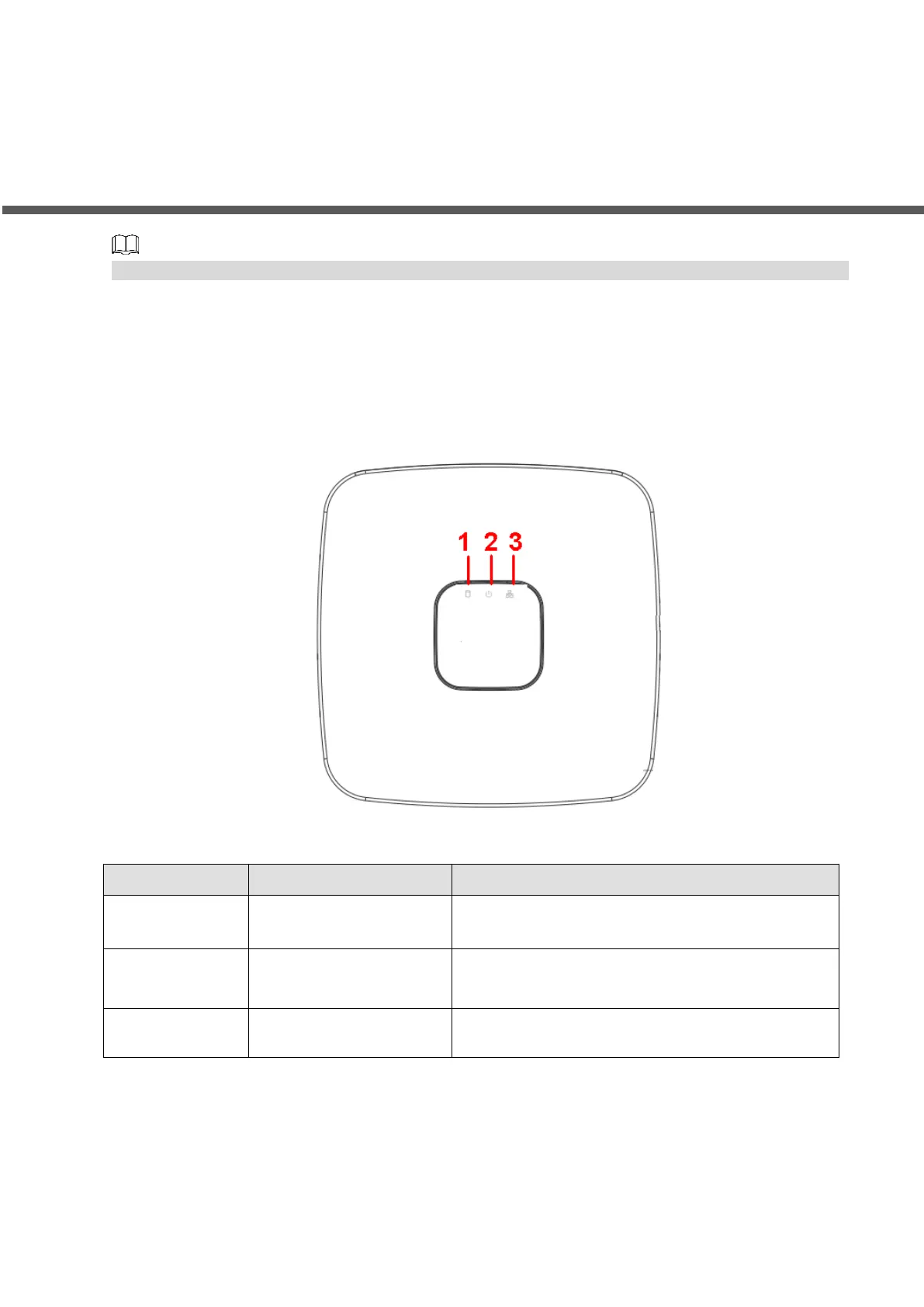

The front panel is shown as in Figure 2-1.
Figure 2-1
Table 2-1
SN
Name
Function
1
HDD status indictor light
The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2.1.2 NVR41H/41H-P/41H-8P Series
The front panel is shown as in Figure 2-2.
