Dahua DHI-NVR5208-4KS2 User Manual

Front Panel and Rear Panel 13
Icon
Name
Function
USB port
To connect USB storage device, USB mouse.
Remote control
indicator light
ACT
Remote control indicator light.
Status indicator
light
Status
If there is Fn indicator light, current status indicator
light is null.
Power indicator
light
PWR
Power indicator light.
Channel indictor
light
1-32
For 4/8/16-channel series product.
The corresponding channel light becomes on when
system is recording.
For 32/64-channel series product:
When the light flashes slowly, it means the
corresponding channel of 1-16 channel is
recording now (Such as channel 1).
When the light flashes fast, it means the
corresponding channel of 17-32 channel is
recording now (Such as channel 17)
When the light becomes on, It means the
corresponding 2 channels are recoding now (Such
as channel 1 and channel 17.).
The channel indictor light here does not show
the status of the 33-64-channel.
IR Receiver
IR
It is to receive the signal from the remote control.
2.1.10 NVR42V-8P Series

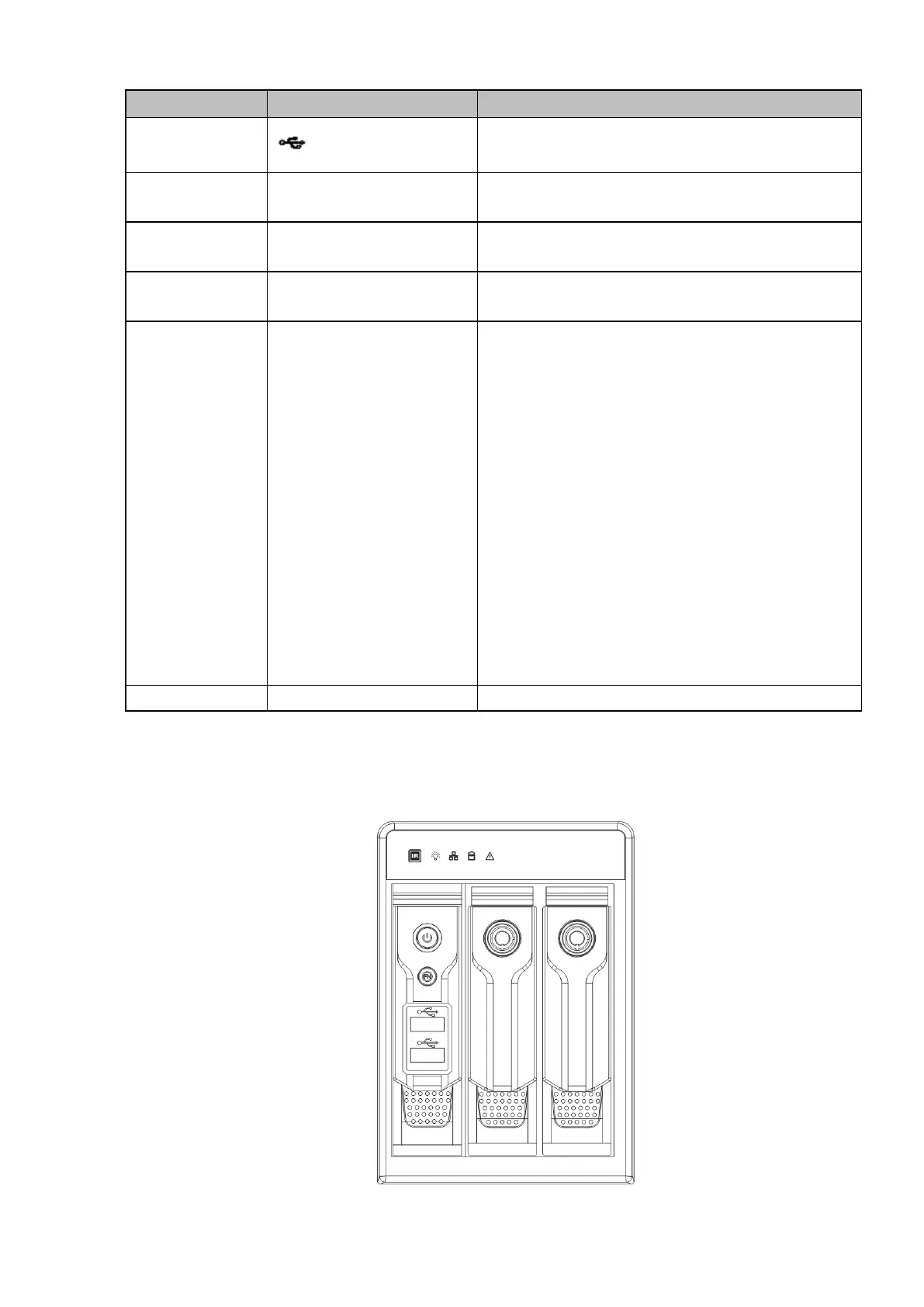

The front panel is shown as below. See Figure 2-12.
Figure 2-12
