Device Installation 66
Figure 3-5
3.6.6 NVR42N Series

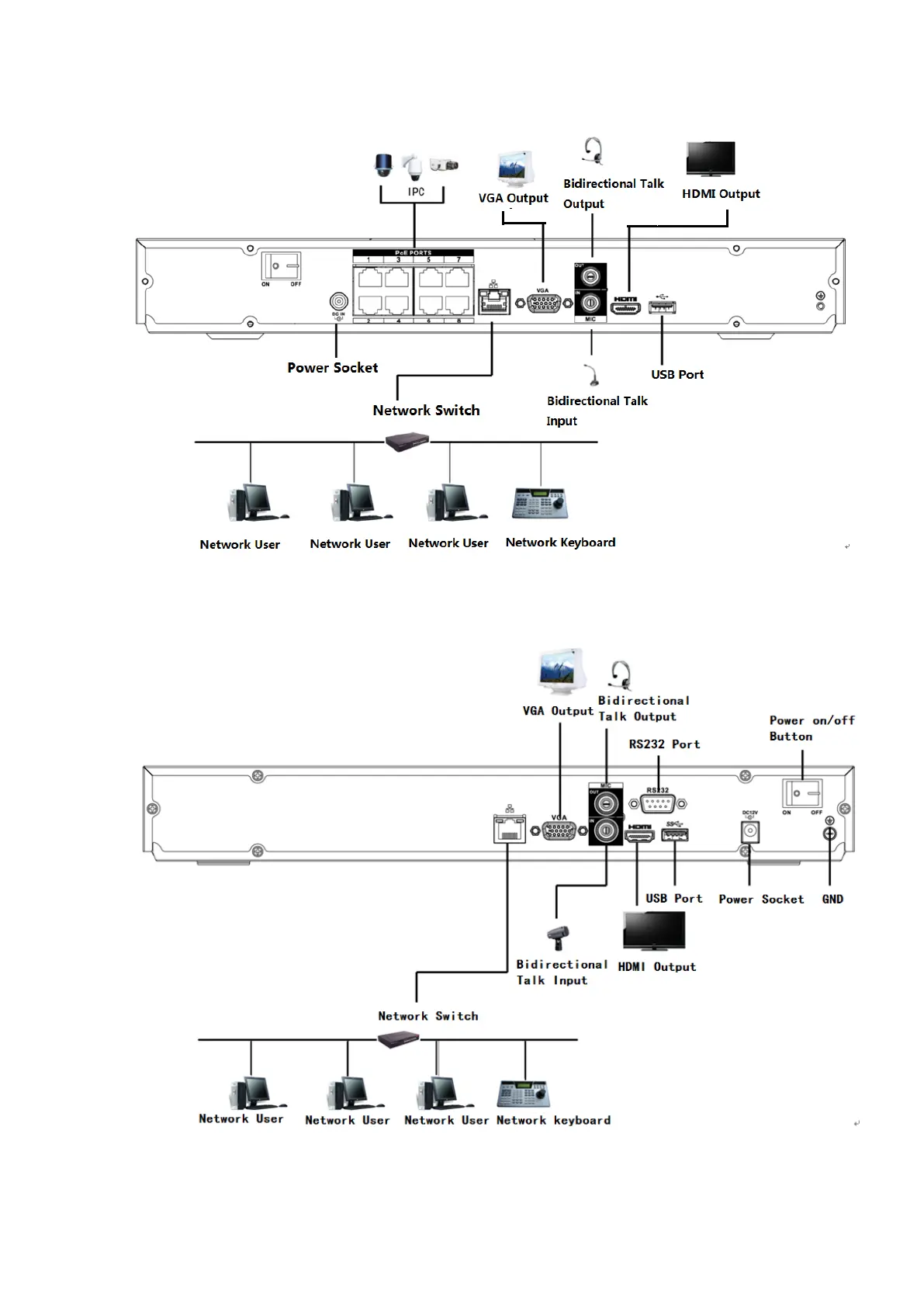

Please refer to Figure 3-6 for connection sample.
Figure 3-6
3.6.7 NVR42/42-P/42-8P/42-16P/52-4KS2/52-8P-4KS2/52-16P-4KS2/5224-24P-4KS2/52
-8P-4KS2E/52-16P-4KS2E Series
Please refer to Figure 3-7 for connection sample.
