Dahua DHI-NVR5208-4KS2 User Manual

Front Panel and Rear Panel 47

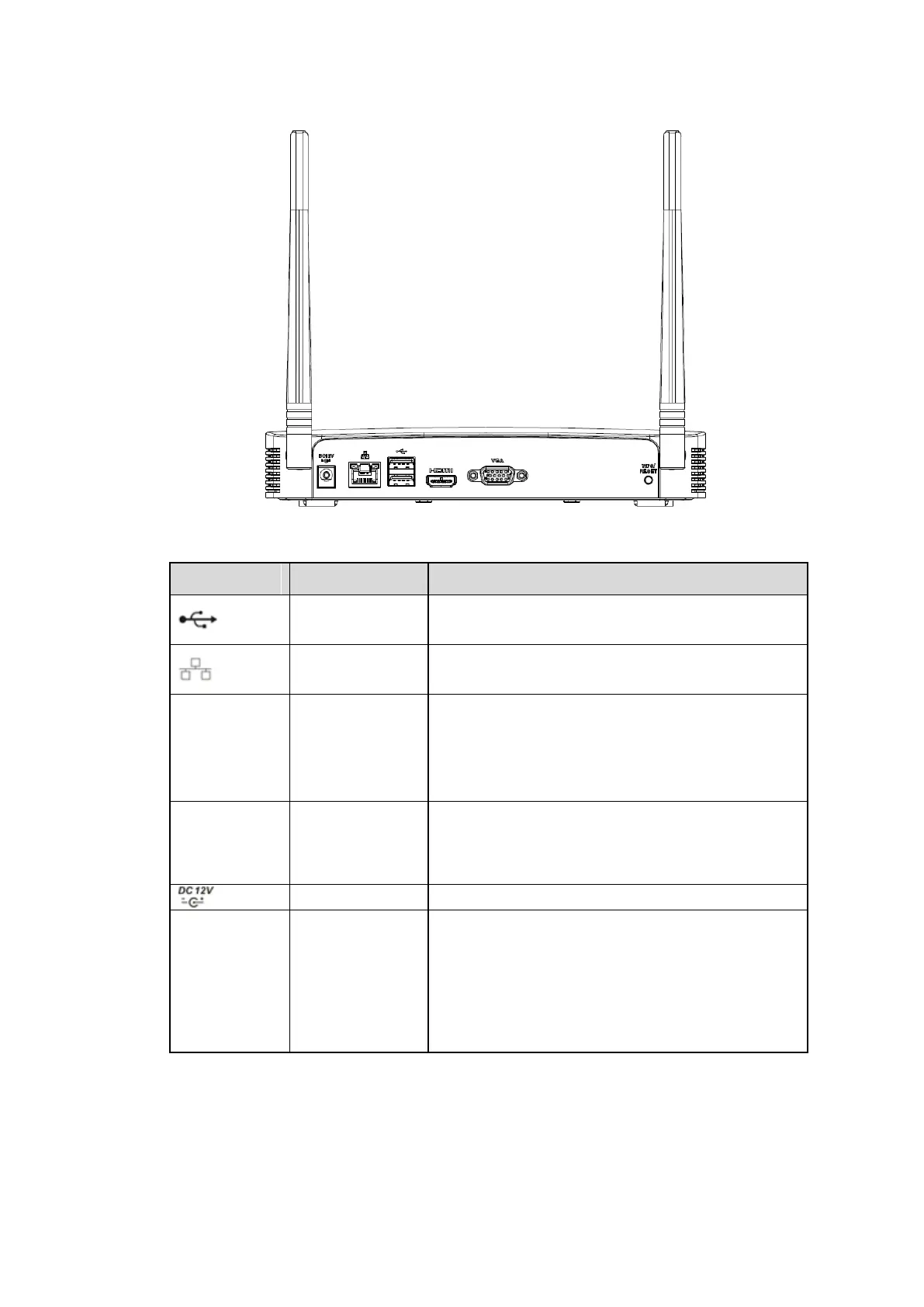

Figure 2-67
Table 2-30
Port Name
Connection
Function
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
Network port
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Definition
Media Interface
High definition audio and video signal output port.
It transmits uncompressed high definition video
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
VGA
VGA video
output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view analog
video.
Power input port
Input DC 12V/2A.
WPS/RESET
Reset/WPS
function
Device Wi-Fi reset and WPS function button:
 Hold down this button for 5 seconds and
above to restore Wi-Fi AP to defaults.
 Press this button for less than 2 seconds, and
then press the WPS button of Wi-Fi IPC, the
device and Wi-Fi IPC can be connected.
2.2.19 NVR21HS-W-4KS2 Series
The rear panel is shown as below. See Figure 2-68.
