Device Installation 59

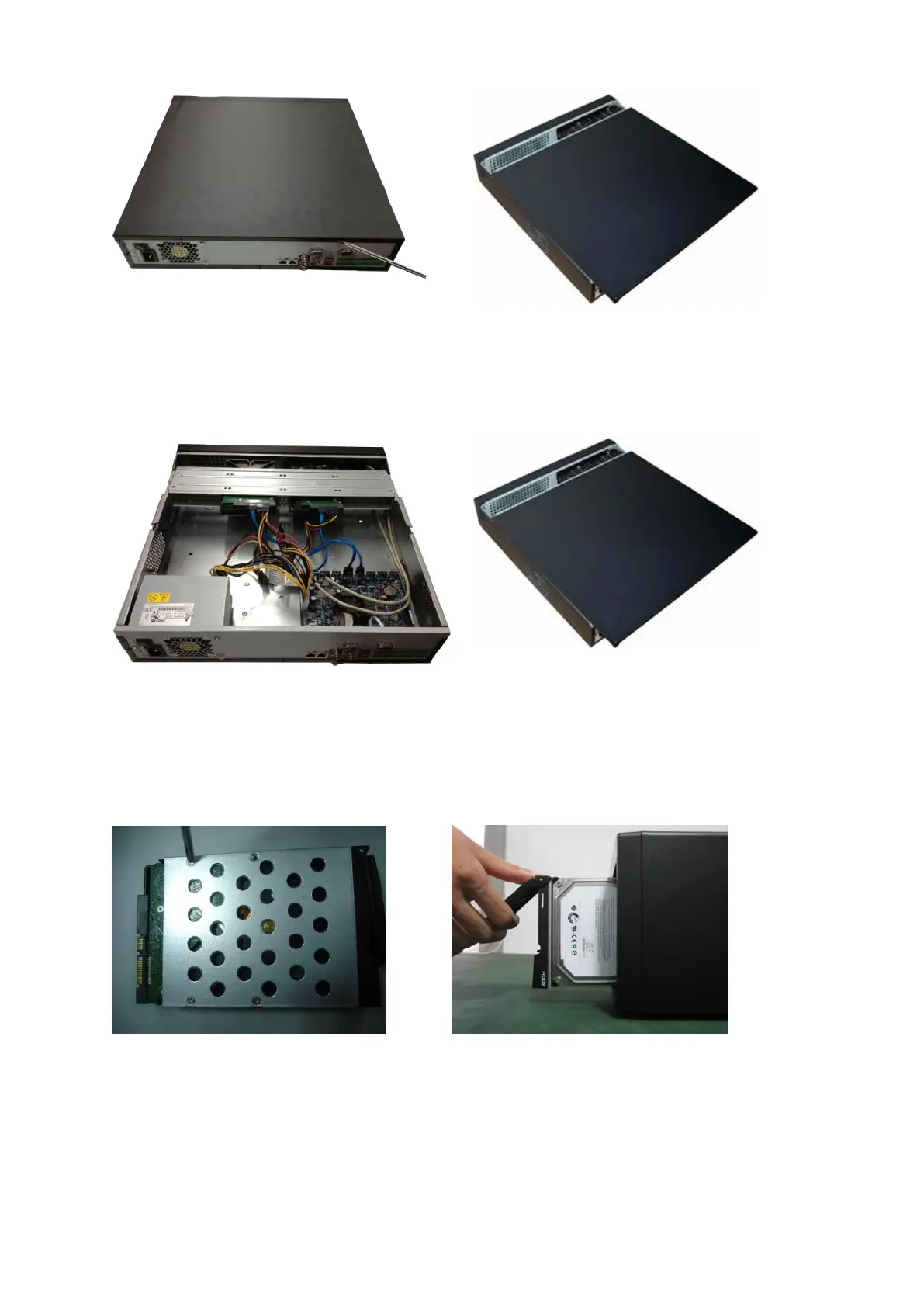

① Use the screwdriver to loose the screws of
the rear panel and then remove the front
cover.
② Put the HDD to the HDD bracket in the
chassis and then line up the four
screws to the four holes in the HDD.
Use the screwdriver to fix the screws
firmly to secure HDD on the HDD
bracket
③ Connect to the HDD data cable to the main board
and the HDD port respectively. Loosen the power
cable of the chassis and connect another end of the
power cable to the HDD port.
④ After connect the cable, put the front cover
back to the device and then fix screws of the
rear panel.
3.4.6 NVR42V-8P Series
① Use 4 screws to secure the HDD
② Put the HDD to the HDD box at the front.
