Front Panel and Rear Panel 18
Port Name
Connection
Function
PoE PORT
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
Wireless AP
Support wireless hotspot function. Use Wi-Fi to
connect to the network camera when there is a
hotspot.
For 41-W series only.
2.2.2 NVR21-S2/21-P-S2/21-8P-S2/21-4KS2/21-P-4KS2/21-8P-4KS2 Series

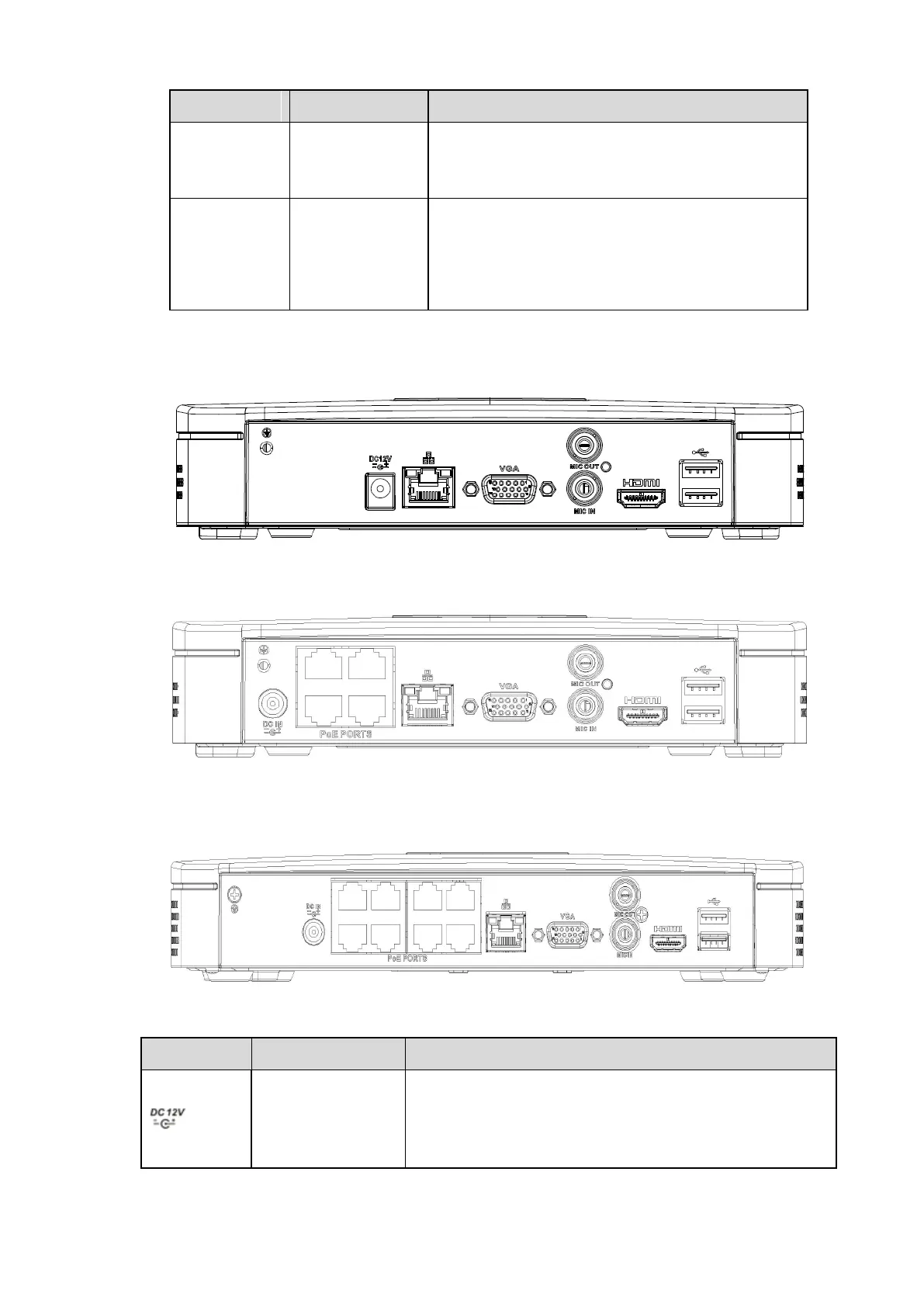

The NVR21-S2/21-4KS2 is shown as in Figure 2-19.
Figure 2-19
The NVR21-P-S2/21-P-4KS2 is shown as in Figure 2-20.
Figure 2-20
The NVR21-8P-S2/21-8P-4KS2 is shown as in Figure 2-21.
Figure 2-21
Table 2-14
Port Name
Connection
Function
Power input port
Power socket
 For NVR21-S2/21-4KS2, input DC 12V/2A.
 For NVR21-P-S2/21-P-4KS2,input DC 48V/1.25A.
 For NVR21-8P-S2/21-8P-4KS2,input DC 48V/2A.
