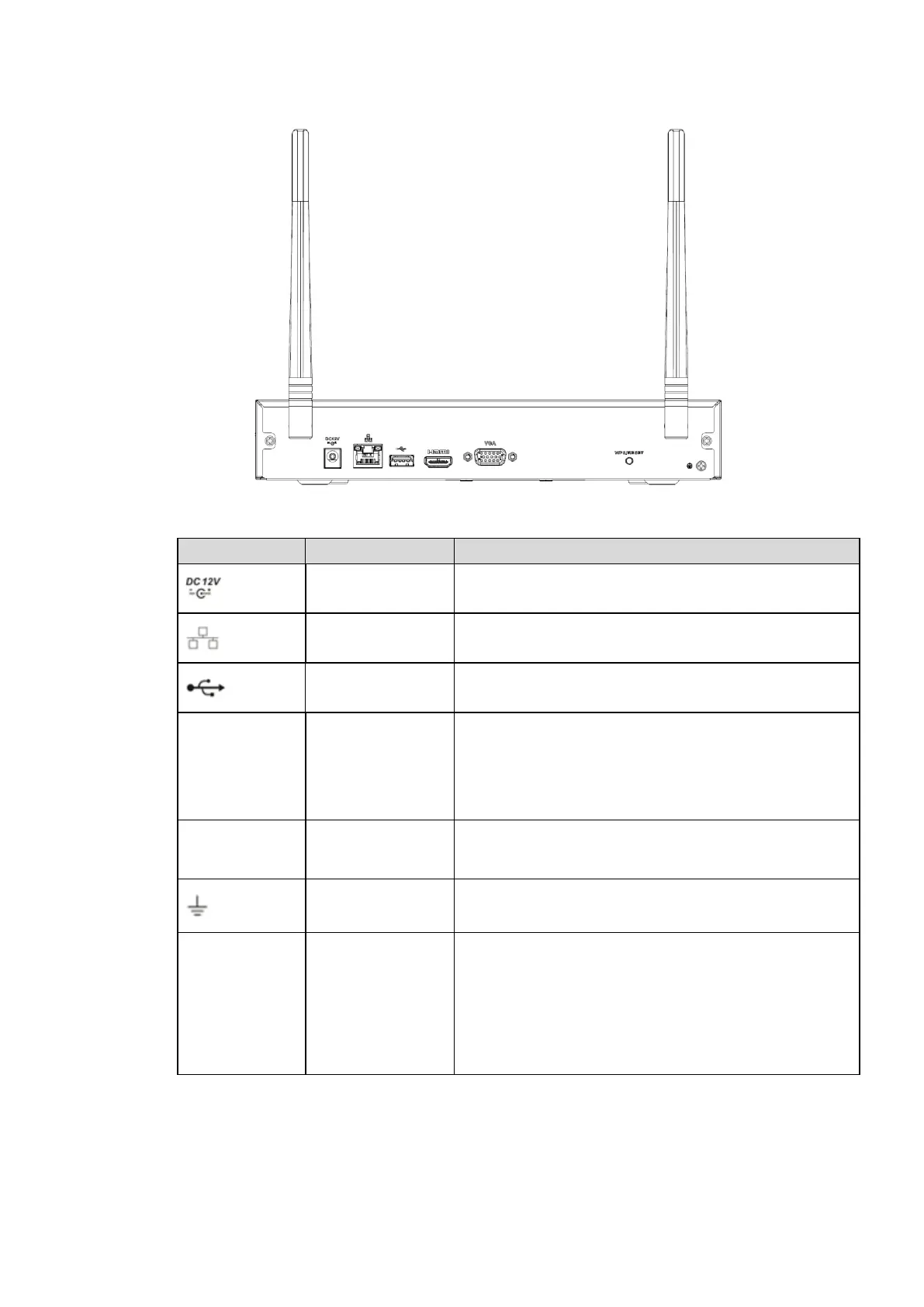

Front Panel and Rear Panel 48
Figure 2-68
Table 2-31
Power socket. Input DC12V/2A.
10M/100Mbps self-adaptive Ethernet port. Connect to
the network cable.
USB2.0 port. Connect to mouse, USB storage device,
and etc.
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
Device Wi-Fi reset and WPS function button:
Hold down this button for 5 seconds and above to
restore Wi-Fi AP to defaults.
Press this button for less than 2 seconds, and
then press the WPS button of Wi-Fi IPC, the
device and Wi-Fi IPC can be connected.
2.3 Alarm Connection
2.3.1 Alarm Port
The alarm port is shown as below. See Figure 2-69. The following figure for reference only.
