Dahua DHI-NVR5208-4KS2 User Manual

Front Panel and Rear Panel 9
Table 2-7
Icon
Name
Function
STATUS
Status indicator light
The blue light is on when the device is malfunction.
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.
USB2.0 port
Connect to peripheral USB 2.0 storage device,
mouse, burner and etc.
2.1.8 NVR44/44-8P/44-16P Series

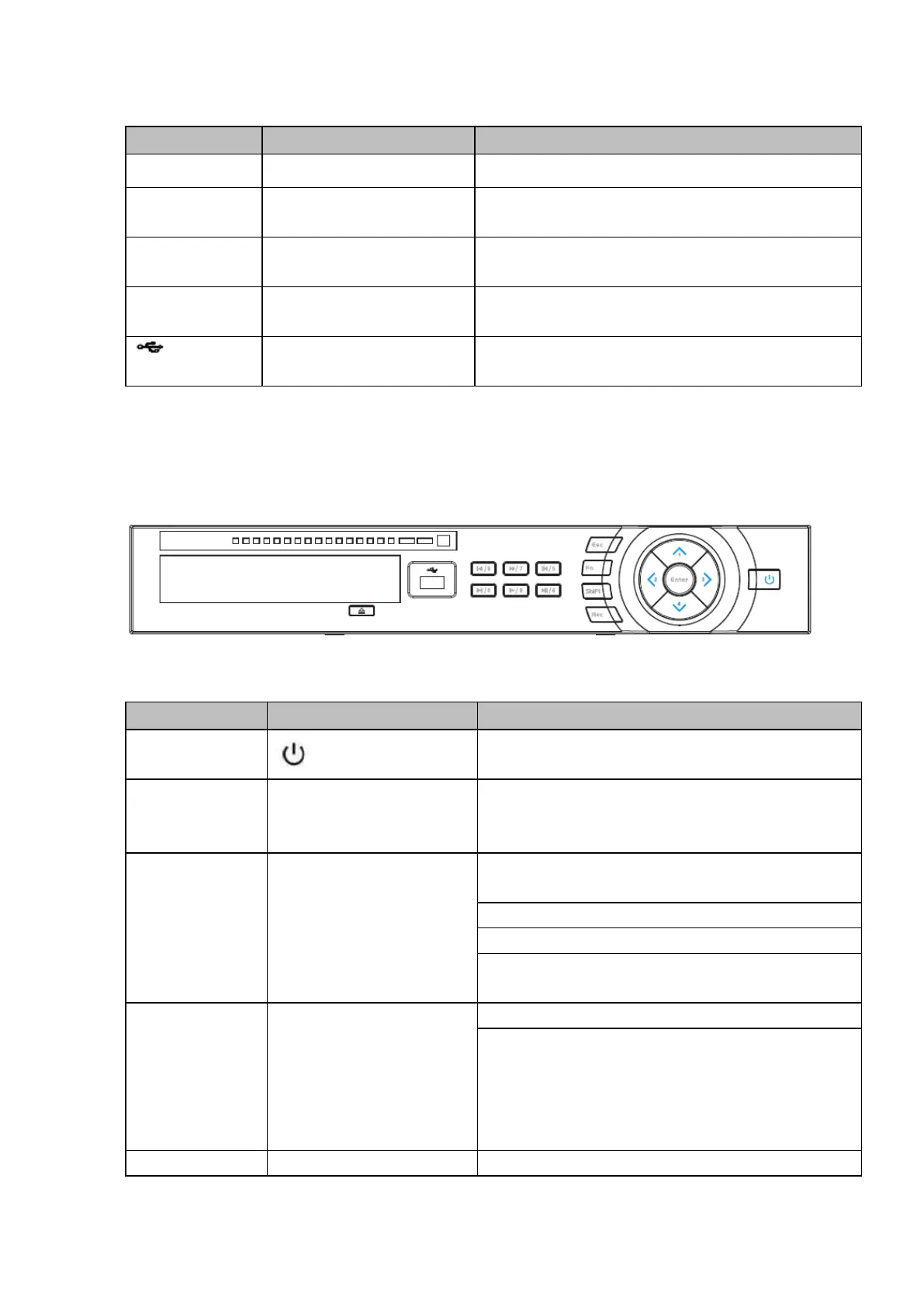

The front panel is shown as in Figure 2-10.
Figure 2-10
Table 2-8
Icon
Name
Function
Power button
Power button, press this button for three seconds
to boot up or shut down NVR.
Shift
Shift
In textbox, click this button to switch between
numeral, English(Small/Capitalized),donation and
etc.
Up/1
Down/4
\
Activate current control, modify setup, and then
move up and down.
Increase/decrease numeral.
Assistant function such as PTZ menu.
In text mode, input number 1/4 (English character
G/H/I).
Left/2
Right/3
\
Shift current activated control.
When playback, click these buttons to control
playback bar.
In text mode, input number 2(English character
A/B/C).
/3(English character D/E/F).
ESC
ESC
Go to previous menu, or cancel current operation.
