Dahua DHI-NVR5208-4KS2 User Manual

Front Panel and Rear Panel 23
Icon
Name
Function
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
GND
Ground end
Wireless AP
Support wireless hotspot function. Use Wi-Fi to
connect to the network camera when there is a
hotspot.

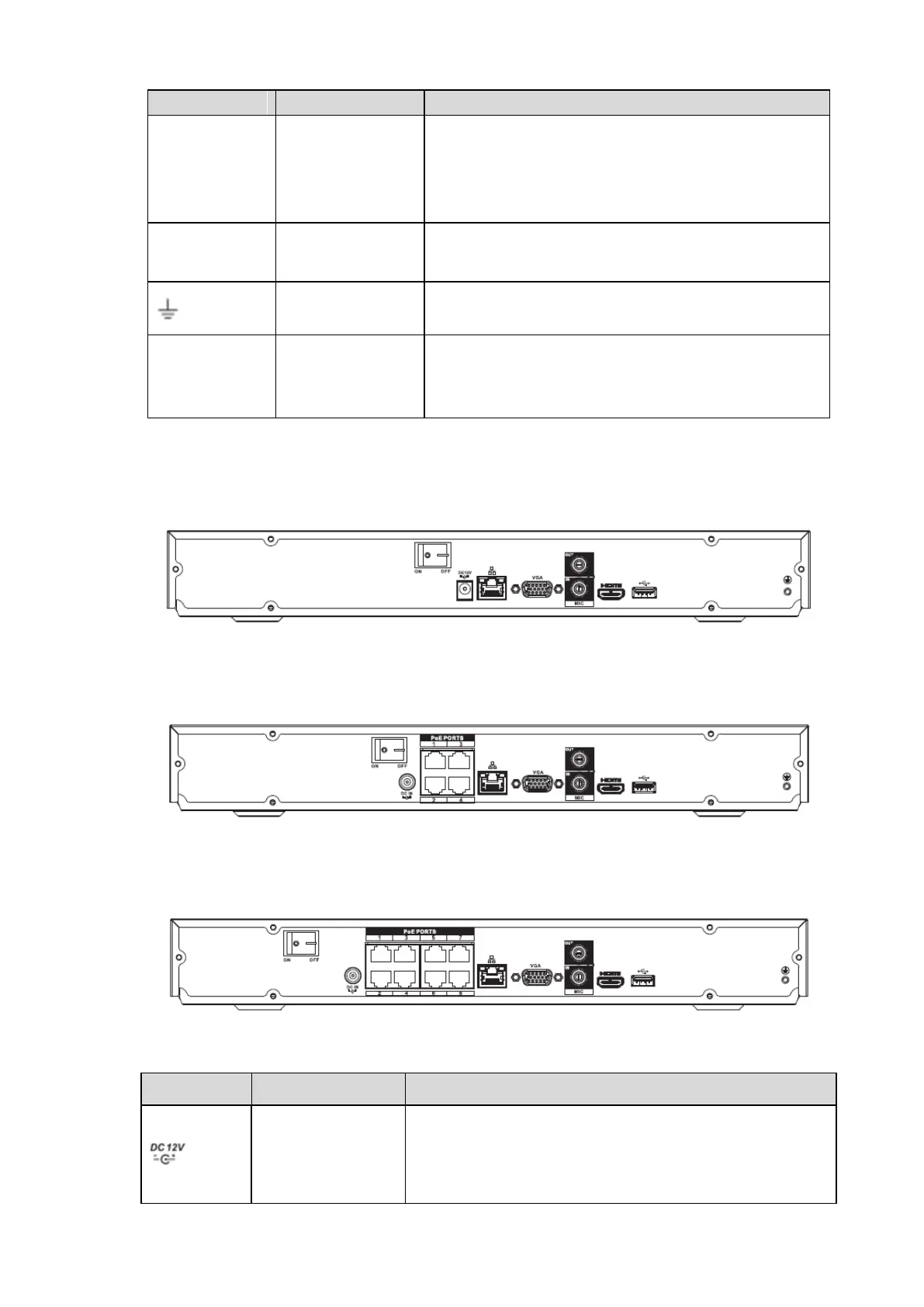

2.2.6 NVR22-S2/22-P-S2/22-8P-S2/22-4KS2/22-P-4KS2/22-8P-4KS2 Series
The NVR22-S2/22-4KS2 series rear panel is shown as below. See Figure 2-29.
Figure 2-29
The NVR22-P-S2/22-P-4KS2 series rear panel is shown as below. See Figure 2-30.
Figure 2-30
The NVR22-8P-S2/22-8P-4KS2 series rear panel is shown as below. See Figure 2-31.
Figure 2-31
Table 2-18
Port Name
Connection
Function
Power input port
Power socket.
 For NVR22-S2/22-4KS2, input DC 12V/4A.
 For NVR22-P-S2/22-P-4KS2, input DC 48V/1.5A.
 For NVR22-8P-S2/22-8P-4KS2, input DC 53V 120W.
