Front Panel and Rear Panel 39
Port Name
Connection
Function
/
Power input port
Power socket.
For NVR41-4KS2: DC 12V/2A power.
For NVR41-P-4KS2: DC 48V/72W power.
For NVR41-8P-4KS2: DC 48V/96W power.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
MIC OUT
Audio output
port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
PoE PORT
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.14 NVR41HS-4KS2/41HS-P-4KS2/41HS-8P-4KS2

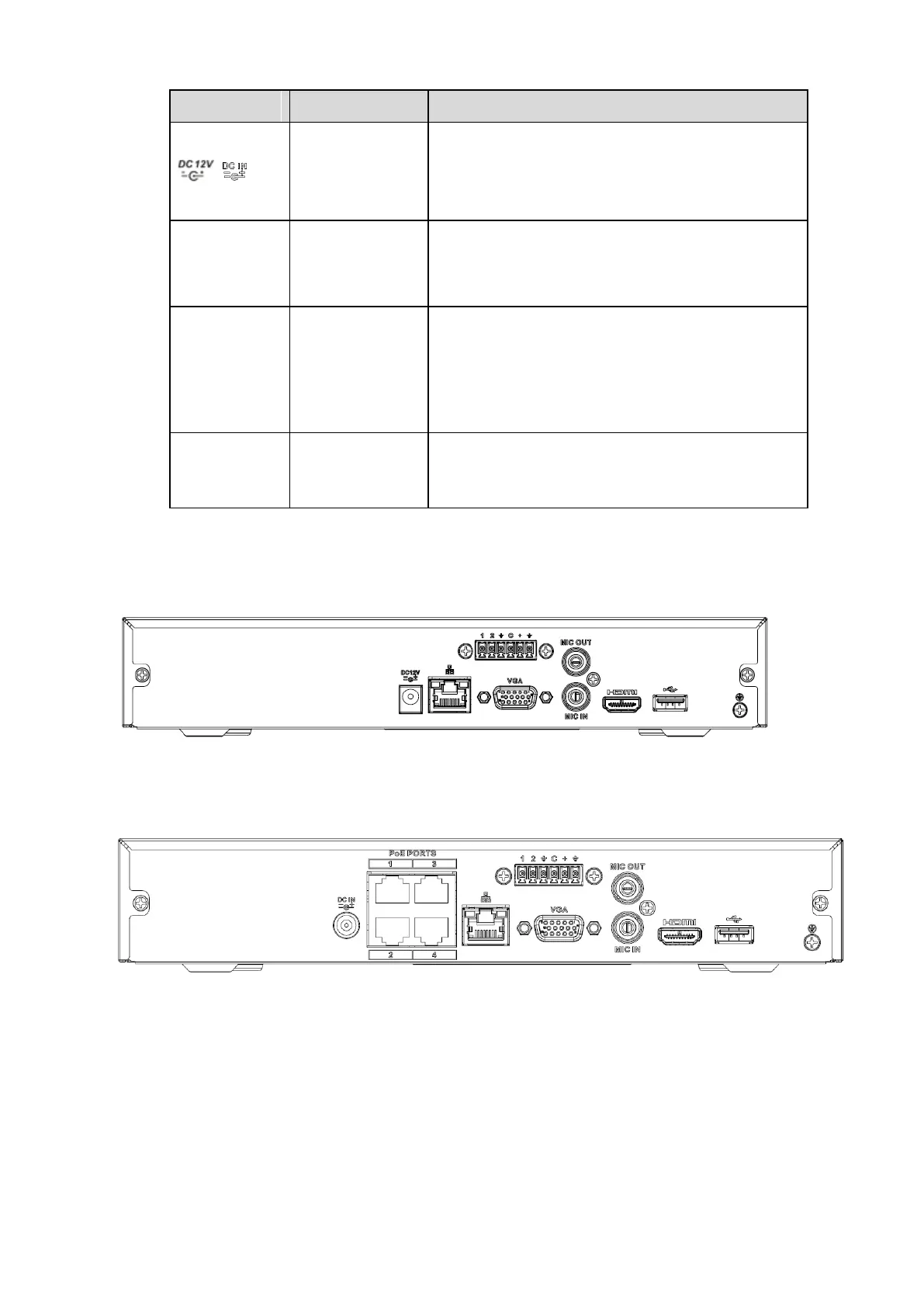

The NVR41HS-4KS2 series rear panel is shown as below. See Figure 2-56.
Figure 2-56
The NVR41HS-P-4KS2 series rear panel is shown as below. See Figure 2-57.
Figure 2-57
The NVR41HS-8P-4KS2 series rear panel is shown as below. See Figure 2-58.
