Front Panel and Rear Panel 38

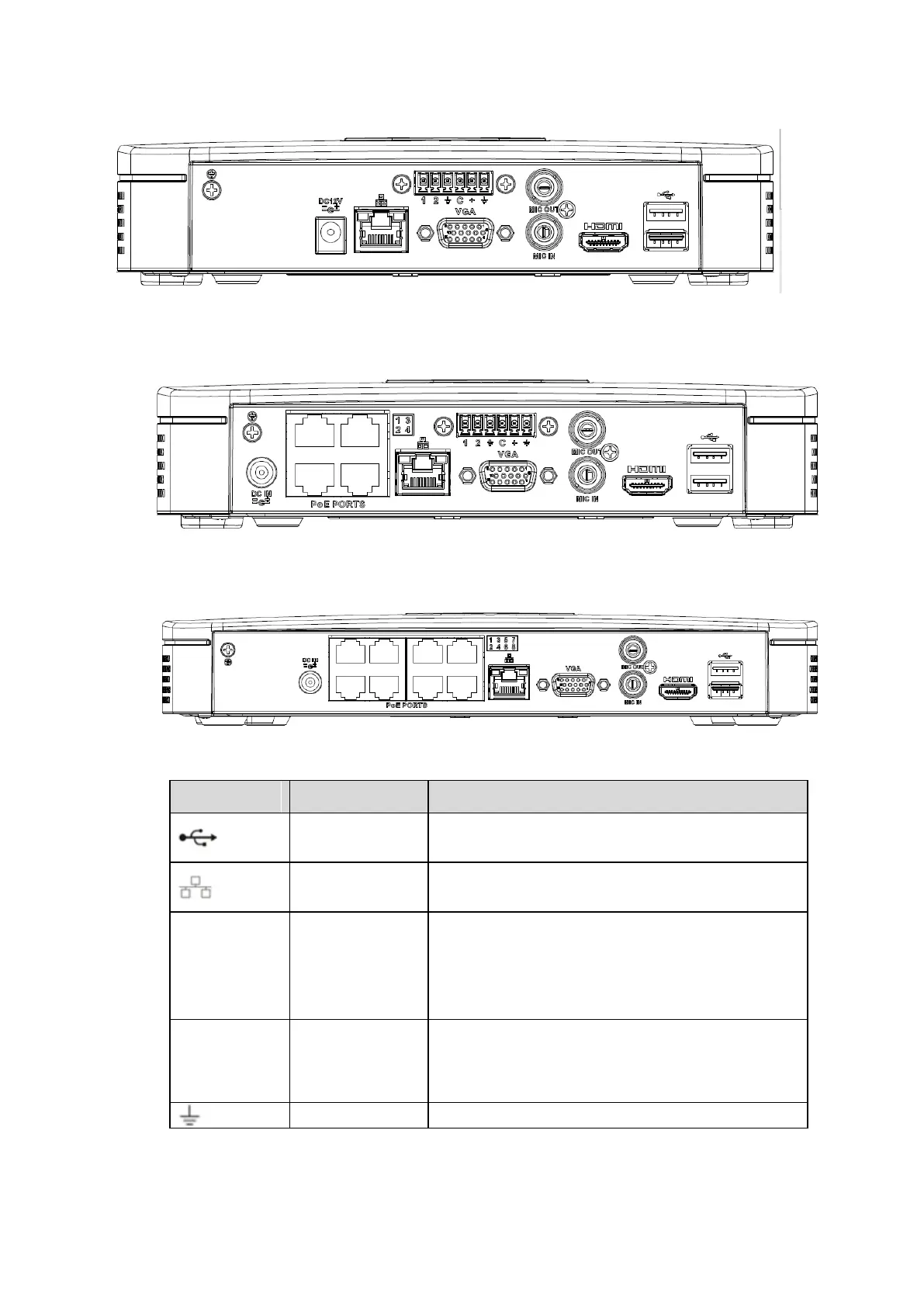

Figure 2-53
The NVR41-P-4KS2 series rear panel is shown as below. See Figure 2-54.
Figure 2-54
The NVR41-8P-4KS2 series rear panel is shown as below. See Figure 2-55.
Figure 2-55
Table 2-25
Port Name
Connection
Function
USB port
USB port. Connect to mouse, USB storage device,
USB burner and etc.
Network port
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Definition
Media Interface
High definition audio and video signal output port.
It transmits uncompressed high definition video
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
VGA
VGA video
output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view analog
video.
GND
Ground end
