Dahua DHI-NVR5208-4KS2 User Manual

Front Panel and Rear Panel 7
Icon
Name
Function
Play previous/0
|
In playback mode, playback the previous video.
In text mode, input number 0.
Reverse/Pause/6
||
In normal playback or pause mode, click this button
to reverse playback.
In reverse playback, click this button to pause
playback.
In text mode, input number 6 (English character
M/N/O).
Play Next/9
|
In playback mode, playback the next video.
In menu setup, go to down ward of the dropdown
list.
In text mode, input number 9 (English character
W/X/Y/Z).
Play/Pause /5
||
In normal playback click this button to pause
playback.
In pause mode, click this button to resume
playback.
In text mode, input number 5(English character
J/K/L).
USB port
To connect USB storage device, USB mouse.
Network
abnormal
indicator light
Net
Network error occurs or there is no network
connection, the light becomes red to alert you.
HDD abnormal
indicator light
HDD
HDD error occurs or HDD capacity is below
specified threshold value, the light becomes red to
alert you.
Record light
1-16
System is recording or not. It becomes on when
system is recording.
IR Receiver
IR
It is to receive the signal from the remote control.
2.1.6 NVR21HS-S2/21HS-P-S2/21HS-8P-S2/41HS-4KS2/41HS-P-4KS2/41HS-8P-4KS2/
21HS-4KS2/21HS-P-4KS2/21HS-8P-4KS2 Series

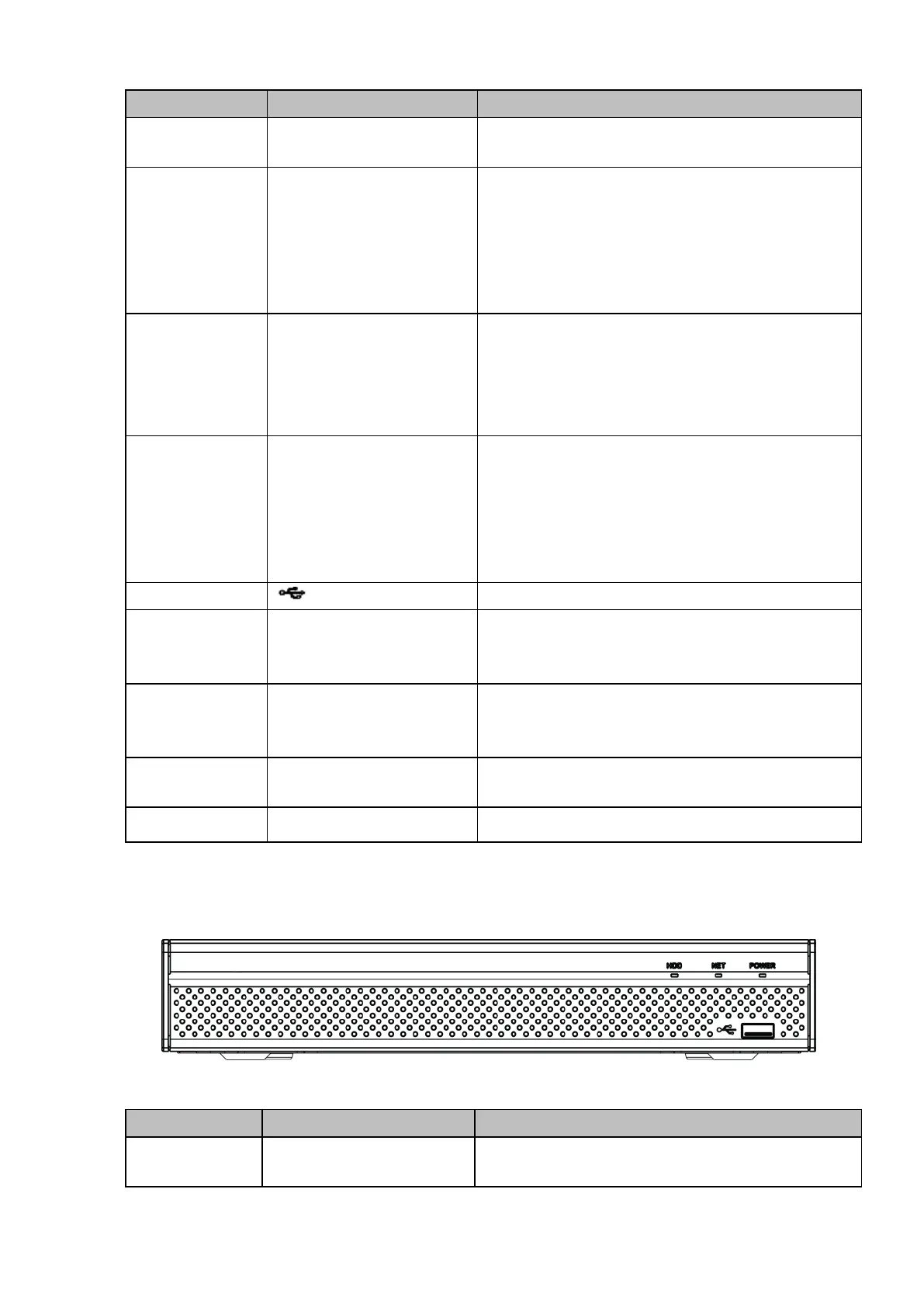

The front panel is shown as below. See Figure 2-6.
Figure 2-6
Table 2-6
Icon
Name
Function
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
