ESS Series User’s Manual
92

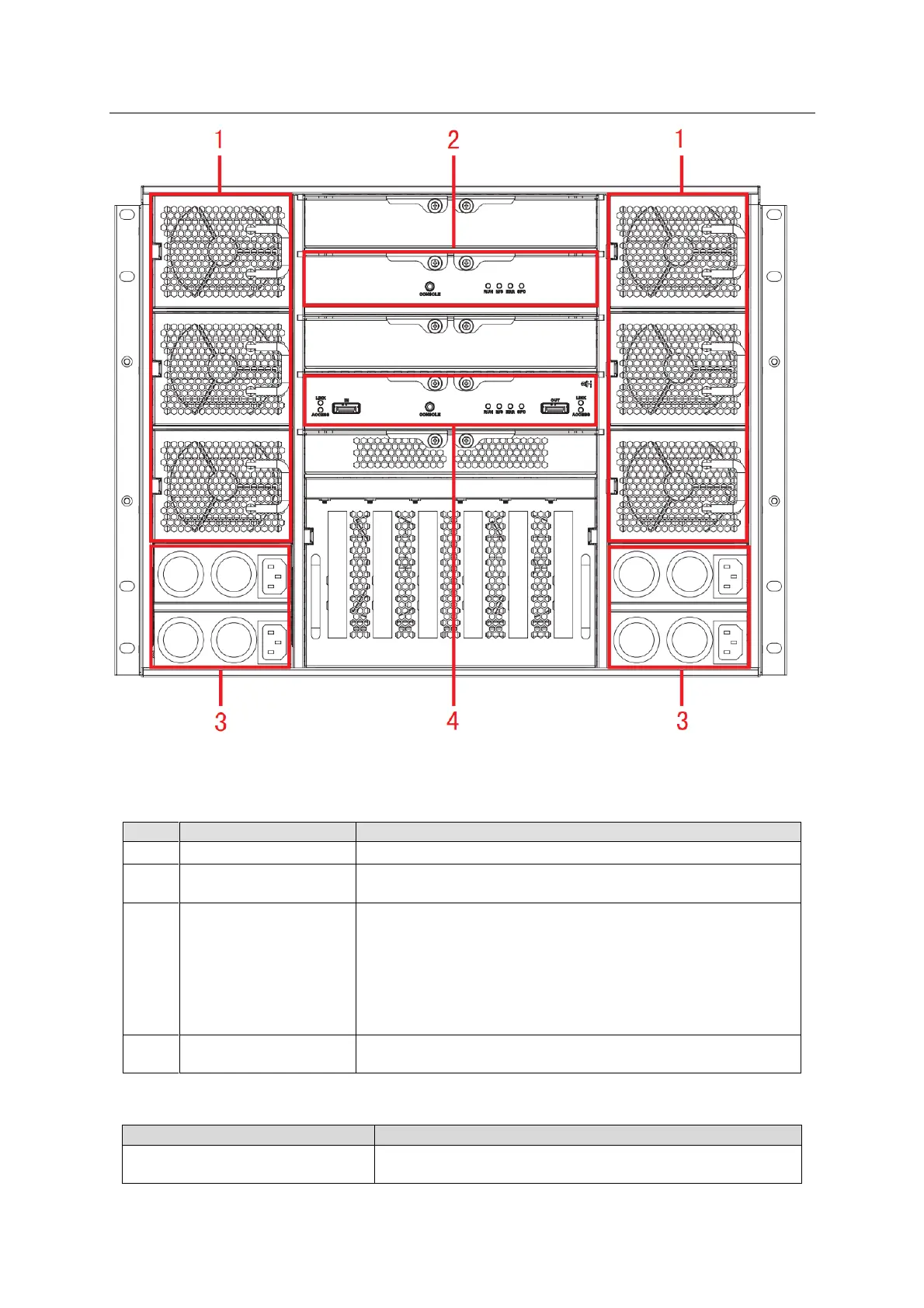

Figure 5-16
Please refer to the following sheet for detailed information of the rear panel.
SN
Port
Function
1
Fan
It is for case ventilation.
2
Slave control module
It is about all kinds of ports and indictor light introduction.
Please refer to the following sheet.
3
Power port
Connect to AC power supplying source.
Note
 System beeps when the redundant power has been
removed.
 System beeps when temperature of the main board or
the rear board, or the voltage is higher than the
specified threshold.
4
Main control module
It is about all kinds of ports and indictor light introduction.
Please refer to the following sheet.
Please refer to the following sheet for detailed information of the main control module.
Port/Indicator Light
Function
IN port indicator light
(Link/Access)
The Link light is on when the IN port has connected to
the host or the upper-level disk array enclosure.
