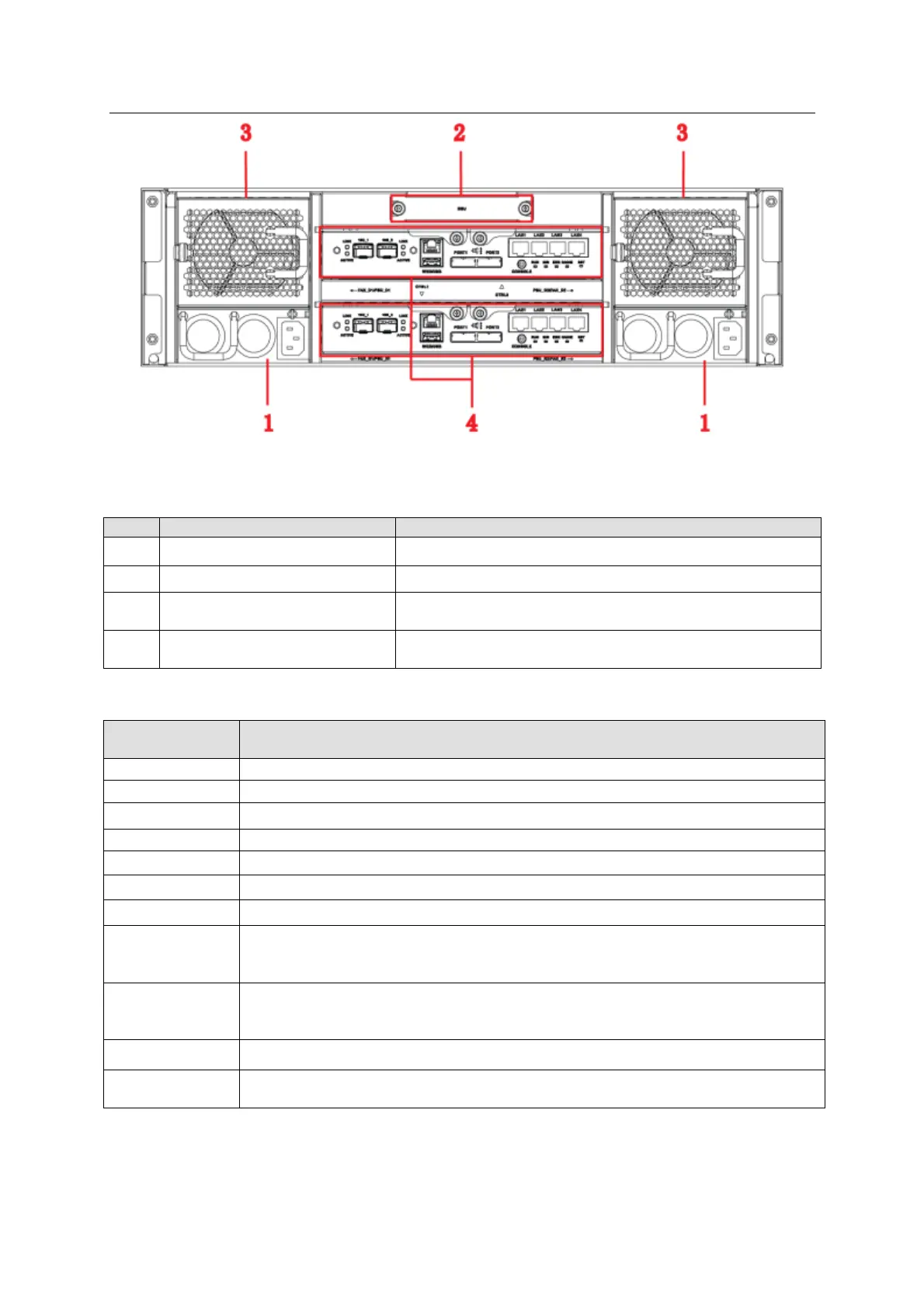

Figure 1-13
You can refer to the following sheet for detailed information of the rear panel.
SN
Port
Function
1
Power port
Connect to AC power supplying source.
2
Battery box
It is to install the battery box.
3
Fan
It is for case ventilation.
4
Main control module
It is about all kinds of ports and indictor light
introduction. Please refer to the following sheet.
You can refer to the following sheet for detailed information of main control module.
Port/Indicator
Light
Function
LAN1～LAN4
1000Mbps data Ethernet port. It is to transmit data.
10G_1, 10G_2
10000Mbps data Ethernet port. It is to transmit data. (Optional)
WEB port
Ethernet Management port. Login Web via this port.
USB port
USB port
PORT1/PORT2
Connect to the IN port of the disk array enclosure.
CONSOLE
COM port. It is to debug the device and view the login command interface.
RUN
The light is flashing after system booted up and begins running.
M/S
Main control indictor light.
 The light is on if it is the main controller.
 The light is off if it is the slave controller.
ERR
System error indictor light.
 The error light is on when system is abnormal.
 The error light is off when system is running properly.
CACHE
It is reserved for future use.
RST
Press it for 5 seconds to restore default setup (network setup, user password,
time sync, email alarm and etc.).
