ESS Series User’s Manual
2
Figure 1-1
1.3 ESS2016X
1.3.1 Front Panel

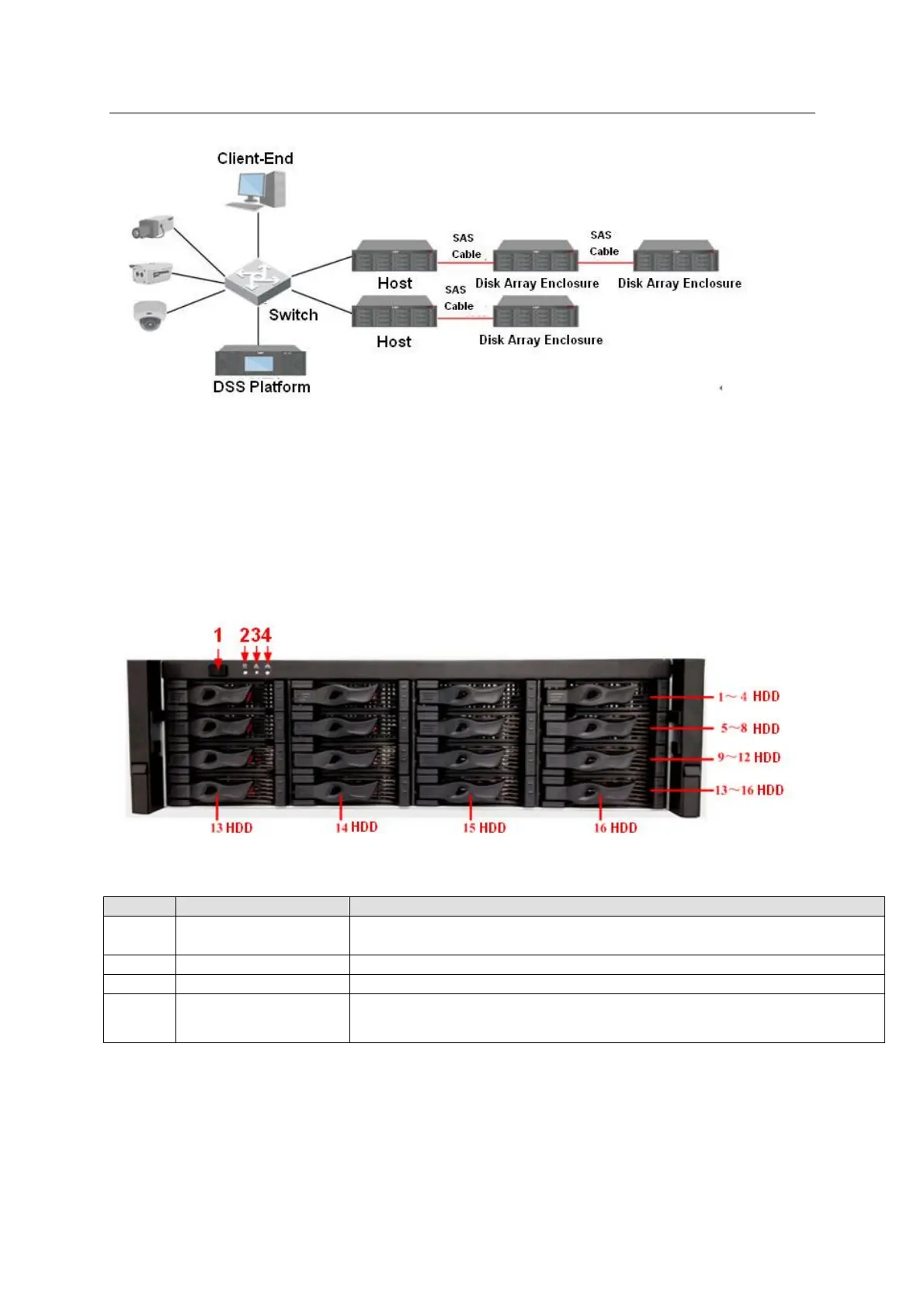

The front panel is shown as below. See Figure 1-2.
The HDD slot number ranges from left to right, from top to the bottom.
Figure 1-2
SN
Name
Function
1
Power on-off button
Press it to boot up the device.
Press it for 5 seconds to shut down the device.
2
HDD Indicator Light
When system HDD is reading or writing, the blue light becomes flash.
3
Alarm Indicator Light
The red light is flashing when there is an alarm or abnormal situation.
4
Network Indicator
Light
The blue light is flashing when the network connection is OK.
1.3.2 Rear Panel
The rear panel is shown as below. See Figure 1-3.
