Dahua ESS2016X User Manual

ESS Series User’s Manual
12
LAN1～LAN4
1000Mbps data Ethernet port. It is to transmit data.
10G_1, 10G_2
10000Mbps data Ethernet port. It is to transmit data. (Optional)
WEB port
Ethernet Management port. Login Web via this port.
USB port
USB port
PORT1/PORT2
Connect to the IN port of the disk array enclosure.
CONSOLE
COM port. It is to debug the device and view the login command interface.
RUN
The light is flashing after system booted up and begins running.
M/S
Main control indictor light.
The light is on when system is malfunction.
The light is off when system is running properly.
ERR
System error indictor light.
 The error light is on when system is abnormal.
 The error light is off when system is running properly.
CACHE
It is reserved for future use.
RST
Press it for 5 seconds to restore default setup (network setup, user password,
time sync, email alarm and etc.).
1.8 ESS5024D-R
1.8.1 Front Panel

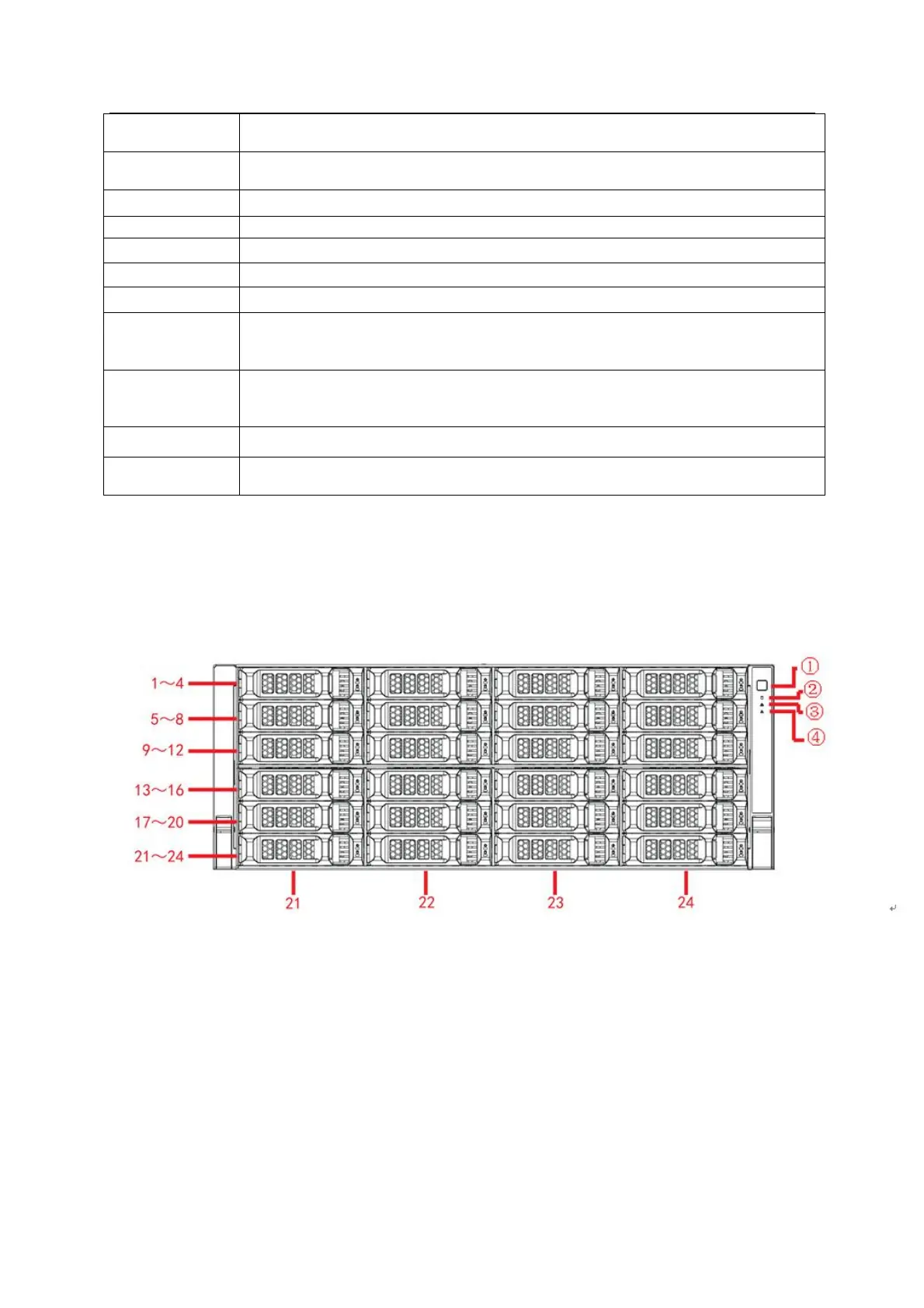

The ESS5024D-R front panel is shown as below. See Figure 1-18.
The HDD slot number ranges from left to right, from top to the bottom.
Figure 1-18
One kind of the front panel is shown as below. See Figure 1-19.
