5.7.1 Front Panel

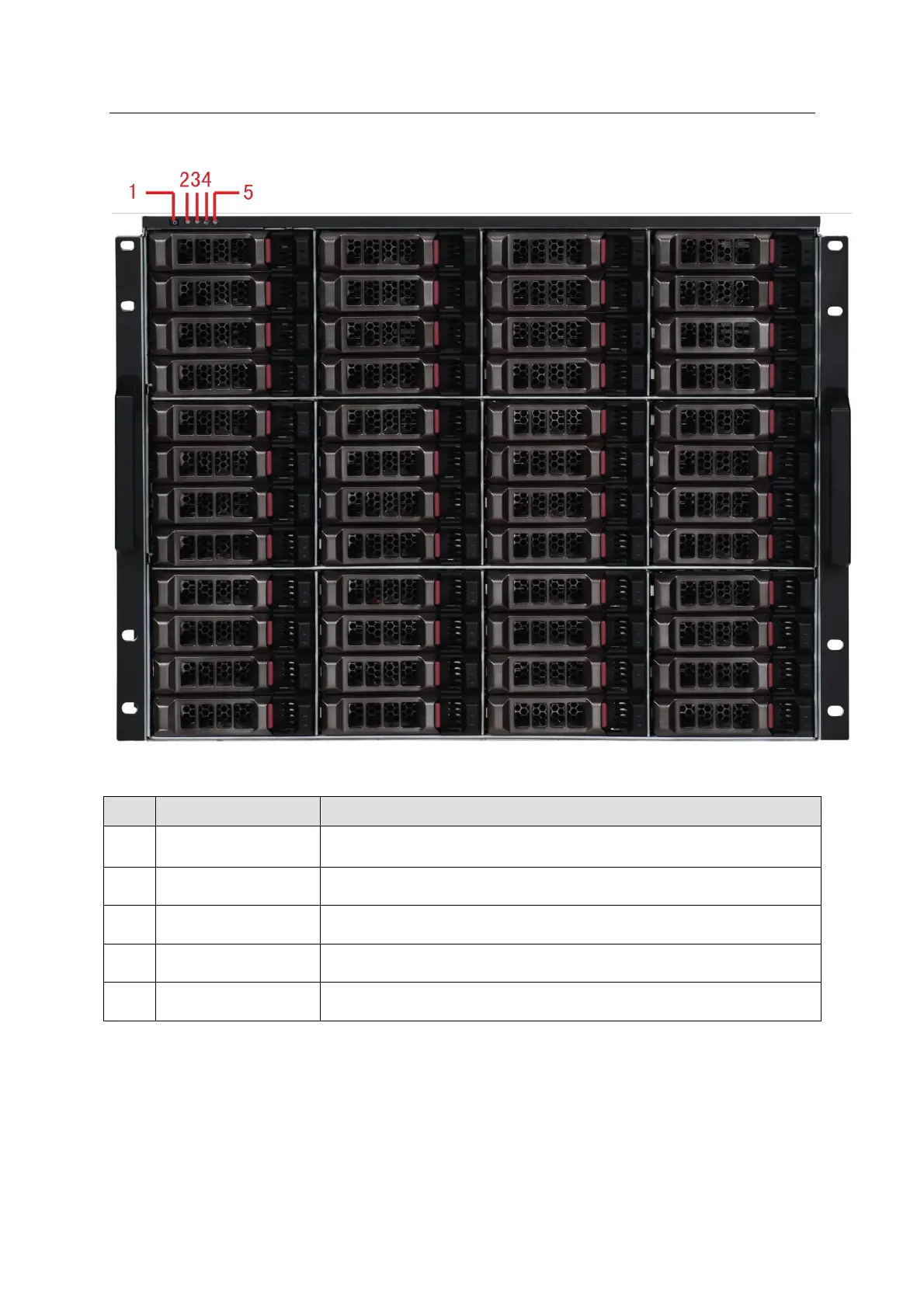

The front panel is shown as below. See Figure 5-14.
Figure 5-14
SN
Name
Function
1
Power on-off button
Press it to boot up the device.
Press it for 5 seconds to shut down the device.
2
Power Indicator
Light
When the light is blue, the power connection is OK.
3
HDD indicator light
When system HDD is reading or writing, the blue light becomes
flash.
4
Alarm indicator light
The red light is flashing when there is an alarm or abnormal
situation.
5
Network indicator
light
Reserved
5.7.2 Rear Panel
The rear panel has two types: redundancy-power and 4-power. These two types have slight
difference on the power module and fan module. Please check carefully.
The redundancy-power mode rear panel is shown as below. See Figure 5-15.
