ESS Series User’s Manual

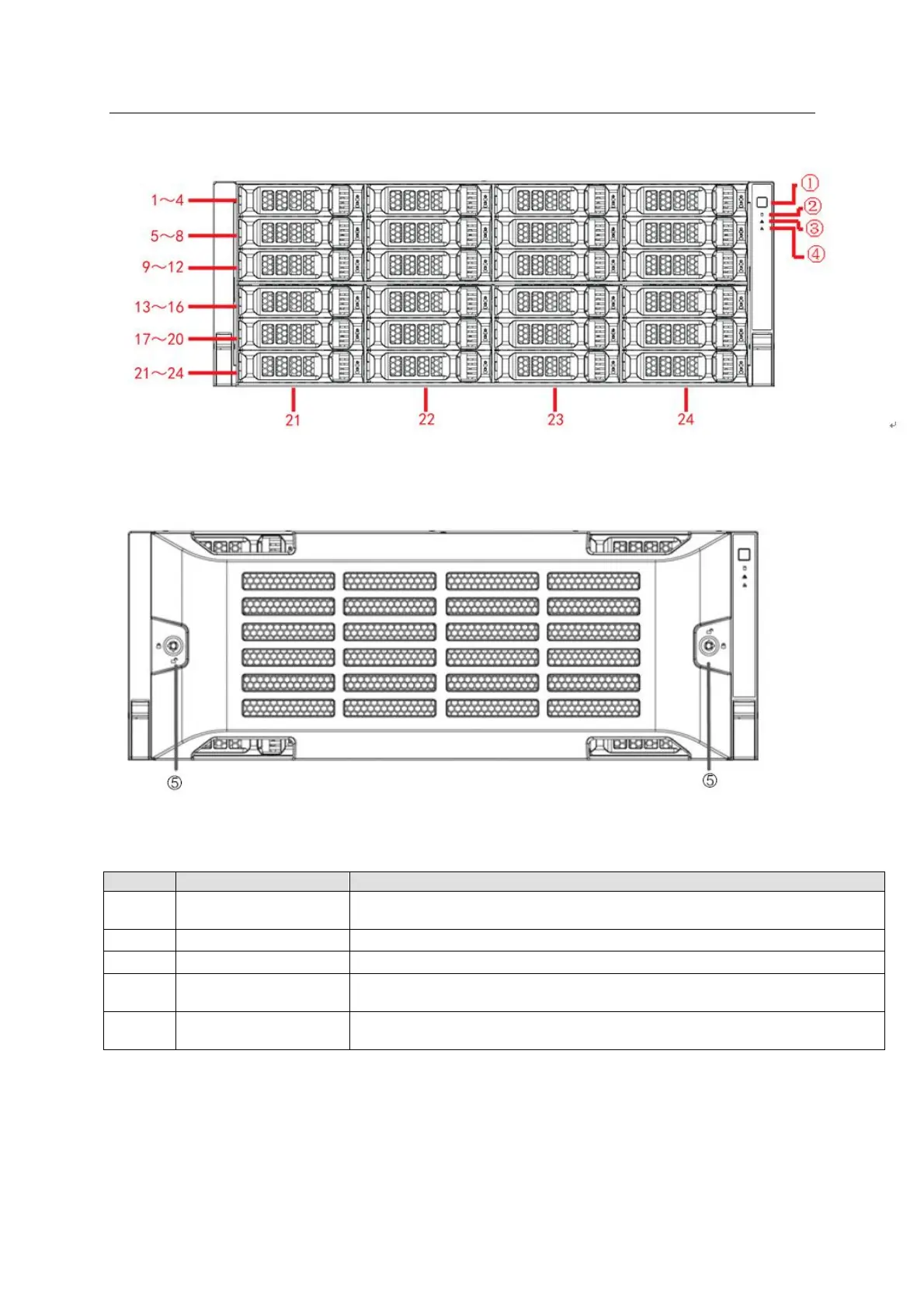

The front panel is shown as below. See Figure 1-14.
The HDD slot number ranges from left to right, from top to the bottom.
Figure 1-14
One kind of the front panel is shown as below. See Figure 1-15.
Figure 1-15
You can refer to the following sheet for detailed information.
Press it to boot up the device.
Press it for 5 seconds to shut down the device.
When system HDD is reading or writing, the blue light becomes flash.
The red light is flashing when there is an alarm or abnormal situation.
The blue light is flashing when the network connection is OK.
Secure it to lock the panel. It has the dustproof function. It can reduce
the risk of the HDD stealing or mistakenly remove operation.
1.7.2 Rear Panel
This series product has two kinds of rear panels. There are slightly difference on the power
supplying module and fan module.
The single-power supplying interface is shown as In Figure 1-16.
