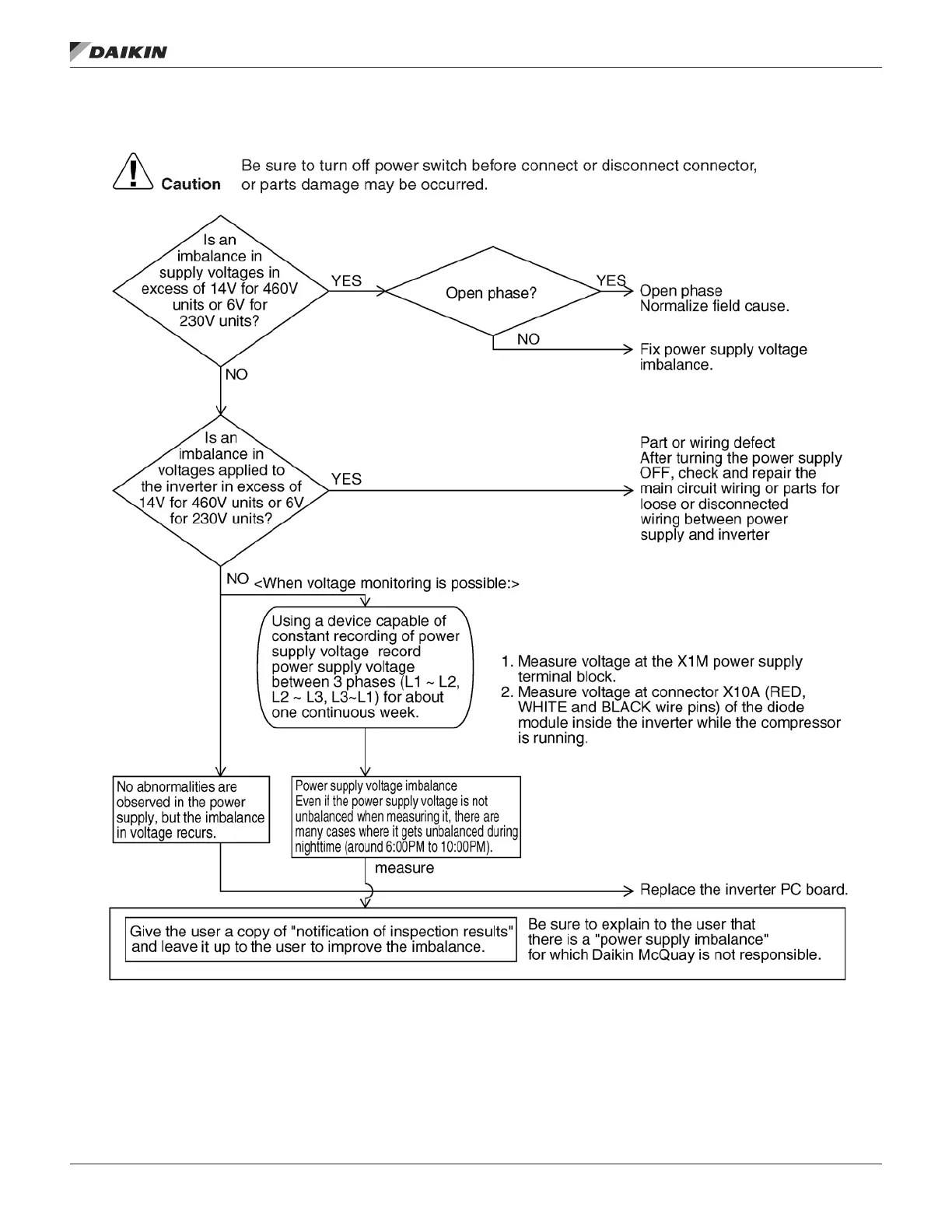

Figure 35: P1 – Inverter Over-Ripple Protection

trouBleshootIng

www.DaikinApplied.com 147 OM 1141-3 • MICROTECH UNIT CONTROLLER
