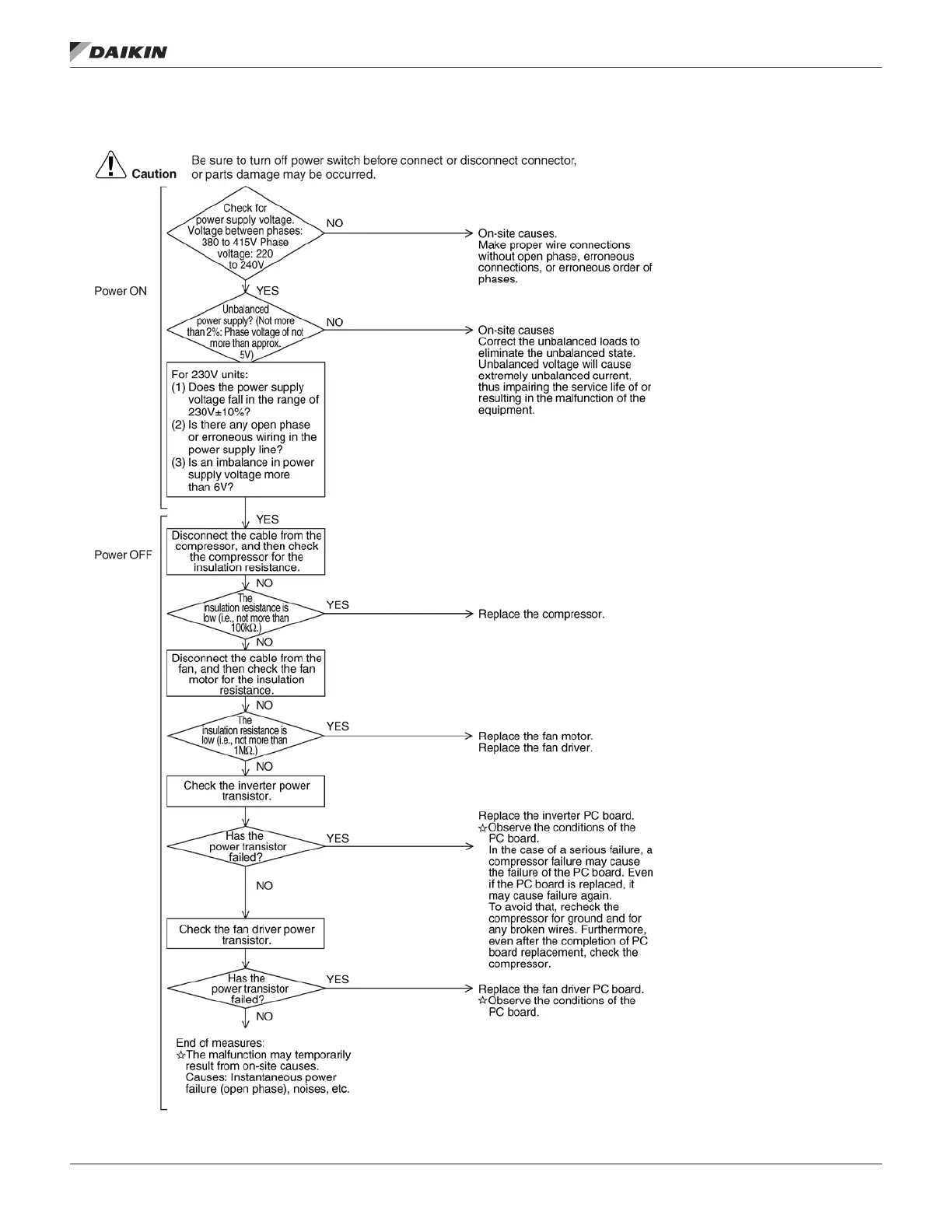

Figure 38: U2 – Power Supply Insufcient or Instantaneous Failure

See CHECK3

on page 129

See CHECK3

on page 129

trouBleshootIng

www.DaikinApplied.com 153 OM 1141-3 • MICROTECH UNIT CONTROLLER
