SiEBE18-526 Instruction
System Configuration 157
12
13
14
15
11
Outdoor Unit
Indoor Unit
Outdoor Unit
1.
Air outlet
2. Air outlet grille (Field supply)
Appearance of the Air outlet grille and Air inlet
grille may differ with some models.
3. Display, Control panel
4. Suction grille (Option)
Appearance of the suction grille and Air inlet
grille may differ with some models.
5. Air inlet
6. Room temperature sensor:
It senses the air temperature around the unit.
7. Operation lamp (green)
8. TIMER lamp (yellow)
9. HOME LEAVE lamp (red)
LIghtsup when youuse HOME LEAVE
operation.
10.
Indoor Unit ON/OFF switch
Push thisswitch once to start operation.
Push once again to stop it.
Thisswitch isuseful when the remote control is
missing.
The operation mode refers to the following table.
CDKS
CDXS
COOL
AUTO
Mode
Temperature
setting
22°C
25°C
AUTO
AUTO
Air flow
rate

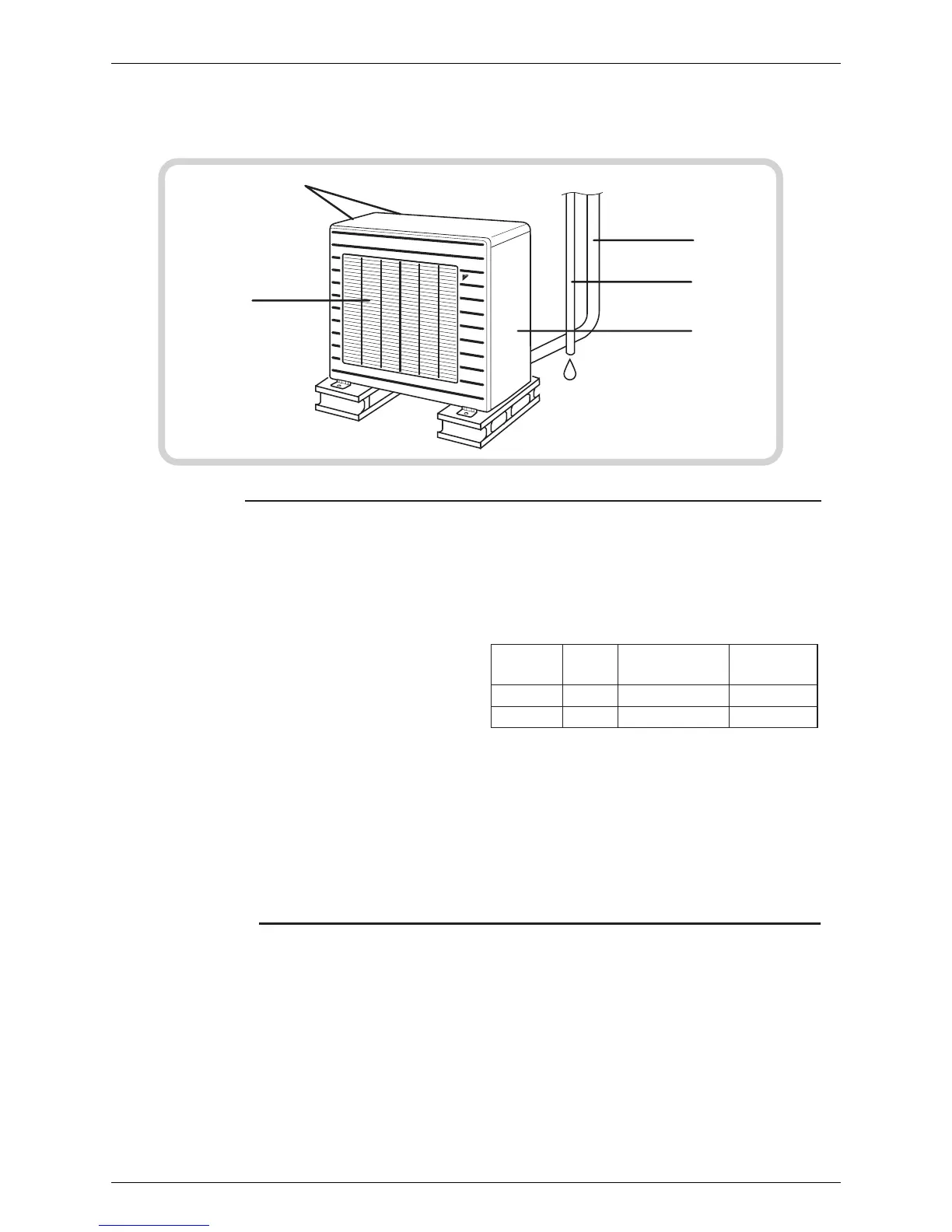

Appearance of the outdoor unit may differ from some models.
11. Air inlet: (Back and side)
12. Refrigerant piping and inter-unit cable
13. Drain hose
14. Earth terminal:
It is inside of this cover.
15. Air outlet
