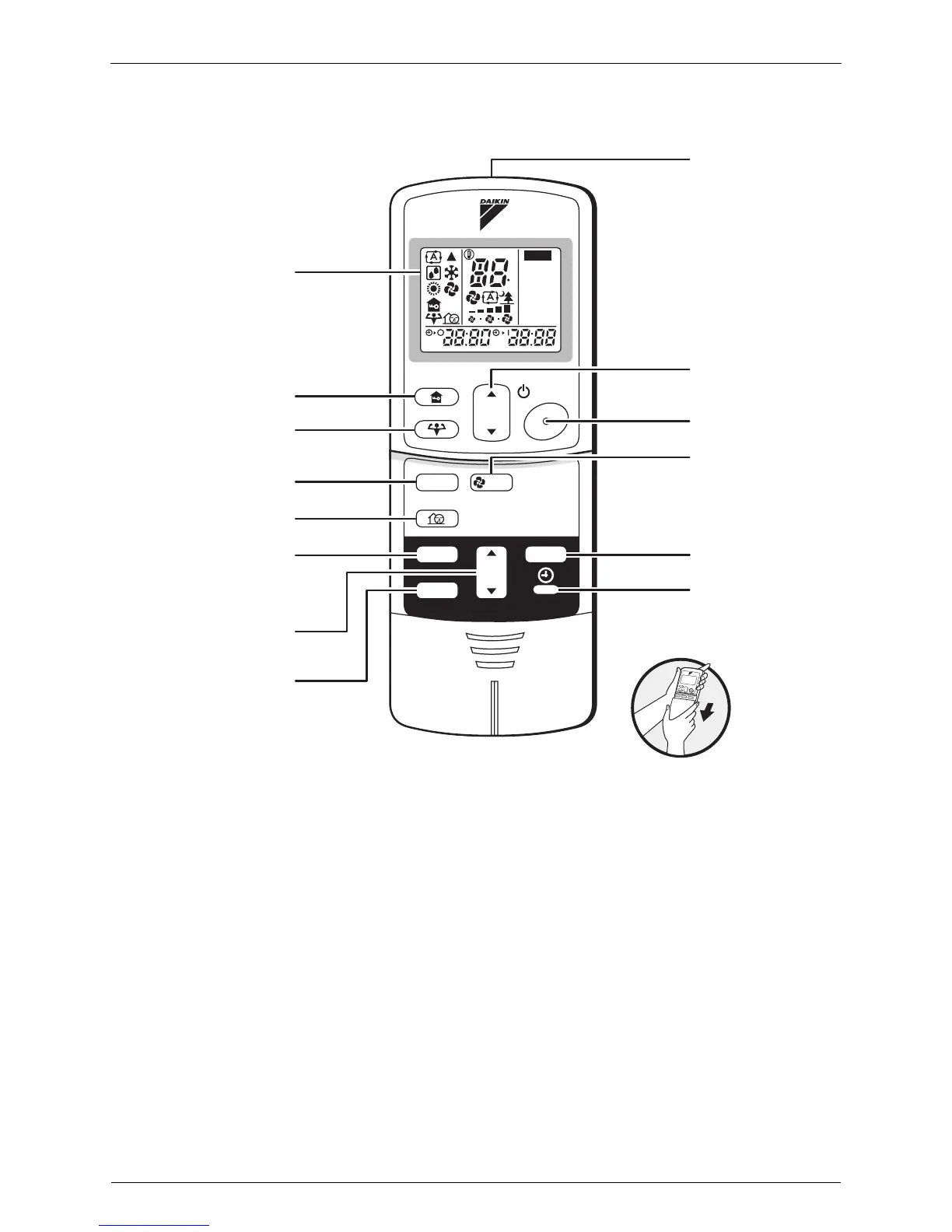

 Remote Control
< ARC433A7, A8 >
1. Signal transmitter:
• It sendssignals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section isshown
with all its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
for HOME LEAVE operation
4. POWERFUL button:
for POWERFUL operation
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
•
Press thisbutton once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN)
8. SILENT button: for OUTDOOR UNIT
SILENT operation
9. FAN setting button:
• It selects the air flow rate setting.
10. ON TIMER button
11. OFF TIMER button
12. TIMER Setting button:
• It changes the time setting.
13. TIMER CANCEL button:
• It cancels the timer setting.
14. CLOCK button
