SiEBE18-526 Instruction
System Configuration 163
17
18
19
20
16

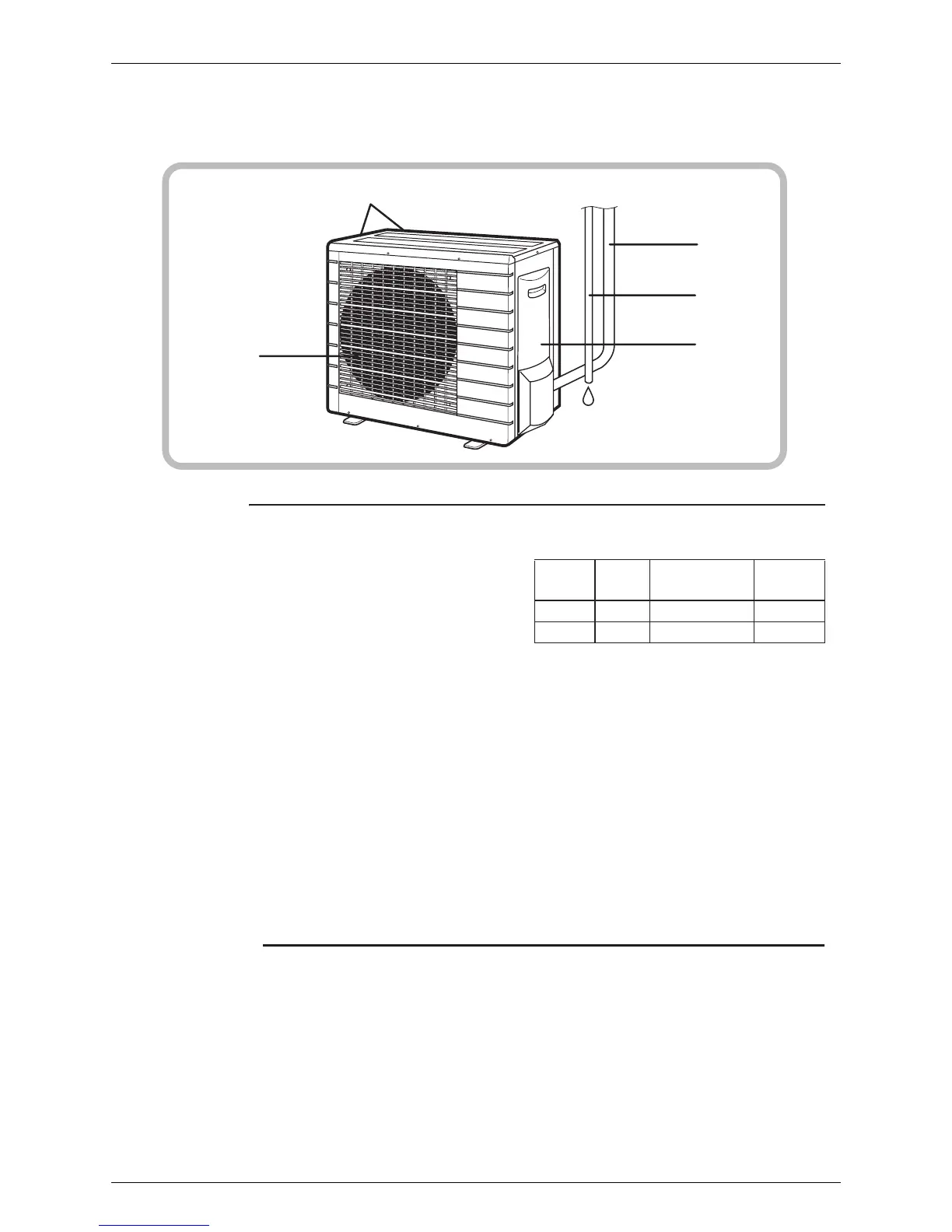

Outdoor Unit
Indoor Unit
Outdoor Unit
1. Photocatalytic deodorizing filter and
Air purifying filter:
•
These filtersare attached to the inside of the air
filters.
2. Air outlet
3. Display
4. Front grille
5. Louvres (vertical blades):
•
The louvresare inside of the air outlet.
6. Air inlet
7. Air filter
8. Flap (horizontal blade)
9. Operation lamp (green)
10. TIMER lamp (yellow)
11. HOME LEAVE lamp (red)
12. Indoor Unit ON/OFF switch:
•
Push thisswitch once to start operation.
Push once again to stop it.
•
The operation mode refers to the following
table.
•
Thisswitch isuseful when the remote control is
missing.
13. Signal receiver:
•
Signalsare received from the remote control.
•
When the unit receivesasignal, you will hear a
short beep.
•
Operation start................. beep-beep
•
Settings changed............. beep
•
Operation stop.................beeeeep
14. Air outlet selection switch
15. Room temperature sensor:
•
It senses the air temperature around the unit.
Air flow
rate
Temperature
setting
Mode
AUTO
AUTO
COOL
AUTO
22°C
25°C
FVKS
FVXS
16. Air inlet: (Back and side)
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
• It is inside of this cover.
20. Air outlet
Appearance of the outdoor unit may differ from some models.
