Outdoor Unit SiEBE18-526
340 Removal Procedure

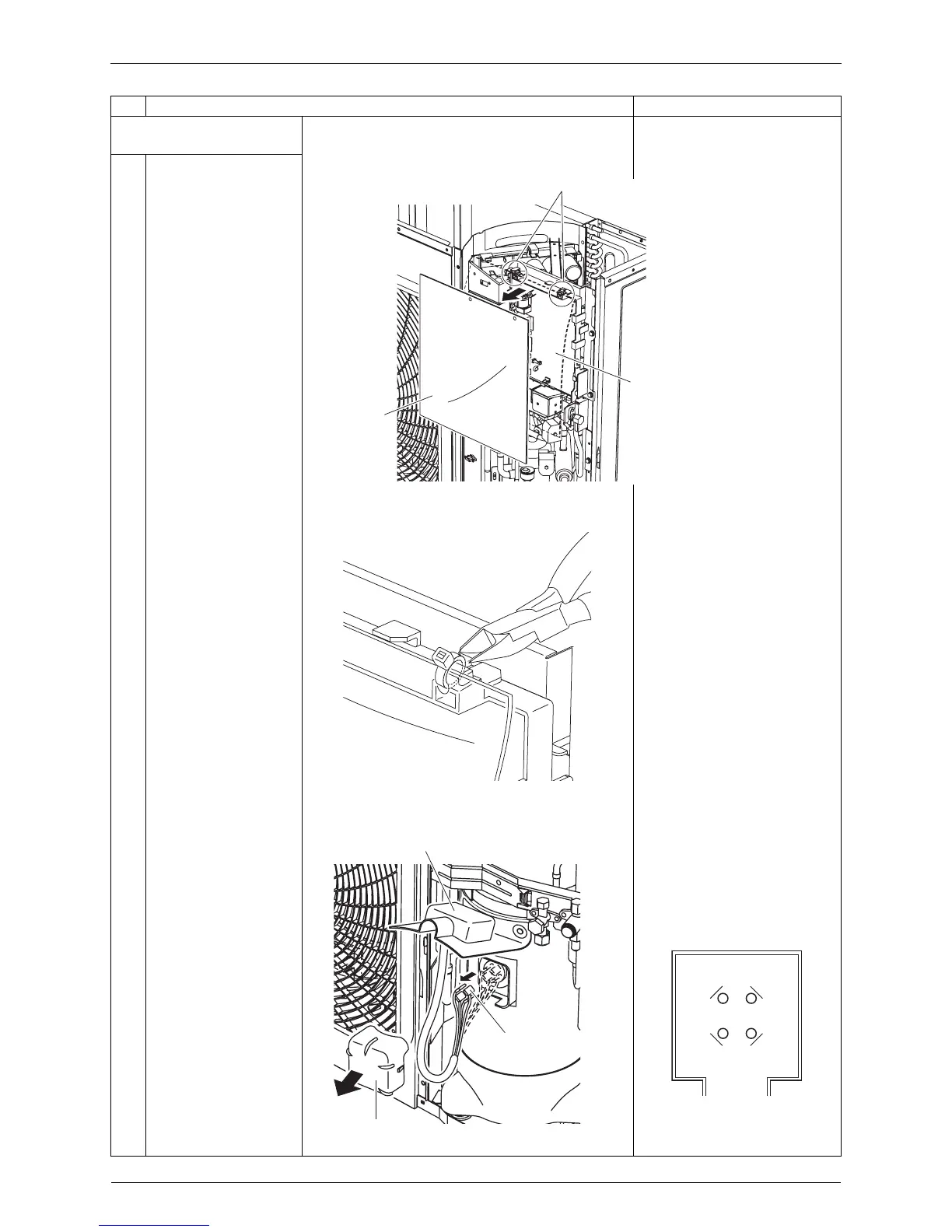

3. Removing the power filter
PCB
1
Cut off the two top
TYRAP fixtures and
remove the drip proof
cover.
Cut off with nippers.
The TYRAP fixture is to be kept
in stock.
2
Tilt up the compressor's
sound proof cover.
Using long nose pliers, pull out
the following.
U: Red
V: White
W: Blue
N: Brown
3
Remove the terminal
cover.
4
Disconnect the
compressor lead
connector (terminal).
Step
Procedure Points
TYRAP fixtures
Power filter PCB
Drip proof cover
(Q0472)
(Q0471)
Sound proof cover
Terminal
Terminal cover
(Q0473)
NW
UV
