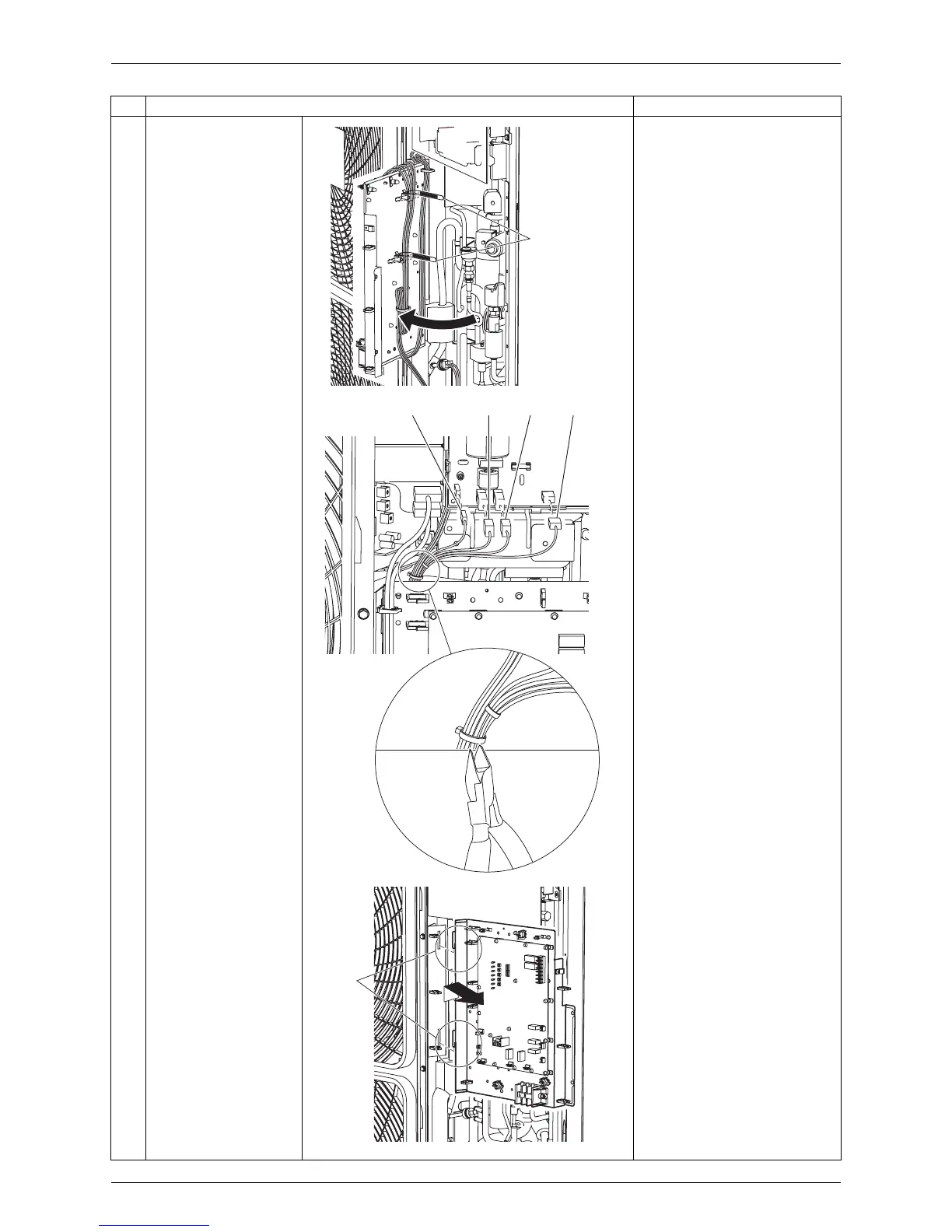

SiEBE18-526 Outdoor Unit
Removal Procedure 339
2
Open the mounting
plate's right side toward
yourself.
3
Remove the two
TYRAP fixtures from
behind the mounting
plate.
4
Disconnect the
connectors from the
power filter PCB and
cut off the TYRAP
fixtures.
Ground, Power terminals NA
(white) / LA (red) / X1A (black)
The TYRAP fixture is to be kept
in stock.
5
Lift the mounting plate
and undo the two left
side hooks to remove it.
Step
Procedure Points
TYRAP fixtures
(Q0468)
Ground NA LA X1A
(Q0469)
Hooks
(Q0470)
