Piping Diagrams SiEBE18-526
364 Appendix

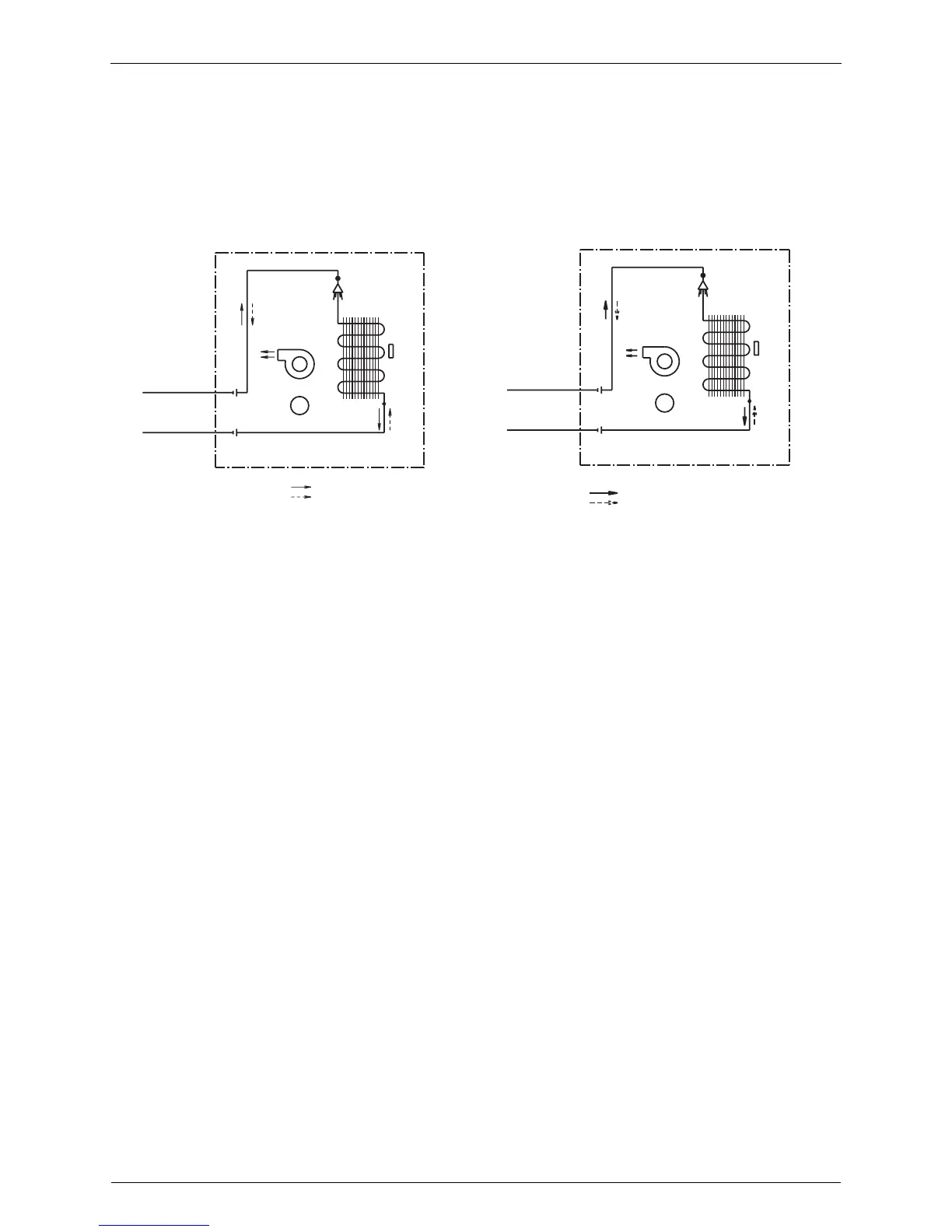

1.3.3 Floor / Ceiling Suspended Dual Type
FLXS25/35BVMB, FLXS25/35BAVMB FLXS50/60BVMB, FLXS50/60BAVMB
INDOOR UNIT
(
6.4CuT
)
SIROCCO FAN
(
9.5CuT
)
FAN MOTOR
M
4D048722
HEAT EXCHANGER
THERMISTOR
ON HEAT
EXCH.
FIELD PIPING
(
6.4CuT
)
FIELD PIPING
(
9.5CuT
)
REFRIGERANT FLOW
COOLING
HEATING
REFRIGERANT FLOW
HEATING
COOLING
INDOOR UNIT
(
9.5CuT
)
SIROCCO FAN
(
12.7CuT
)
FAN MOTOR
M
HEAT EXCHANGER
4D048724
THERMISTOR
ON HEAT
EXCH.
FIELD PIPING
(
6.4CuT
)
FIELD PIPING
(
12.7CuT
)
