4.14.1 Soft Start Connections

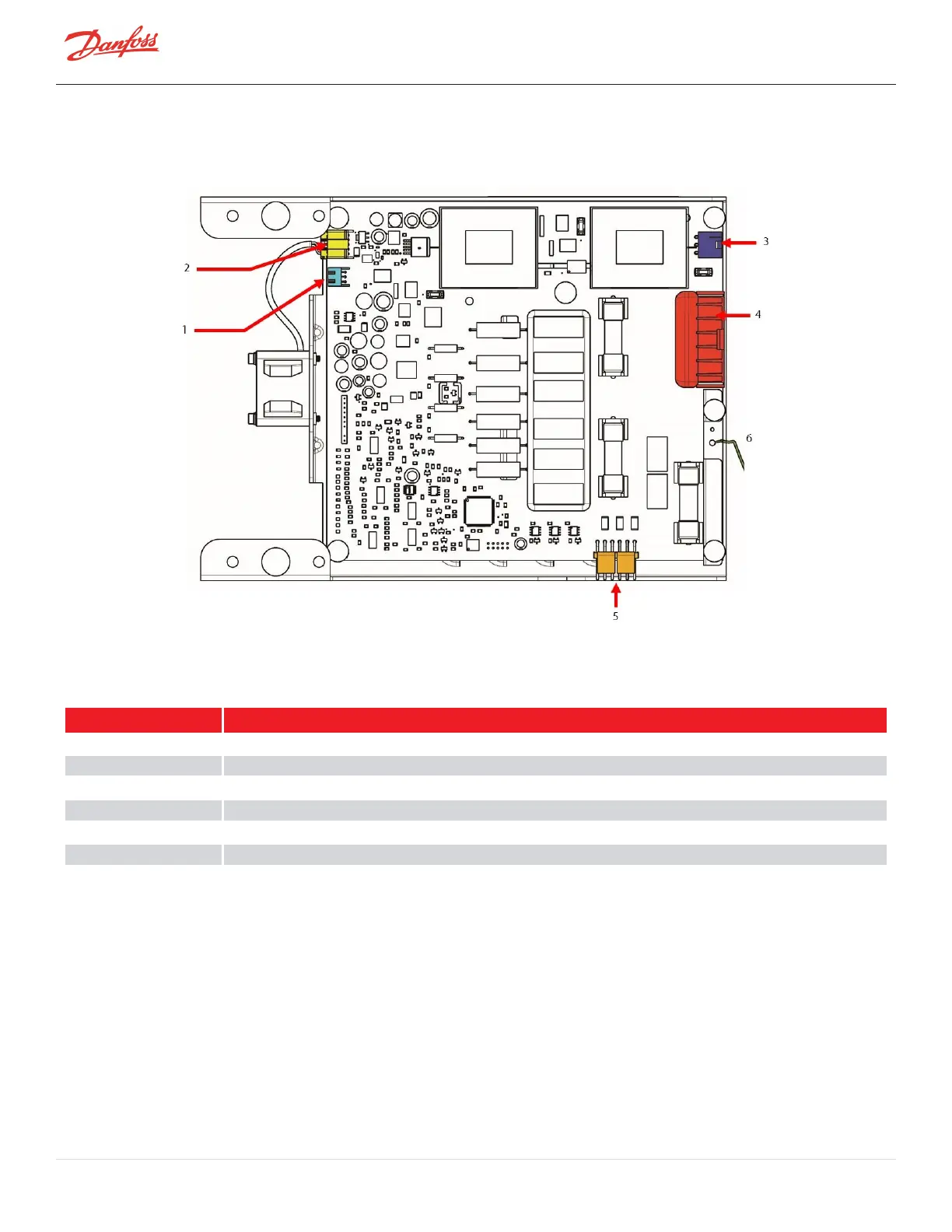

Figure 4-95 Closed-Top Soft Start Connections
Table 4-22 Closed-Top Soft Start Connection Identification
No. Component
1 J9:SoftStartTemperatureSensorconnector
2 J5:ThermostaticFanControlconnector
3 J7:DC-DCTriggerSignalconnector
4 J1:HighVoltageAC/DCconnector
5 J8:SCRGateSignalconnector
6 Ground
Page 114 of 294 - M-SV-001-EN Rev. H 1/23/2023
