Danfoss TTS300 - Soft Start Installation (Closed-Top)

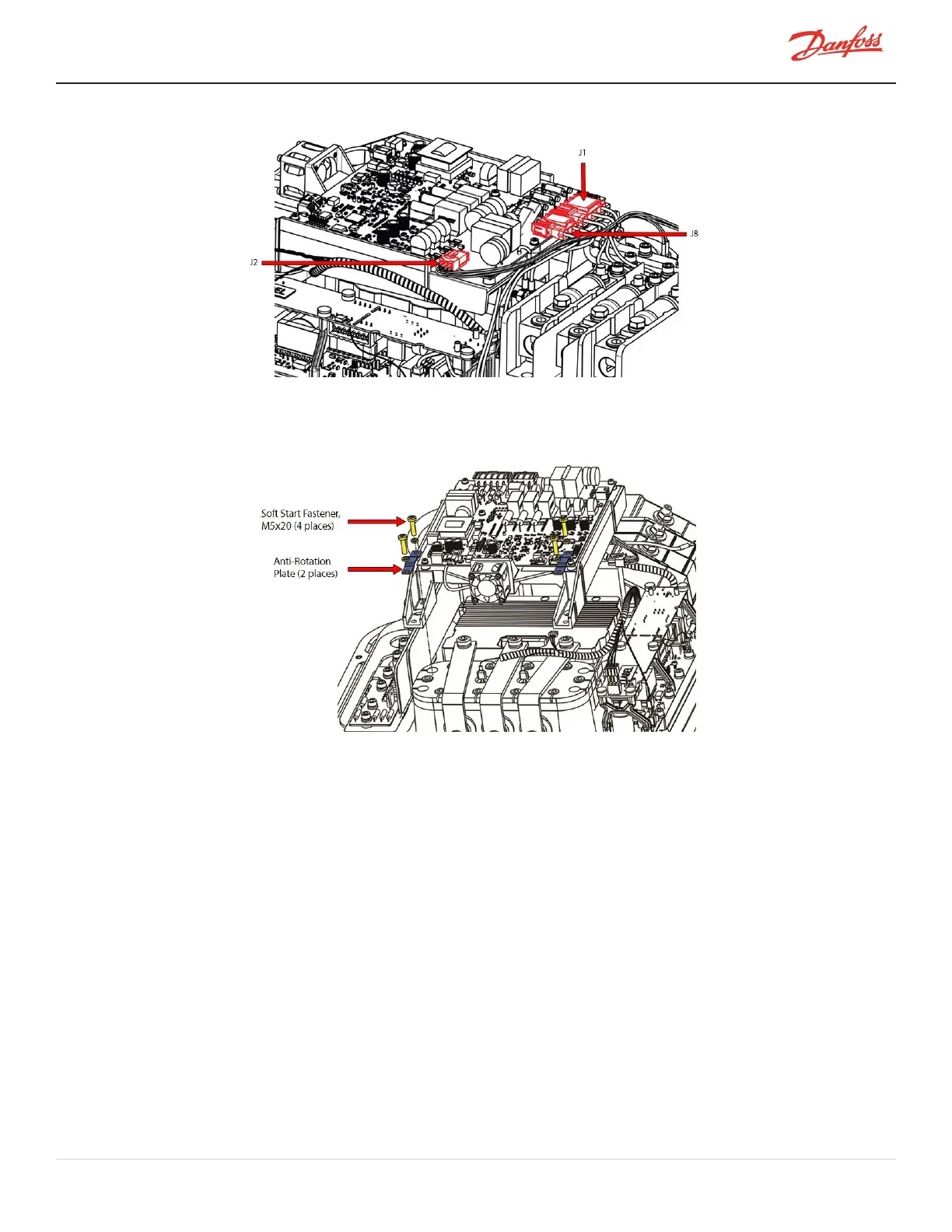

Figure 4-106 Open-Top Soft Start Connector Removal
5. RemovetheM5x20fastenersthatsecuretheSoftStartmountingbrackettothecompressor.Referto
Figure4-107Open-TopSoftStartRemoval.
Figure 4-107 Open-Top Soft Start Removal
6. RemovetheSoftStartassemblyandplaceitinasafelocation.
4.14.6 Soft Start Installation (Closed-Top)
1. PlacetheSoftStartovertheACBusBars(boardsideup)withthefantowardtheIGV.
2. InstallconnectorsJ1,J7,andJ8.
3. FliptheSoftStartoverandplaceintomountingposition.
4. Fingertightenthefastenersandthentorqueto5Nm(44in.lb.).RefertoFigure4-108Closed-Top-Soft
StartInstallationonpage122.

M-SV-001-EN Rev. H-1/23/2023 Page 121 of 294
