Danfoss TTS300 User Manual

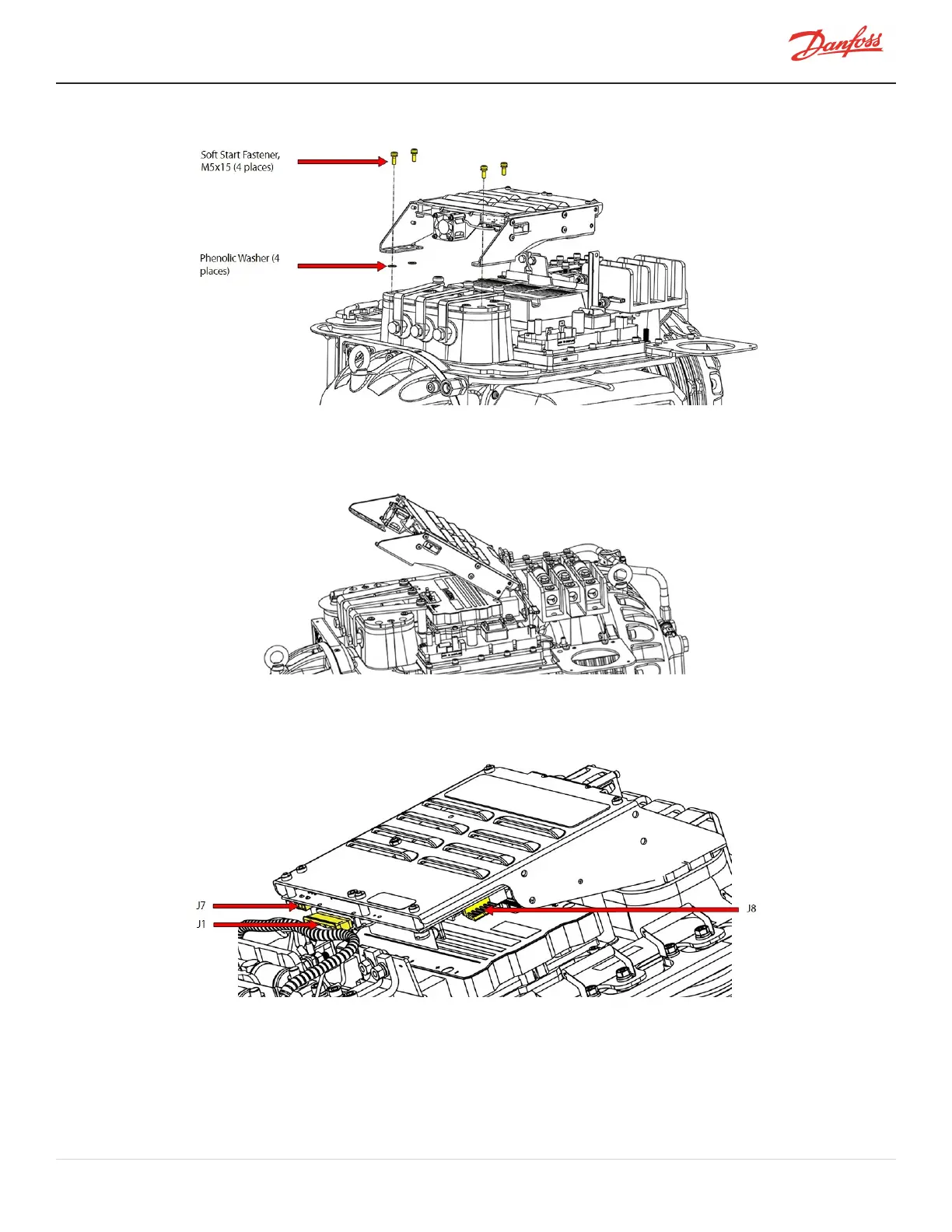

Figure 4-101 Closed-Top Soft Start
5. LifttheSoftStartandturnitover,placingitboard-sideupontheACBusBars.RefertoFigure4-102
SoftStartLift.
Figure 4-102 Soft Start Lift
6. UnplugcableconnectorsJ1,J7,andJ8fromtheSoftStart.RefertoFigure4-103Closed-TopSoftStart
ConnectorRemoval.
Figure 4-103 Closed-Top Soft Start Connector Removal
7. RemovetheSoftStartassemblyandplaceitinasafelocation.
4.14.5 Soft Start Removal (Open-Top)
1. IsolatethecompressorpowerasdescribedinSection1.8ElectricalIsolationonpage22.
2. RemovetheSoftStartTemperatureHarness.RefertoFigure4-104Open-TopSoftStartJ7Connector.
M-SV-001-EN Rev. H-1/23/2023 Page 119 of 294
