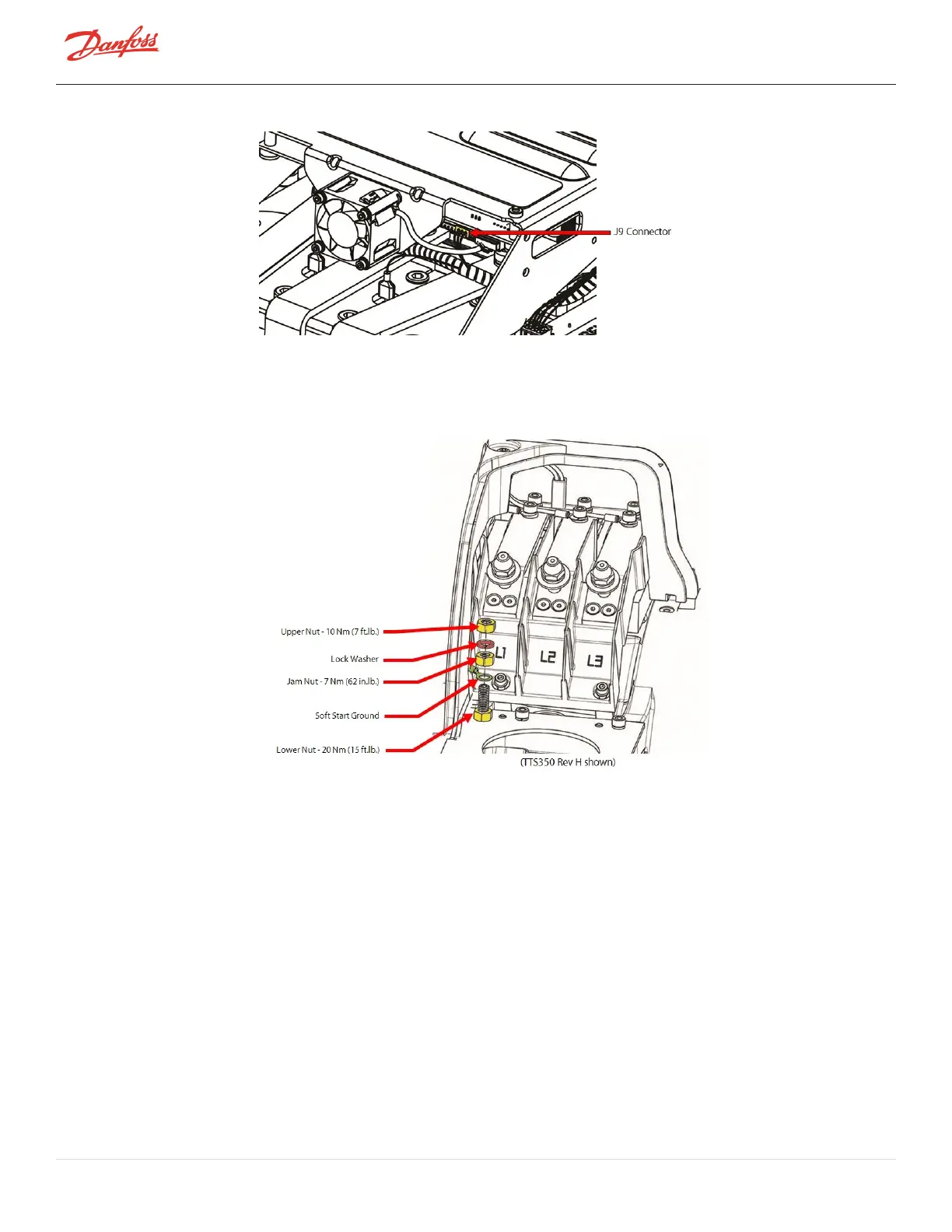

Figure 4-99 Closed-Top Soft Start J9 Connector
3. DisconnecttheSoftStartgroundwirebyremovingthenutandmainsinputgroundwirefromthe
groundpostonthecompressorhousingatthe3-phaseconnectionpoint.RefertoFigure4-100
GroundLocation.
Figure 4-100 Ground Location
4. RemovetheM5x15fastenersthatsecuretheSoftStartmountingbrackettothecompressor.Referto
Figure4-101Closed-TopSoftStartonpage119.

Page 118 of 294 - M-SV-001-EN Rev. H 1/23/2023
