Chapter 4.0 Component Identification
Thissectionidentifiesthemajorpartsofthecompressor.

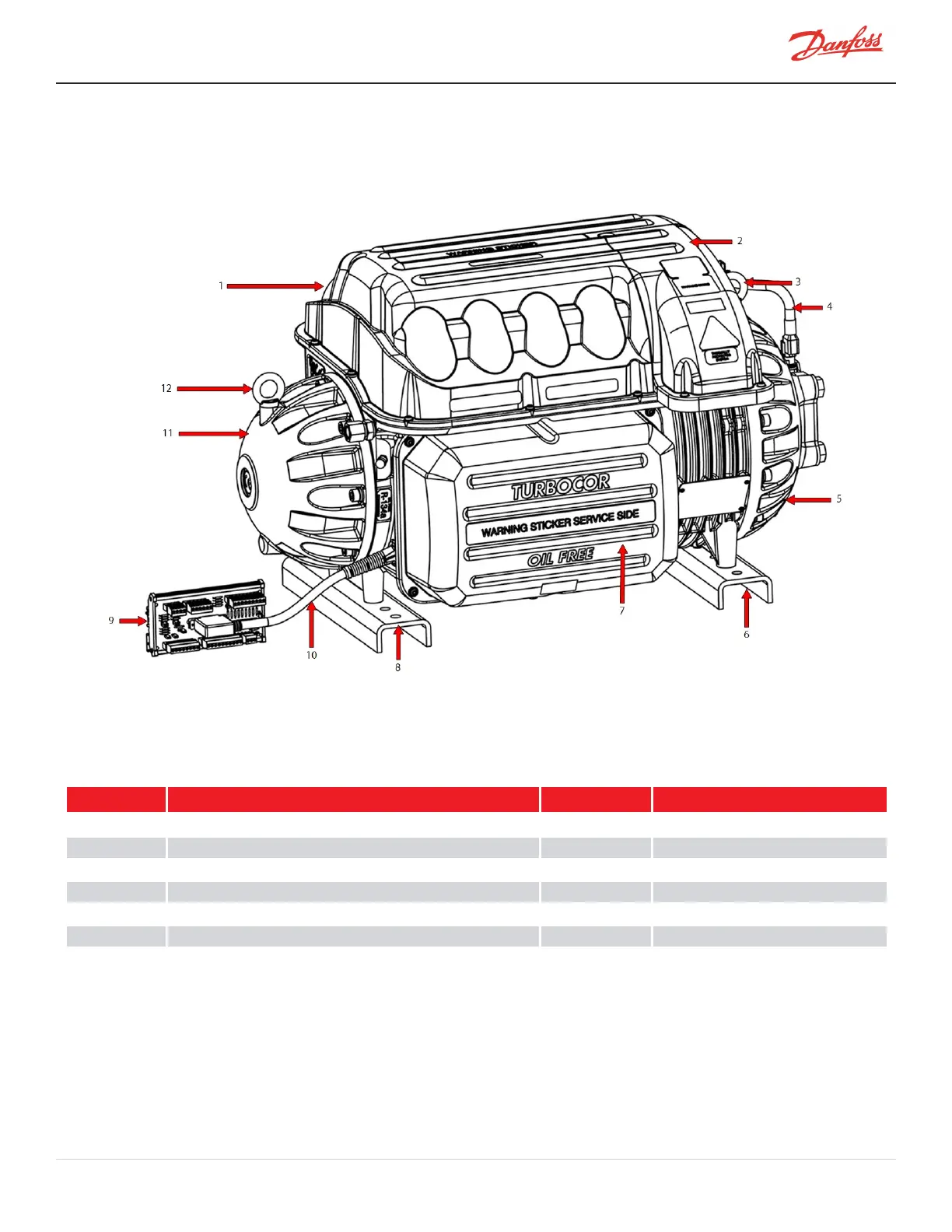

Figure 4-1 Compressor Components Identification (Covers On)


Table 4-1 Compressor Components (Covers On)
No. Component No. Component
1 TopCover
7
ServiceSideCover
2 MainsInputCover 8 RearSupportBase
3 LiftAnchor(Front) 9 CompressorI/OBoard
4 CompressorControllerCableHarness 10 CompressorI/OCable
5 IGVHousing 11 EndCap
6 FrontSupportBase 12 LiftAnchor(Rear)



