Danfoss TTS300

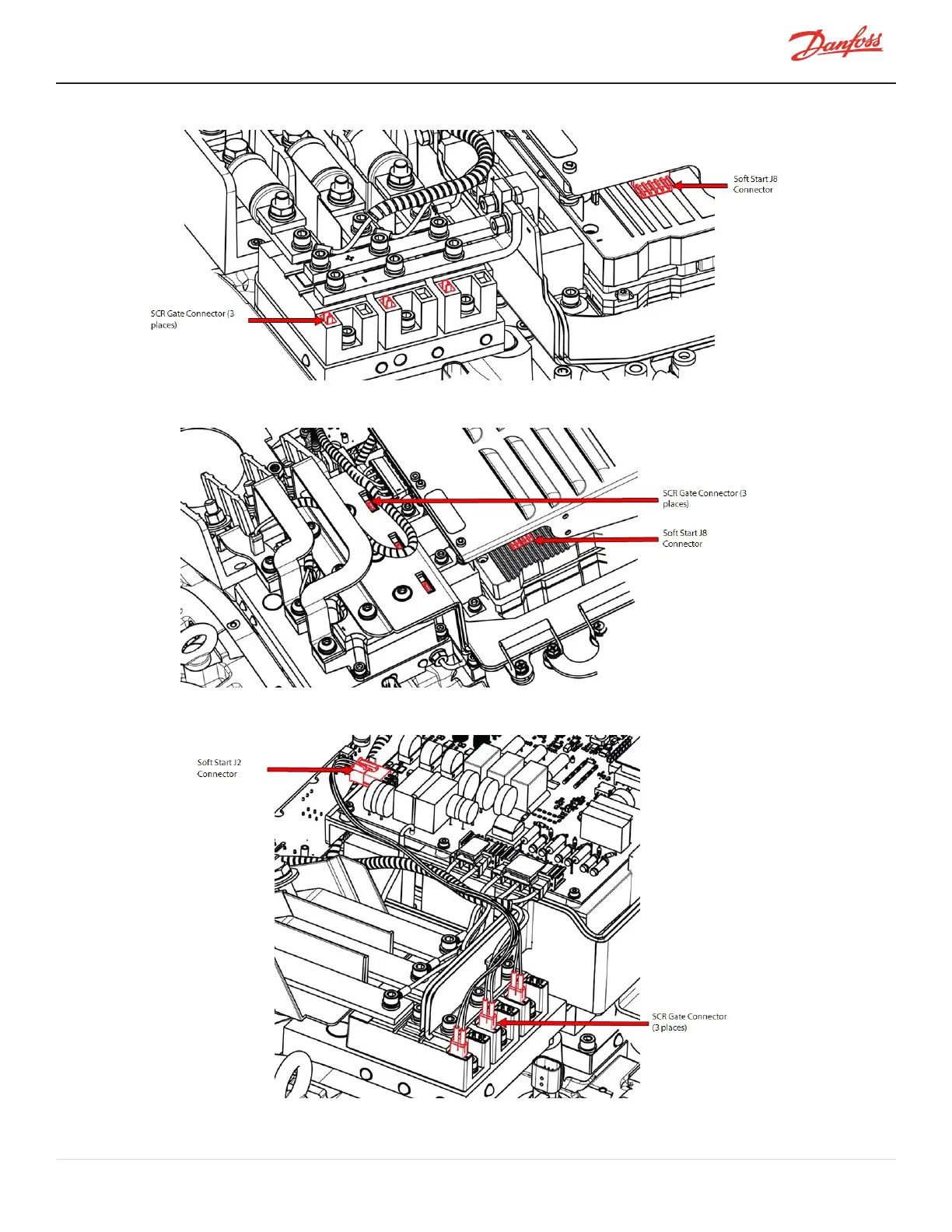

Figure 4-120 Soft Start SCR Gate Cable Removal - TTS300/TGS230
Figure 4-121 Soft Start SCR Gate Cable Removal at SCR - TTS/TGS/TTH/TGH Models Rev. F and Earlier (Except TTS300/TGS230)
Figure 4-122 Soft Start SCR Gate Cable Removal at SCR - TTS/TGS/TTH/TGH Models Rev. H (Except TTS300/TGS230)

M-SV-001-EN Rev. H-1/23/2023 Page 129 of 294
