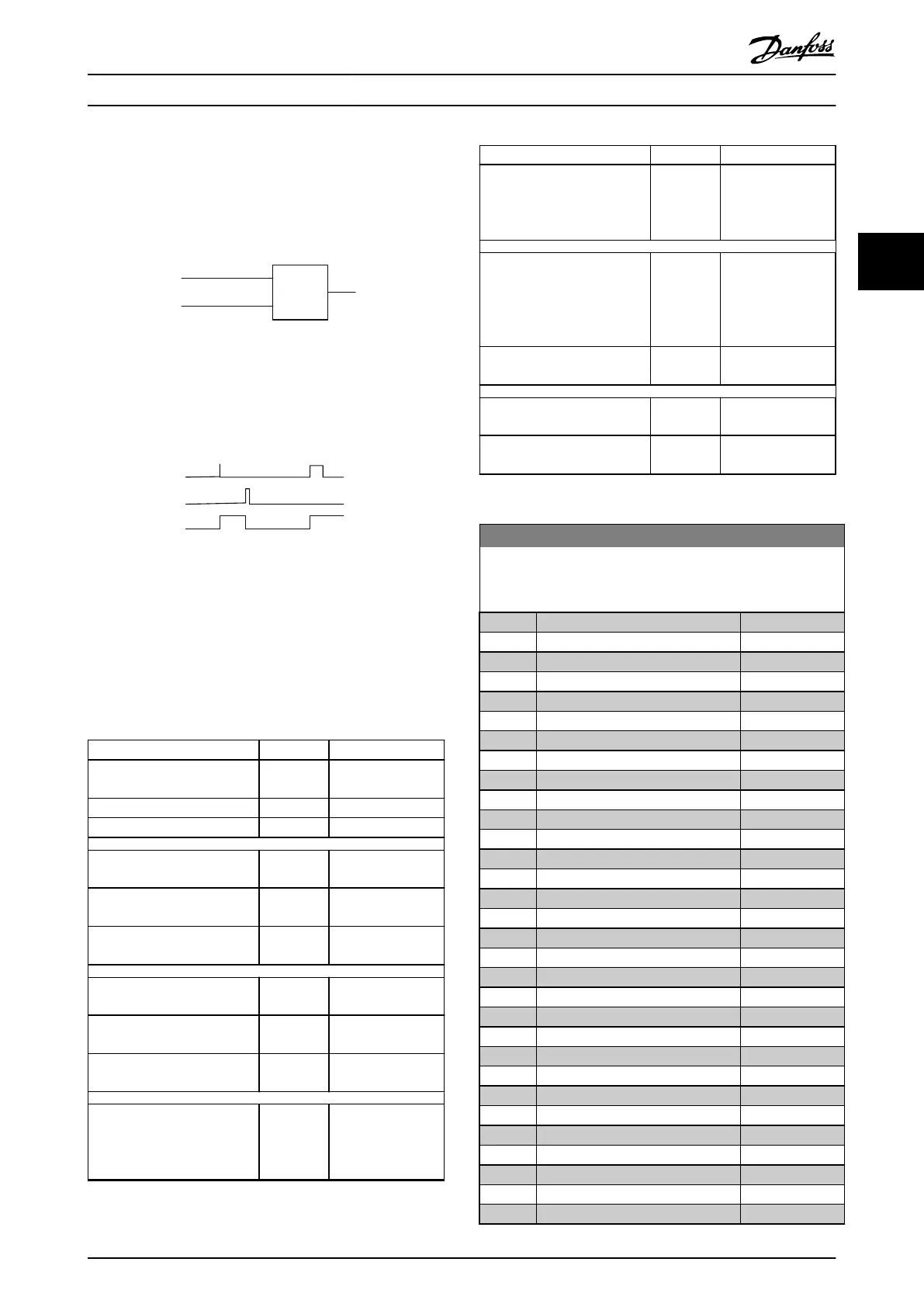

3.12.3 RS Flip Flops
The reset/set ip ops hold the signal until set/reset.
Par. 13-15
RS-FF Operand S
Par. 13-16
RS-FF Operand R
130BB959.10
Illustration 3.42 Reset/Set Flip Flops
2 parameters are used, and the output can be used in the
logic rules and as events.
R
S
Flip Flop Output
130BB960.10
Illustration 3.43 Flip Flop Outputs
The 2 operators can be selected from a long list. As a
special case, the same digital input can be used as both
set and reset, making it possible to use the same digital
input as start/stop. The following settings can be used to
set up the same digital input (for example, DI32) as start/
stop.
Parameter Setting Notes
Parameter 13-00 SL Controller
Mode
On –
Parameter 13-01 Start Event True –
Parameter 13-02 Stop Event False –
Parameter 13-40 Logic Rule
Boolean 1 [0]
[37] Digital
Input DI32
–
Parameter 13-42 Logic Rule
Boolean 2 [0]
[2] Running –
Parameter 13-41 Logic Rule
Operator 1 [0]
[3] AND
NOT
–
Parameter 13-40 Logic Rule
Boolean 1 [1]
[37] Digital
Input DI32
–
Parameter 13-42 Logic Rule
Boolean 2 [1]
[2] Running –
Parameter 13-41 Logic Rule
Operator 1 [1]
[1] AND –
Parameter 13-15 RS-FF Operand
S [0]
[26] Logic
rule 0
Output from
parameter 13-41 Log
ic Rule Operator 1
[0].
Parameter Setting Notes
Parameter 13-16 RS-FF Operand
R [0]
[27] Logic
rule 1
Output from
parameter 13-41 Log
ic Rule Operator 1
[1].
Parameter 13-51 SL Controller
Event [0]
[94] RS
Flipop 0
Output from
parameter 13-15 RS-
FF Operand S and
parameter 13-16 RS-
FF Operand R.
Parameter 13-52 SL Controller
Action [0]
[22] Run –
Parameter 13-51 SL Controller
Event [1]
[27] Logic
rule 1
–
Parameter 13-52 SL Controller
Action [1]
[24] Stop –
Table 3.21 Operators
13-15 RS-FF Operand S
Array [8]
Select the set input.
Option: Function:
[0] False
[1] True
[2] Running
[3] In range
[4] On reference
[5] Torque limit
[6] Current Limit
[7] Out of current range
[8] Below I low
[9] Above I high
[10] Out of speed range
[11] Below speed low
[12] Above speed high
[13] Out of feedb. range
[14] Below feedb. low
[15] Above feedb. high
[16] Thermal warning
[17] Mains out of range
[18] Reversing
[19] Warning
[20] Alarm (trip)
[21] Alarm (trip lock)
[22] Comparator 0
[23] Comparator 1
[24] Comparator 2
[25] Comparator 3
[26] Logic rule 0
[27] Logic rule 1
[28] Logic rule 2
[29] Logic rule 3
[30] SL Time-out 0
Parameter Description Programming Guide
MG20OB02 Danfoss A/S © 05/2018 All rights reserved. 119
3 3
