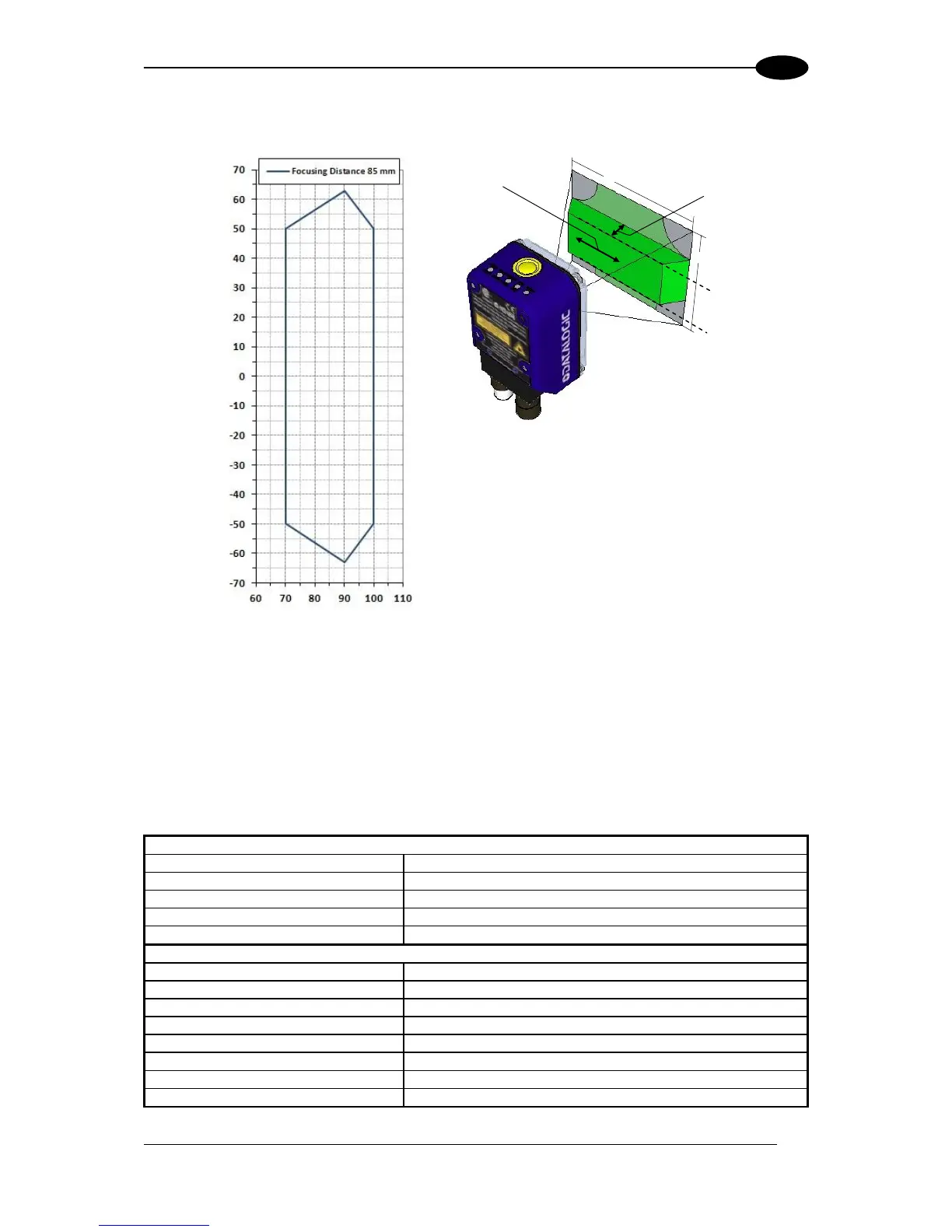

READING FEATURES
91
6
Data Matrix 0.25 mm (10 mils)
CONDITIONS:
Hardware Settings
Code Symbology
Data Matrix ECC 200
Code Resolution
0.25 mm (10 mils)
Tilt Angle
45°
Skew Angle
10°
Focusing Distance (mm)
85
Software Parameters
411-xxx RED Wide
Exposure Time (µs)
170
Gain
4
Illuminator Lighting Mode
Very High Power Strobed
481-xxx MLT-DPM
Exposure Time (µs)
170
Gain
6
Illuminator Lighting Mode
Very High Power Strobed
Horizontal Reading Width
in
2.5 3 3.5 4
0
.5
1
-.5
-1
1.5
-1.5
-2
mm
Reading Distance
2.5
2
-2.5
+20
-20
-0.8
+0.8
in
mm
Horizontal
Reading Width
Max FOV
H
Max FOV
V
Reading Distance
Due to the "fisheye" effect of the wide angle
6 mm lens, the reading area for higher
resolution codes is limited to the central zone
of the Vertical Field of View.
For these applications, window cropping is
recommended above and below the central
zone of the Vertical FOV, limiting image
acquisition to the effective reading area and
therefore increasing frame rate and reducing
overall image processing time. See par. 7.5.8.
± 20 mm = 512 pixels
Region of Interest Top = 255
Region of Interest Bottom = 767
