Data Matrix 0.38 mm (15 mils)
CONDITIONS:
Hardware Settings
Code Symbology
Data Matrix ECC 200
Code Resolution
0.38 mm (15 mils)
Tilt Angle
45°
Skew Angle
10°
Focusing Distance (mm)
90
Software Parameters
411-xxx RED Wide
Exposure Time (µs)
80
Gain
8
Illuminator Lighting Mode
Very High Power Strobed
481-xxx MLT-DPM
Exposure Time (µs)
80
Gain
12
Illuminator Lighting Mode
Very High Power Strobed

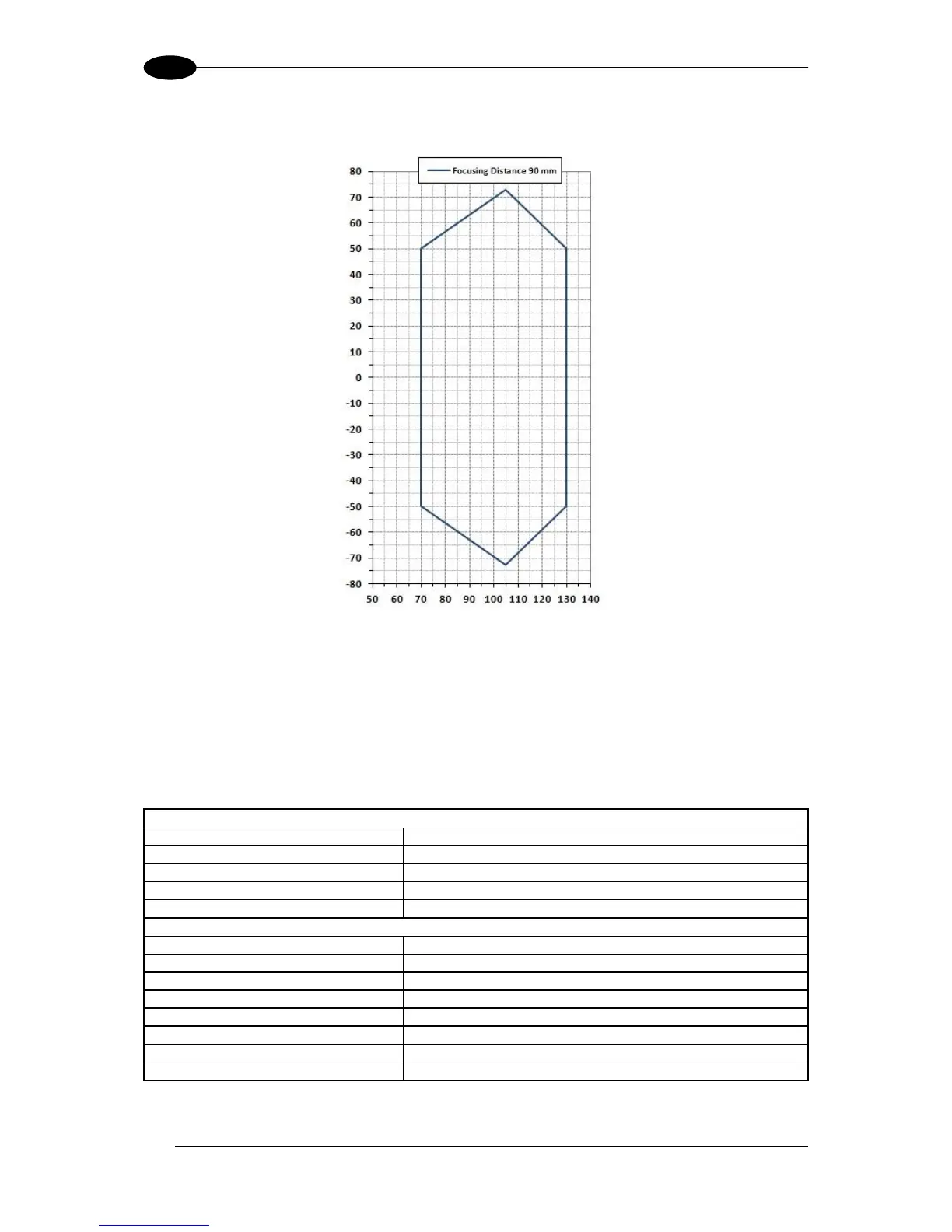

Horizontal Reading Width
in
2 3 4 5 6
0
1
-1
-2
mm
Reading Distance
3
2
-3
