If the Backup and Restore function is not required, then a QL300 or QL500 can be used to
connect the master reader.

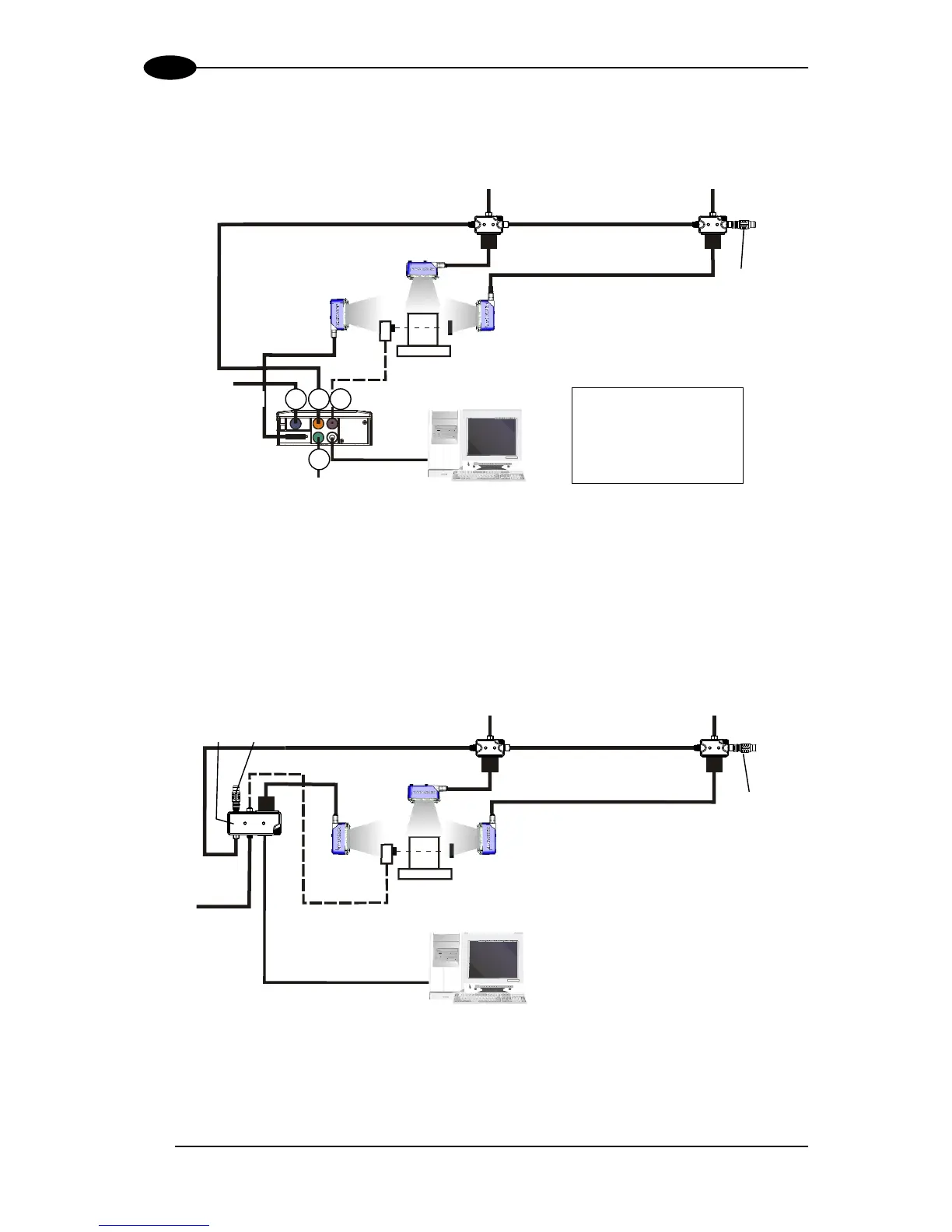

Figure 63 - ID-NET™ Synchronized Layout
Matrix 300™ Master with CBX500 + Matrix 300™ Slaves with QL150
Figure 64 - ID-NET™ Synchronized Layout
Matrix 300™ Master with QL300 + Matrix 300™ Slaves with QL150
The ID-NET network must be terminated inserting an
ID-NET terminator into the QL300 (Master) and into the
last QL in the network.
The ID-NET network must be terminated through the
internal switch of the CBX500 and inserting an ID-NET
terminator into the last QL in the network.
