TYPICAL LAYOUTS

The same configuration can be made to a Host using a TCP/IP Ethernet interface. In this

case the Master is connected to a CBX500 with BM200/210 Host Interface Module installed.

The TCP/IP Ethernet, auxiliary, and ID-NET™ interfaces are connected as shown in the

figure below.

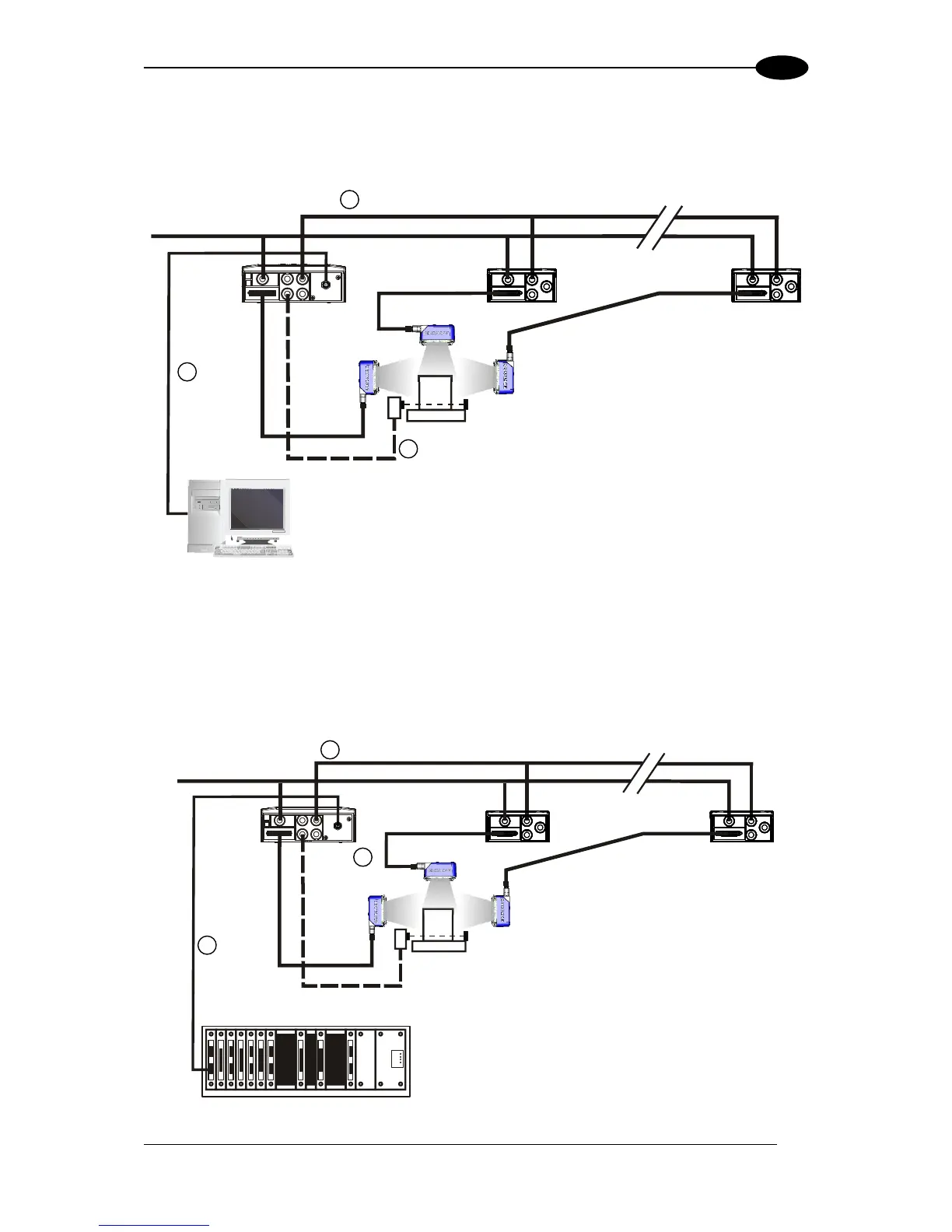

Figure 65 – ID-NET™ M/S Synchronized Layout with BM200/210 TCP/IP Ethernet Interface to Host

Alternatively, the Master reader can communicate to the Host as a Slave node on a Fieldbus

network. This requires using an accessory Fieldbus interface board installed inside the

CBX500 connection box.

System configuration can be accomplished through the Auxiliary interface of each individual

reader (internal CBX500 9-pin connector) using the VisiSet™ configuration program or Host

Mode programming. See par. 2.3.1 for details.

Figure 66 – ID-NET™ Fieldbus M/S Synchronized Layout

 BM2x0 TCP/IP Ethernet Interface

 External Trigger

 ID-NET™ (up to 16 devices - practical limit)

Host

Master

Slave#1

Slave#n

Power

CBX500

 Fieldbus Interface

 External Trigger (for One Shot or Phase Mode)
