Datamax H Class User Manual

8
Notes:

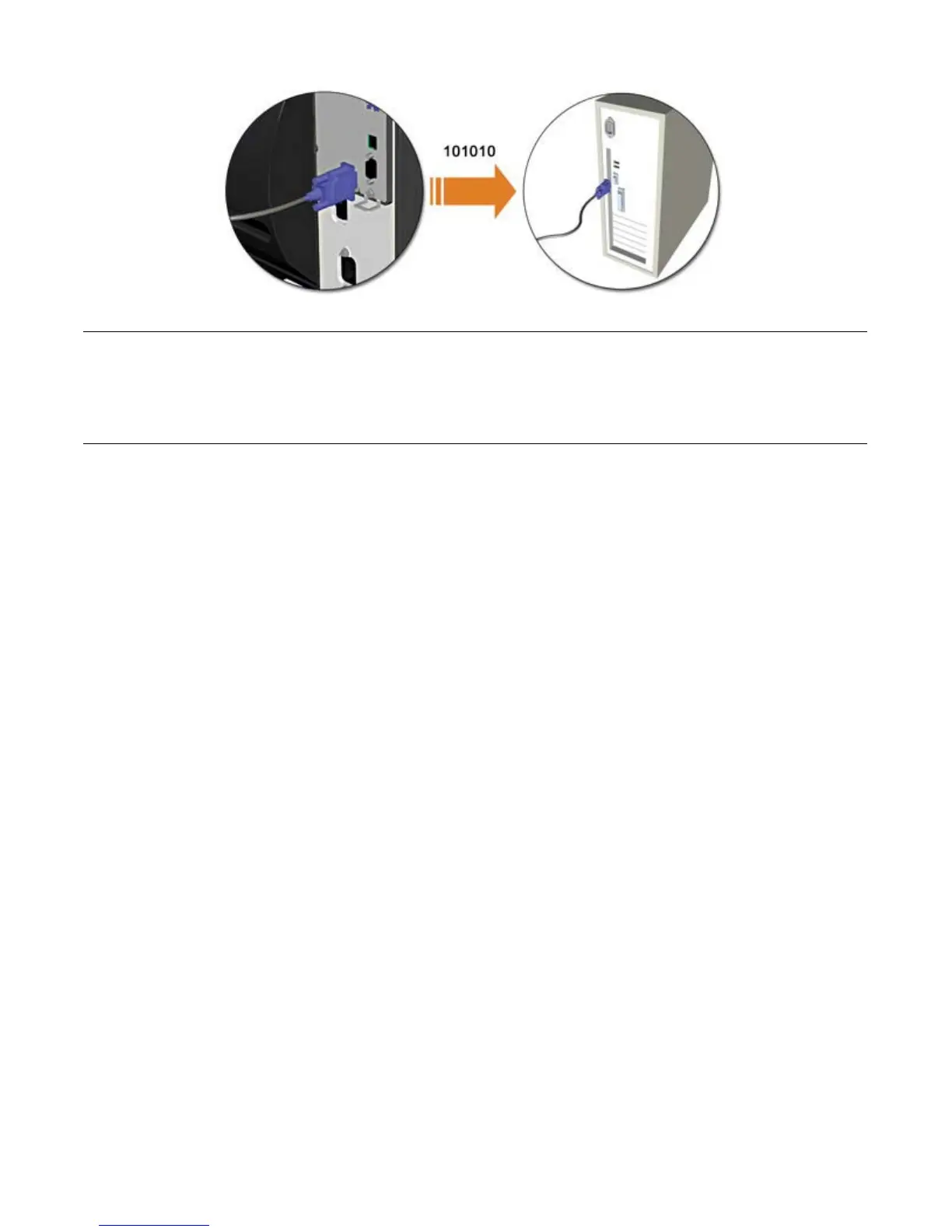

(1) An "off the shelf" serial cable can be used with Xon/Xoff handshaking.
(2) For RS-422/RS-485 operation, a jumper must be moved on the printer's main
board. Click here for details.
Ethernet Connection: The Internal Ethernet Print Server operates under several menu-
selectable modes, as detailed under the NIC ADAPTER section of this manual. Depending on
the length, the cable should be Category / Type 3 or better. When using this interface, refer to
Ethernet Setup for proper cabling, setup, and configuration.

Datamax H Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Interface	Ethernet, Wireless
Media Sensor	Reflective
Media Types	Labels, Tags
Resolution	203 dpi
Media Thickness	0.002 to 0.01 inches (0.05 to 0.25 mm)
