Datamax H Class User Manual

21
Media Loading
Loading Roll Media
Load a roll of media into the printer as follows:

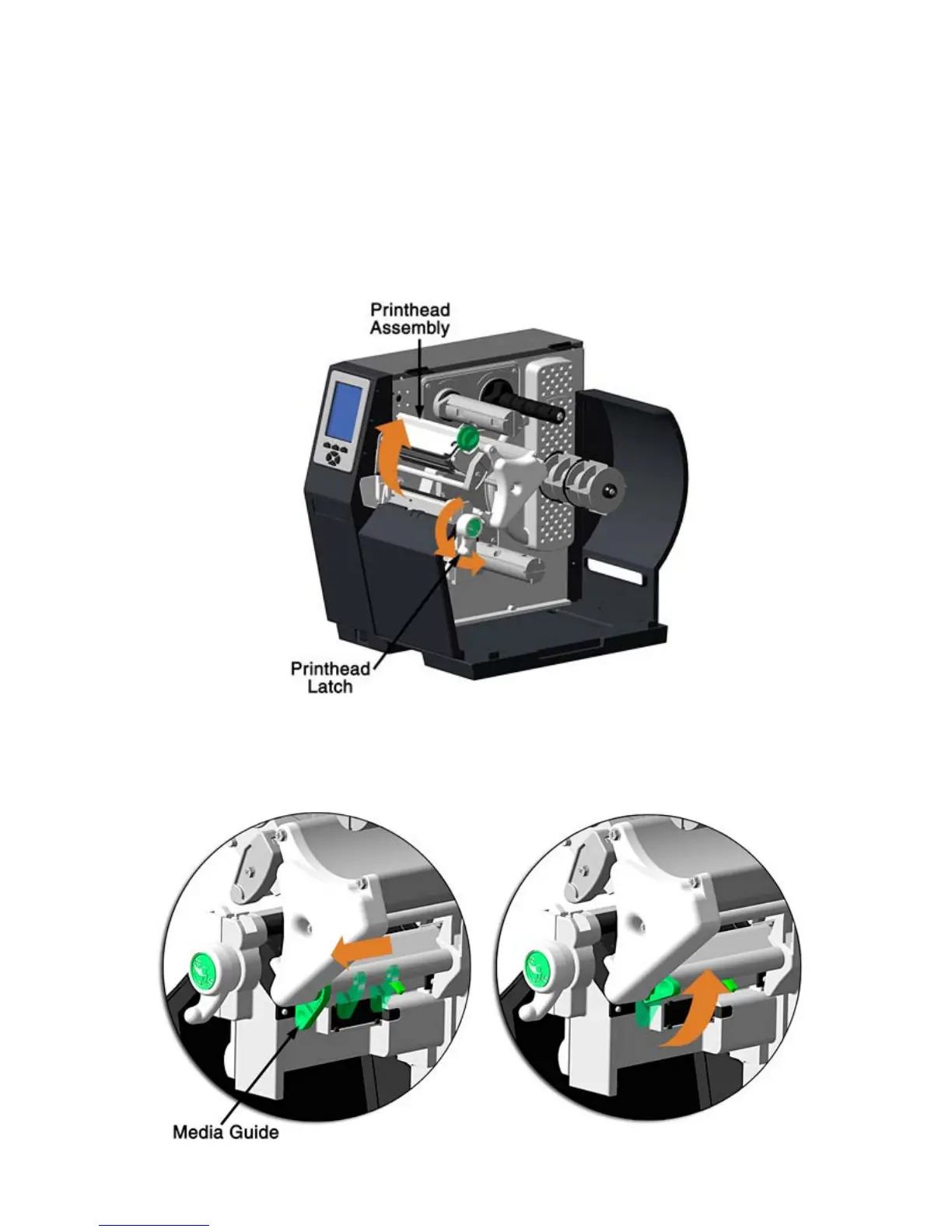

1. Rotate the Printhead Latch in a counterclockwise direction then raise the Printhead
Assembly.
2. Slide the Media Guide toward you (outward), and then rotate the Media Guide
counterclockwise into an UP position.
Slid Outward Rotated Up
