Datamax H Class User Manual

84
Printhead Leveling Adjustment

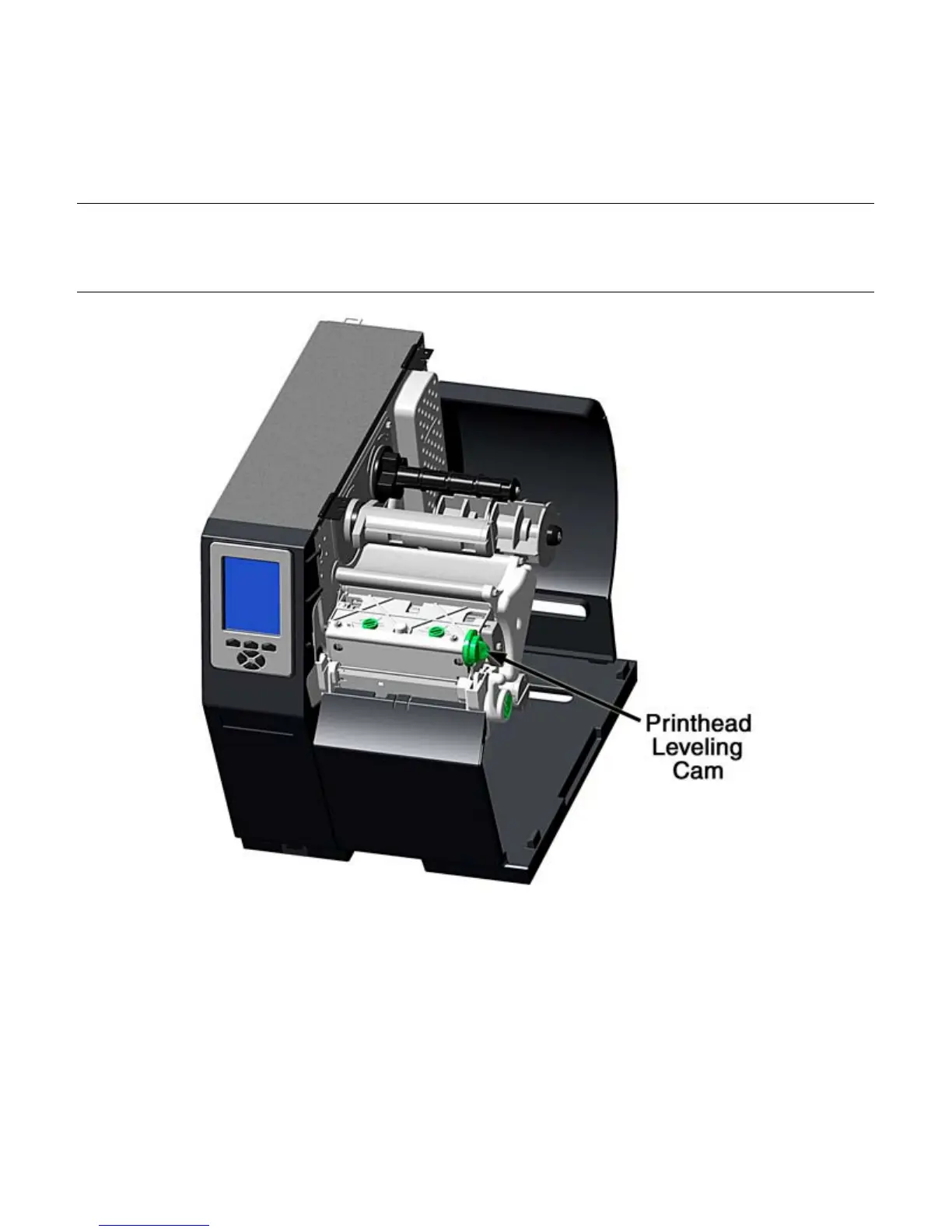

When printing on less than full width media, adjust the Printhead Leveling Cam (shown below)
to evenly distribute the pressure applied to narrow label stock.
Notes:
(1) When changing to a different width of label, always readjust the Leveling Cam.
(2) Under-adjustment of the Leveling Cam can cause problems that include ribbon
wrinkling, label tracking, and excessive platen roller and printhead wear.
Adjust the Printhead Leveling Cam as follows:
1. With the media loaded, download your label format (or generate a format using the Test
Menu) then begin printing a small batch of labels.
