Datamax H Class User Manual

30

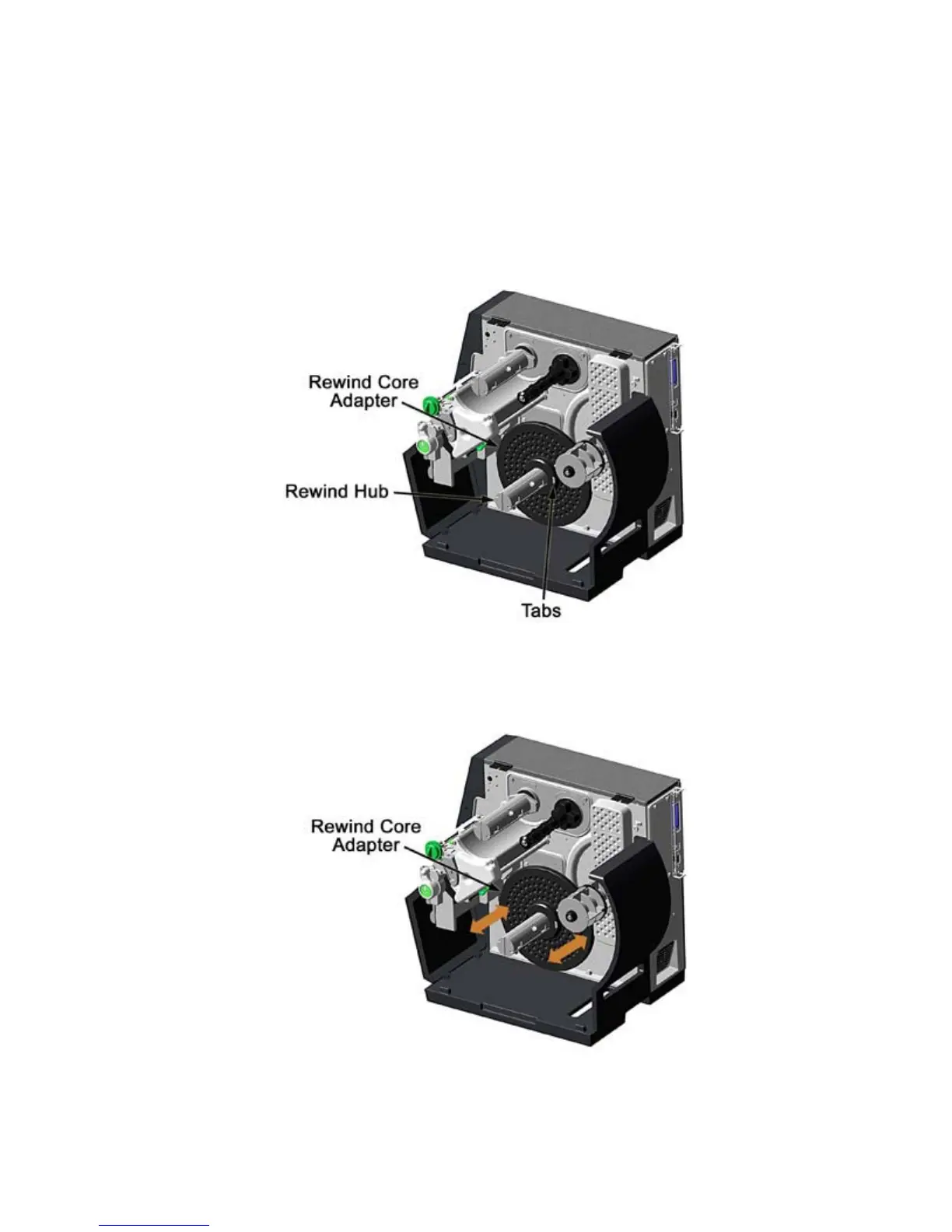

Removing the Adapter Core
To switch from label rewinding to label peeling, you will need to remove the Rewind Adapter
Core, as follows:
1. Remove labels from the Internal Rewinder.
2. Rotate the Rewind Hub so that the Tabs are in a horizontal position, as shown.
3. Using both hands, grasp the Rewind Core Adapter and, with a gentle back-and-forth
rocking motion, pull the Rewind Core Adapter off the Rewind Hub.

Datamax H Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Interface	Ethernet, Wireless
Media Sensor	Reflective
Media Types	Labels, Tags
Resolution	203 dpi
Media Thickness	0.002 to 0.01 inches (0.05 to 0.25 mm)
