Datamax I-Class Mark II Maintenance Manual

14
I-Class Mark II Maintenance Manual Ad
j
ustments and Maintenance
2.2.2 Pressure Adjustment
To maintain print quality across the variety of media types, the printhead pressure is adjustable. This
adjustment should only be performed, however, after attempting improvement using the HEAT and/or PRINT
SPEED settings. Use only the minimum pressure needed, following the steps below:
1. Load 4 inch (102mm) wide media (and ribbon, if needed). Then, disengage the Leveling Cam and latch
the Printhead Assembly.
2. Enter the Quick Test Mode then select 100 Print Quality Labels and press the button to begin
printing.
3. Turn each Pressure Adjustment Cam equally (counterclockwise to increase pressure or clockwise to
decrease it) until even print quality is achieved across the label.

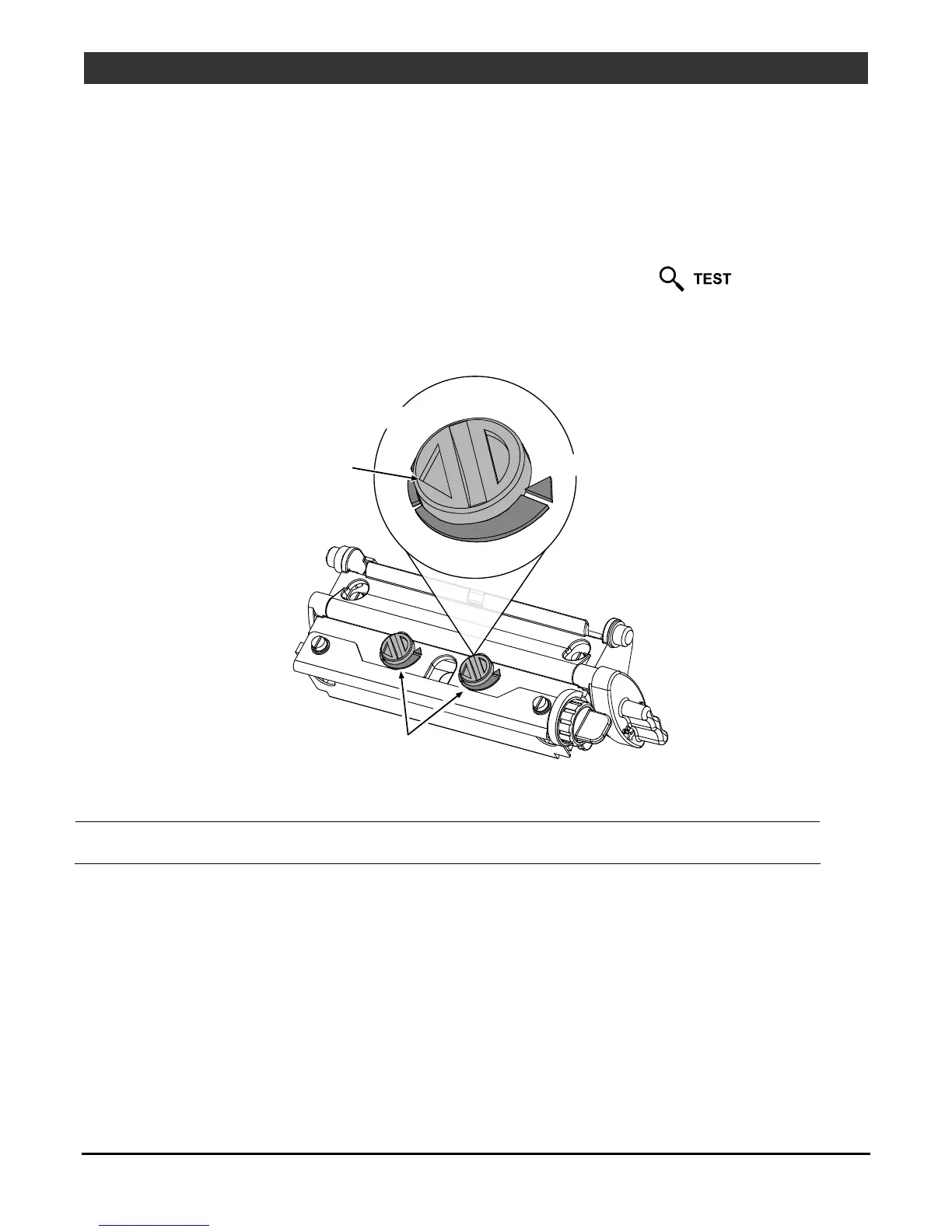

Pressure
Adjustment Cams
Indicator
Minimum
Maximum
 Note: Excessive pressure can cause ribbon wrinkling, tracking problems, and excessive wear on
printer components.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
