I-Class Mark II Maintenance Manual Removal and Replacement
4.7.1 Printhead Assembly Breakdown
Within the Printhead Assembly, there are several serviceable parts and sub-assemblies. The following section
is an overview of the breakdown of the Printhead Assembly, refer to the I-Class Mark II Parts Catalog for
available parts.
Removal:
1. Remove the Printhead Assembly; see Section 4.7.

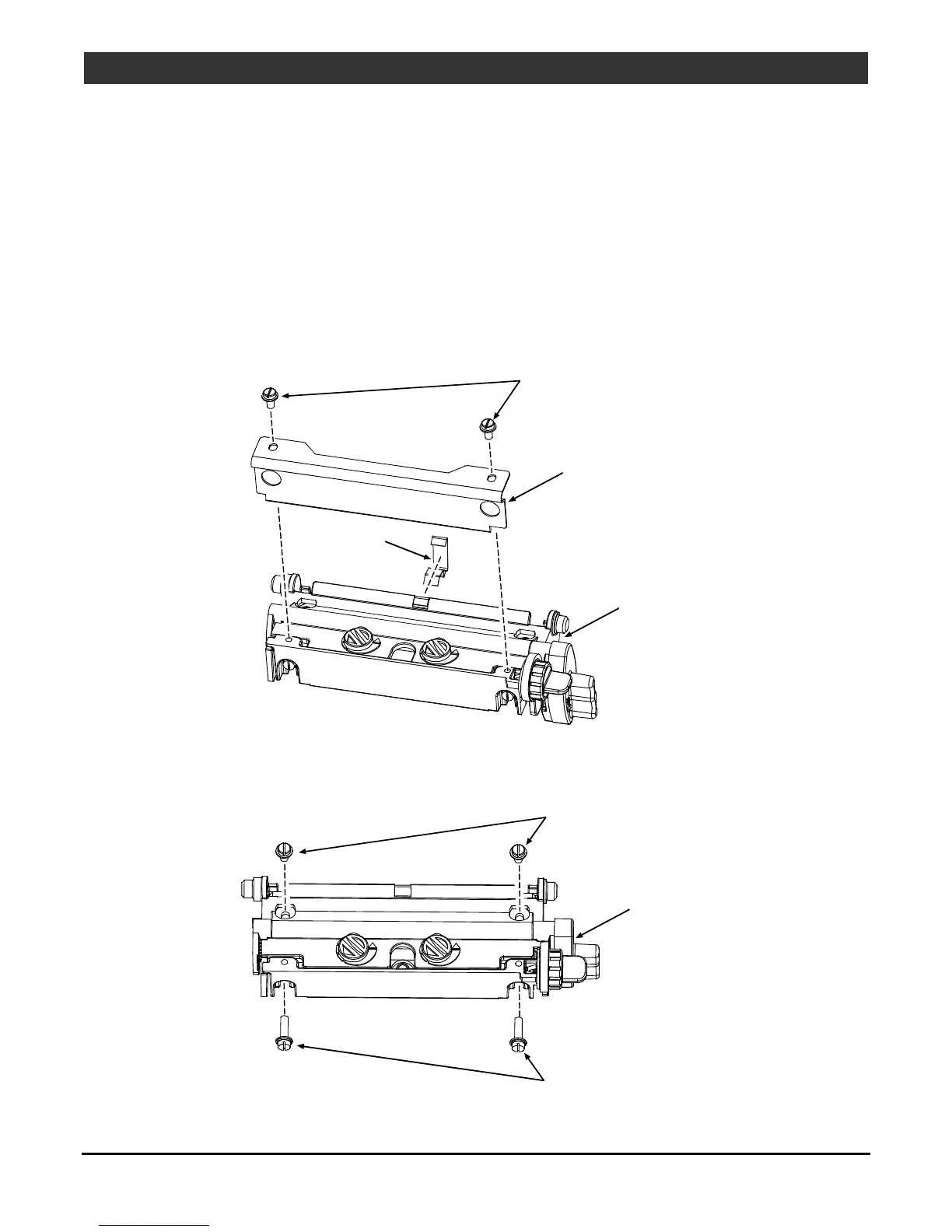

2. Carefully pry the Clip from the Printhead Assembly. Also, remove the two Screws that secure the Ribbon
Shield and then remove it from the Printhead Assembly.
Printhead
Assembly
Ribbon
Shield
Clip
Screws
3. Remove the Locking Screws and the Alignment Screws.
Printhead
Assembly
Alignment
Screws
Locking
Screws

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
