Datamax I-Class Mark II Maintenance Manual

59
I-Class Mark II Maintenance Manual Removal and Replacement
4.10 Fuses
CAUTION
 Only use a replacement fuse with the rating and type as the original fuse; failure to
comply could cause serious damage, including fire.
 Use caution when replacing Fuse F1, as this fuse will only blow during a failure in
the primary switching circuit and may indicate a more serious electrical problem.
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Cover Assembly; see Section 4.1.
3. Remove Fuses F1 and/or F2 from the Power Supply PCB.

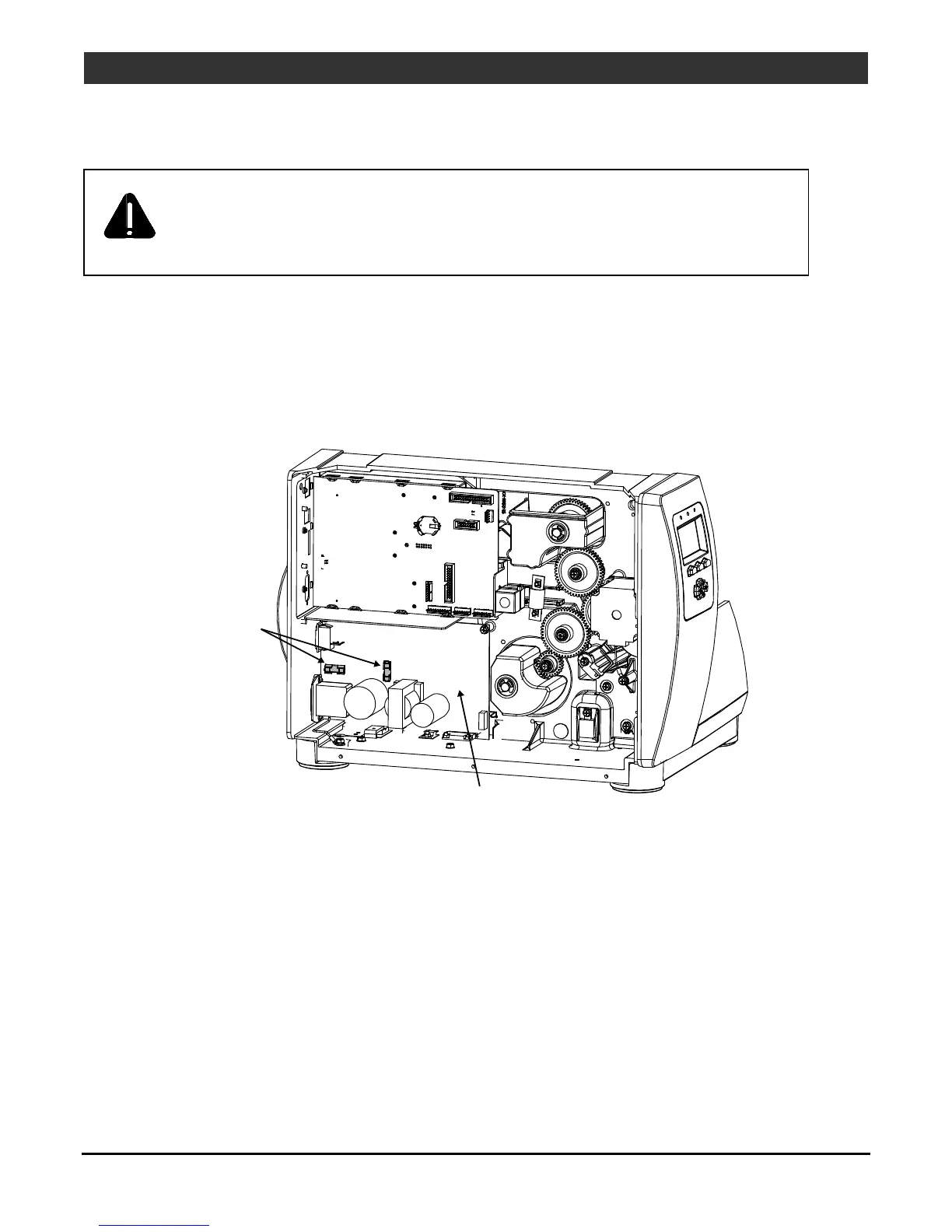

Fuses
Power Supply
PCB
Replacement:
1. Only replace the defective fuse(s) with the same type and rating as the factory original:
• Fuse F1 & F2: Fast acting, 3 amps @ 250 Volts, 5 x 20 mm.
2. Reinstall the Cover Assembly; see Section 4.1.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
