Datamax I-Class Mark II Maintenance Manual

43
I-Class Mark II Maintenance Manual Removal and Replacement
4.0 Introduction
This section details removal and replacement methods for various printer components; where multiple
equipment types or options are available, use the procedure that best matches the configuration.
CAUTION
 Always disconnect AC power before performing service;
 Wear a wrist strap and follow all ESD prevention measures; and,
 Use extreme care and never use sharp objects on the Printhead or Platen.
 Note: The procedures below assume a printer empty of media and ribbon.

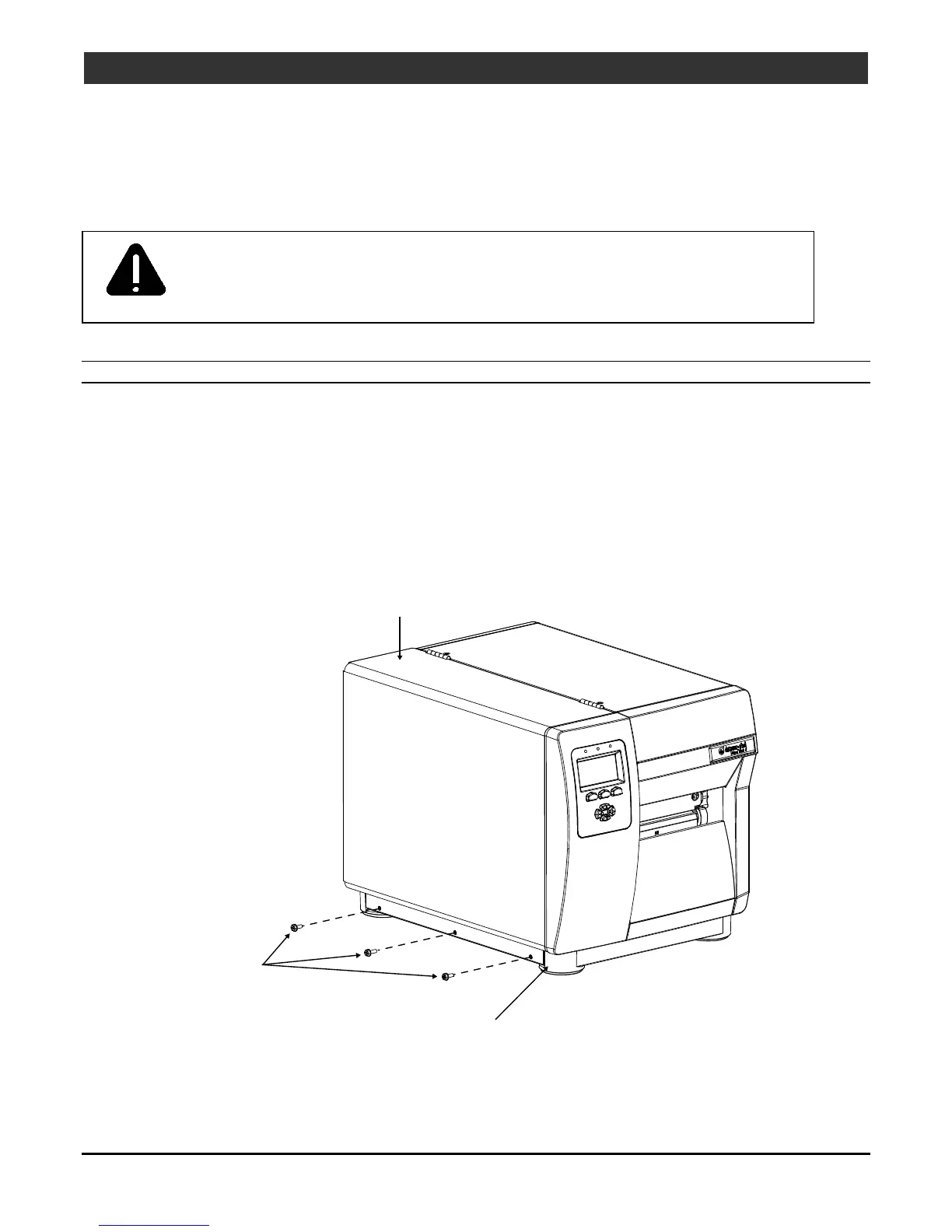

4.1 Cover Assembly
Removal:
1. Turn OFF and unplug the printer.
2. Remove the three Screws that secure the Cover Assembly to the Baseplate.
Cover
A
ssembly
Baseplate
Screws

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
